Description

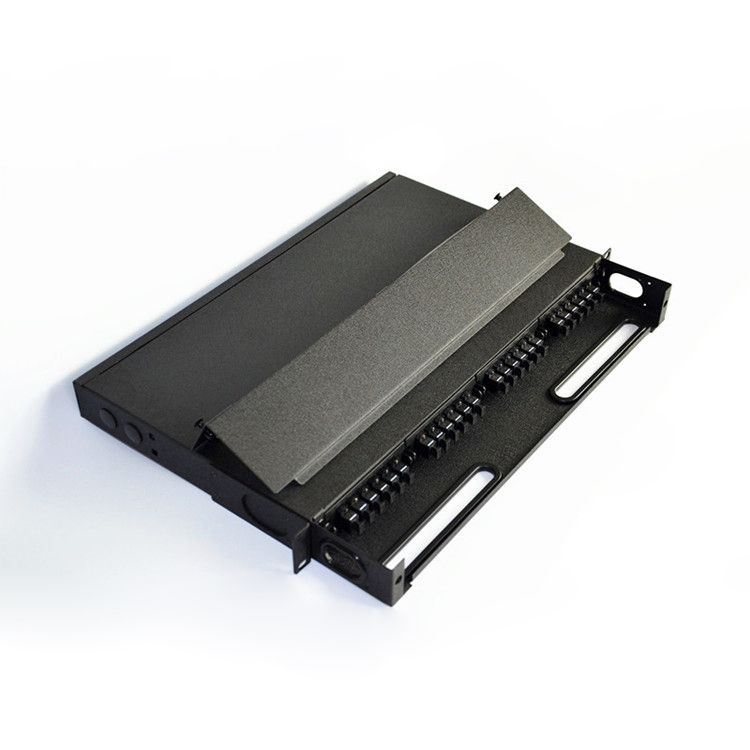

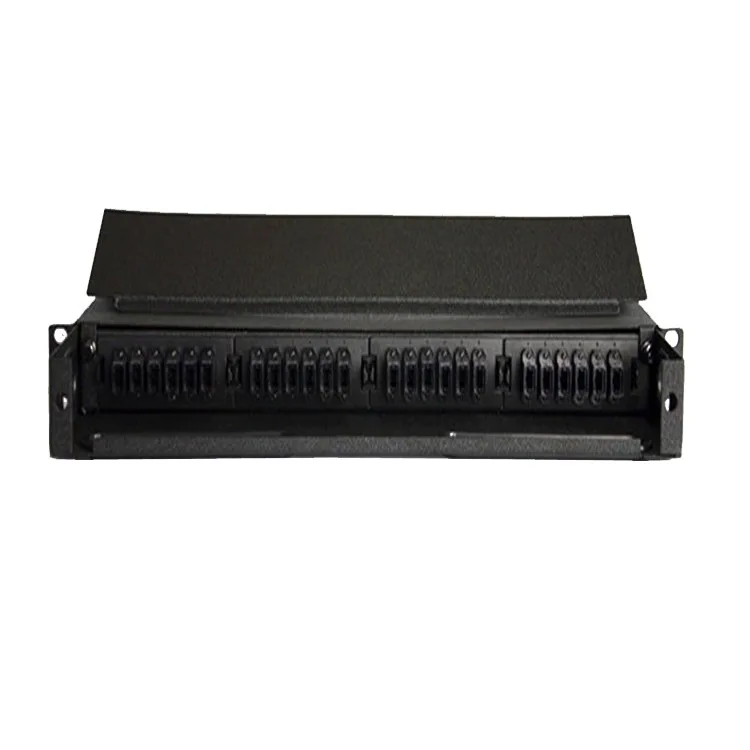

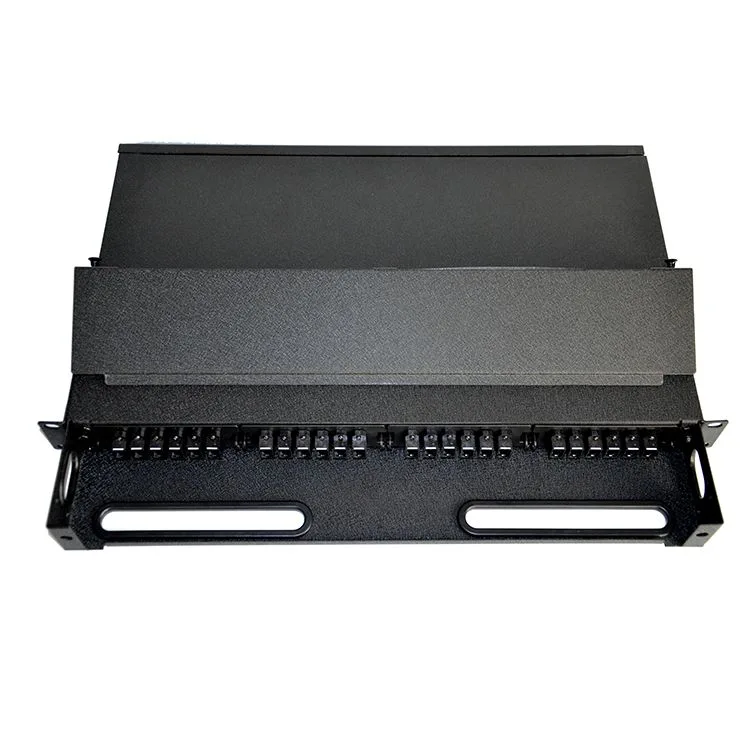

MPO Patch Panel Features
- Could install in 19 inch racks and cabinets, manage MPO adapter plate
- Modular design realizes high port number and improves high density connection capabilities.
- 1U MPO Fiber Optic Patch Panel can accommodate 4pcs of 144cores MPO adapter plates, total 576 fibers maximumcapacity, each MPO adapter connect with 24 fibers MPO connectors.
- Made of premium cold rolled steelSPCC with spraying, black color.
- The steel is processed by degreasing, pickling, rustproof phosphating, cleaning with water, and electrostatic spraying. The thickness of spraying is 80um~100um. European RoHS compliant.
- MPO Patch Panel includes cable management and labels.
- Convenient installation and easy management.
- The density is more than 4 times of traditional splicing patch panels. It saves much room of cabinets, improves use ratio of cabinets, and creates value of data center construction.
- Modular design is easy for upgrade and maintenance.
MPO Patch Panel Application
Machine rooms of data center and intranet

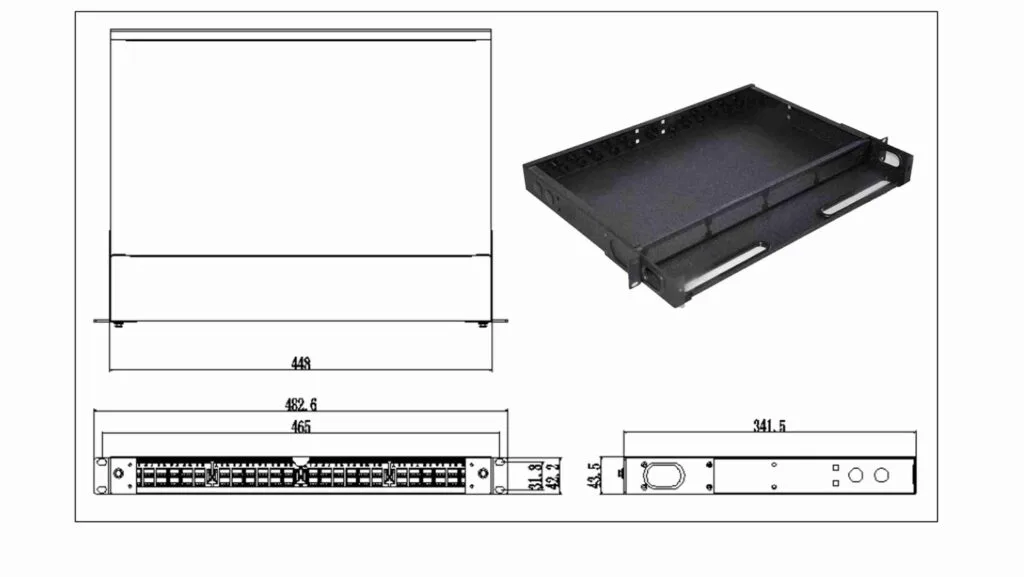

MPO Patch Panel Dimension
L*W*D:482.6*341.5*43.5mm

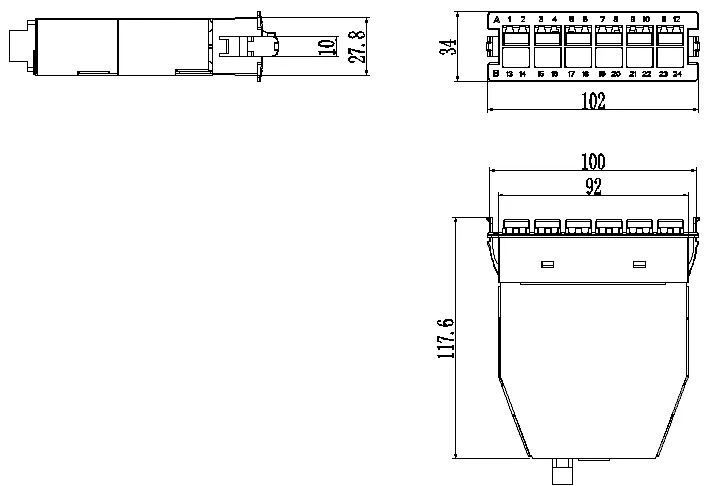

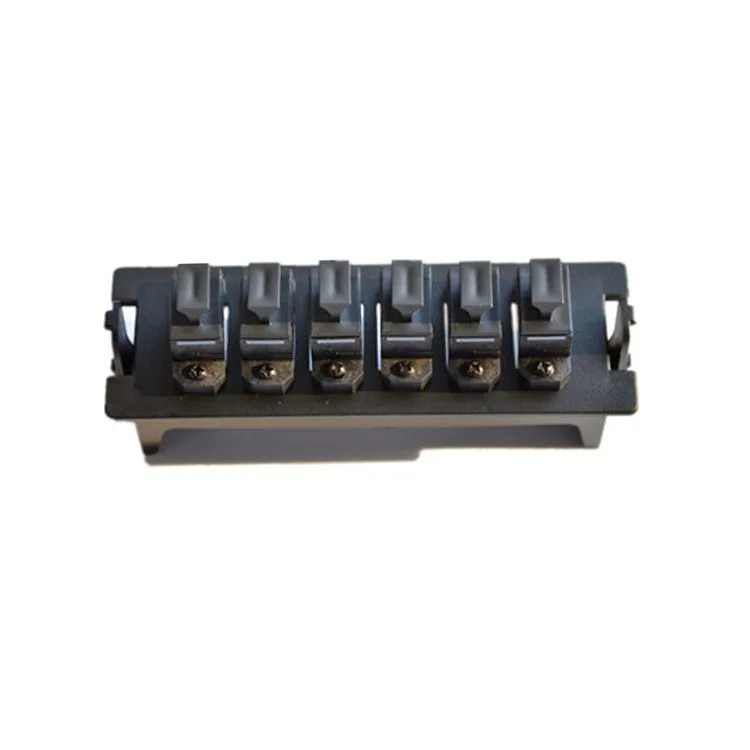

MPO Adapter Plates
The adapter plate both sides clip design, press down the clips to take off or put on it on the patch panel. And the front size is 102*34mm, the same as the MPO cassette, so it can changeable into MPO cassette or MPO blind flange plate if no need such high capacity.
Adapter plate size:102*34mm
Order Information
| Model | Product name | Color | Inner box qty | Carton box qty |
| YD-MPO-1U-576 | MPO 1U optical fiber patch panel | black | 1PC | 5PCS |
