Description

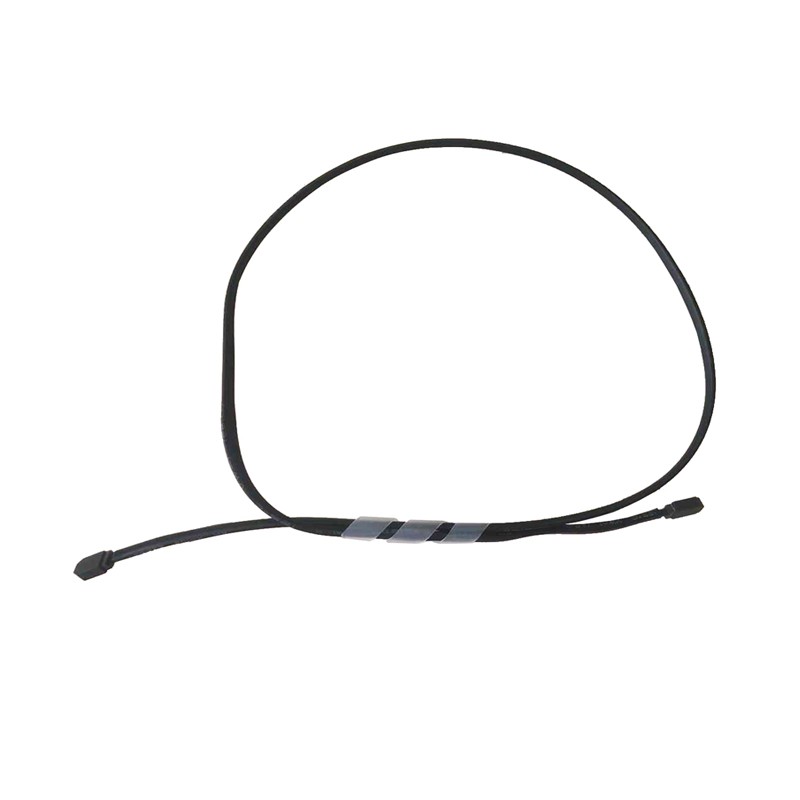

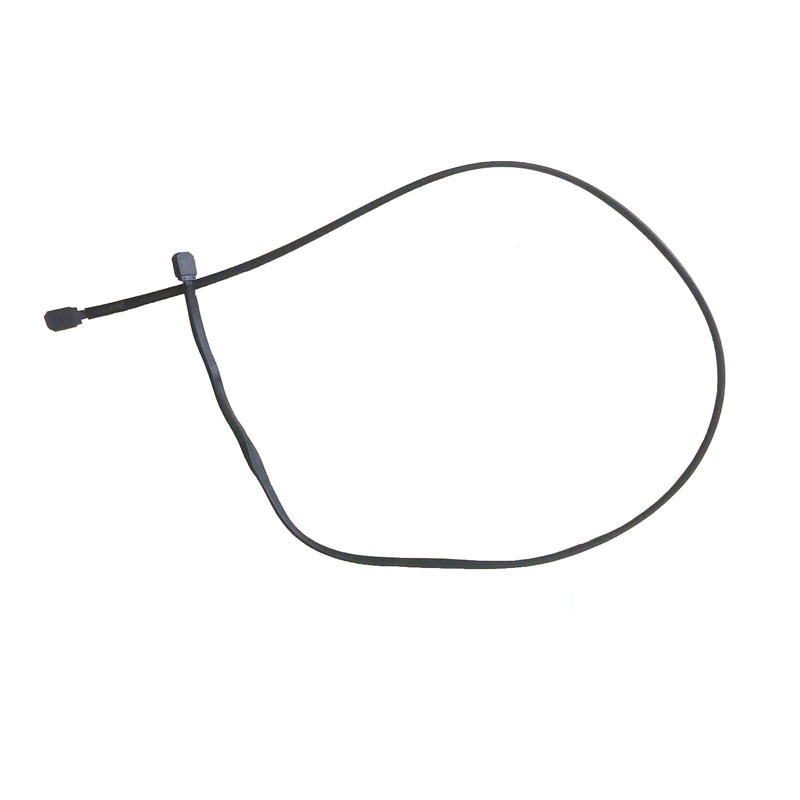

MT to MT Patch Cord Features
- Custom 8 fiber, 12 fiber, 16 fiber, 24 fiber MPO connectors
- Single mode fiber and multimode fiber optional
- Fiber optic cable length can be customize from 30cm, 50cm to 1mts or longer
- Individual package for each patch cord, 100% qualified test before delivery
MT to MT Patch Cord Specification
| Fiber type | Unit | Singlemode | Multimode | ||||
| Insertion loss | dB | Typical:0.35, max. 0.7dB | Typical:0.35, max. 0.6dB | ||||
| Return loss | dB | ≥60 (APC), ≥50 (PC) | |||||
| Connector type | MPO male connecor: with guide pin MPO female connector: guide holes | ||||||
| Durability | dB | ≤0.2, 500 matings | |||||
| Working temperature | ℃ | -40 ~+85 | |||||
| Test wavelength | nm | 1310 | 850 | ||||
| Fiber count | core | 12 | 24 | 48 | 72 | 96 | 144 |
| Breakout length | cm | 30-150 | |||||
| Max. Instlalation tension | N | 500 | 500 | 700 | 700 | 700 | 700 |
| Min. Cable bend radius (static) | mm | 10times x cable outer diameter | |||||
| Min. Cable bend radius (dynamic) | mm | 20times x cable outer diameter | |||||

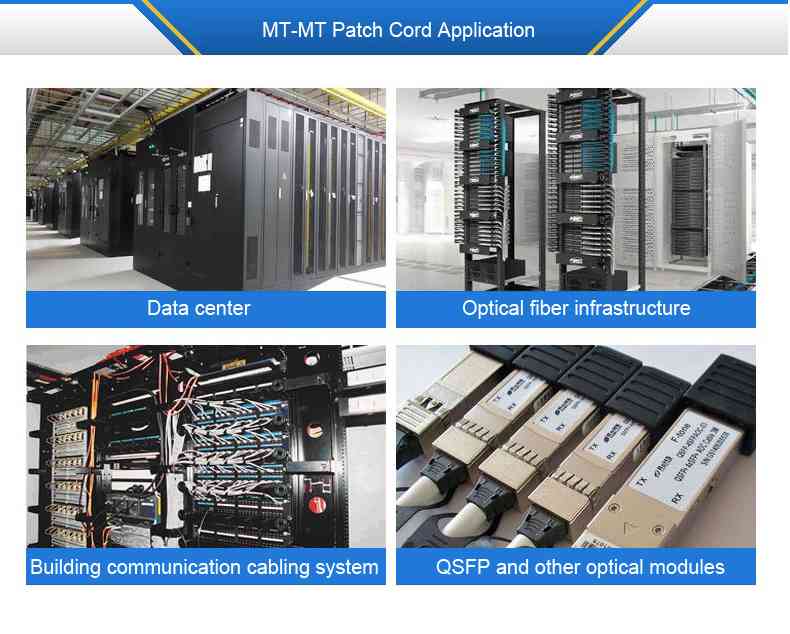

MT to MT Patch Cord Application
- Data center
- Optical fiber infrastructure
- Building communication cabling system
- QSFP and other optical modules
