32 Core Fibre Access Terminal FAT Box in FTTH

Description

Fiber Access Terminal Features

8 Round cable ports, 1mid span in the middle
Industrial standard user interface,max. can hold 48pcs SC
Made of high impact engineering plasticABS+PC
Can accommodate 1×4,1×8 & 1×16,1x32PLC splitter LGX module or adapter panel
Anti-UV, Ultra violet resistant and rainfall resistant
Outdoor wall mount or pole mount, IP65 protection level
Up to 48 FTTH drop cables termination and bring to home

Fiber Access Terminal Specification

Model	OTB-32D
Max. Plc splitter	1pc 1:32/2:32 LGX PLC Splitter
Dimension (WDH)	400310120mm
Max. Capacity	48 cores =2pcs 24F tray
Cable ports	4 round port, 1 mid span
Cable diameter	4: Ø30mm; 2: Ø16mm
Color	Gray
Material	PC/ABS
Waterproof grade	IP65

Fiber Access Terminal Standard Accessory

Heat shrink protection sleeve, metl key, round cable port seal,s wall mounting screws, cable clamps, nylon tie, buffer tube, label mark, etc

Fiber Access Terminal Product Details

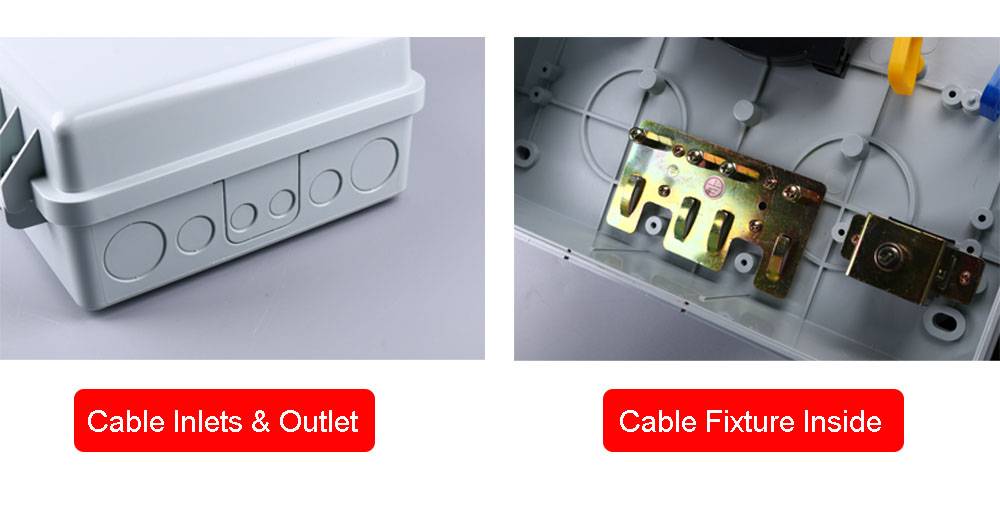

There are total 6 pcs round cable ports for feerder cable go in and out of the fiber nap box, construction worker can fix the cable strength members like aramid yarn, aluminum tape, waterblocking layer, etc on the internal cable fixture sheets, with cable clamps or nylon ties. If need to install underground wire, there is preserved position. On right of the metal sheet, there is one bigger clamps for flexible cable fastening.

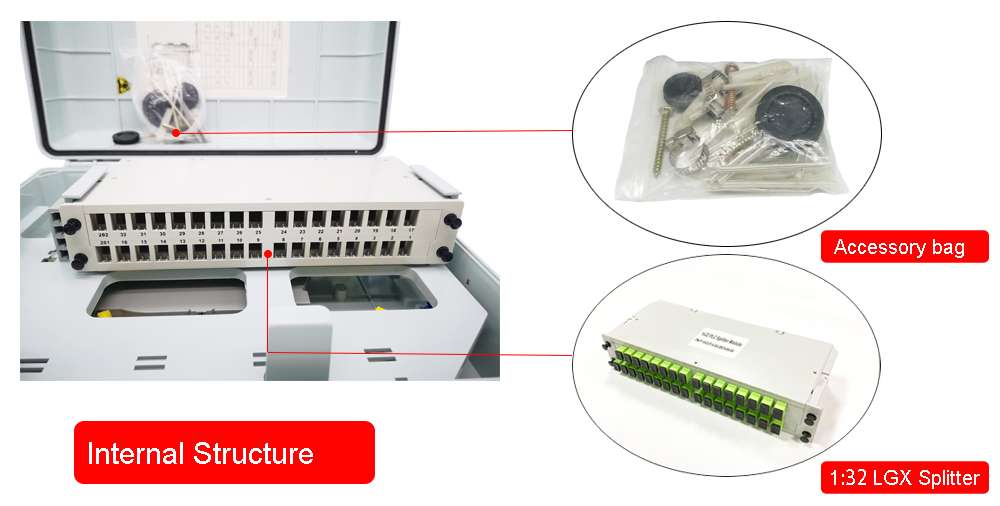

We will load all standard accessories for mounting the box on wall in a plastic bag, which will be put in the box in factory.

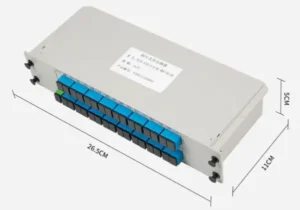

This fiber optic nap box is mainly designed for 1:32 or 2:32 SC splitters with cassette module package type. Only need to plug in and plug out by hand by the 4 rivets on both sides. It is slinding design. SC/UPC or SC/APC connectors are available.

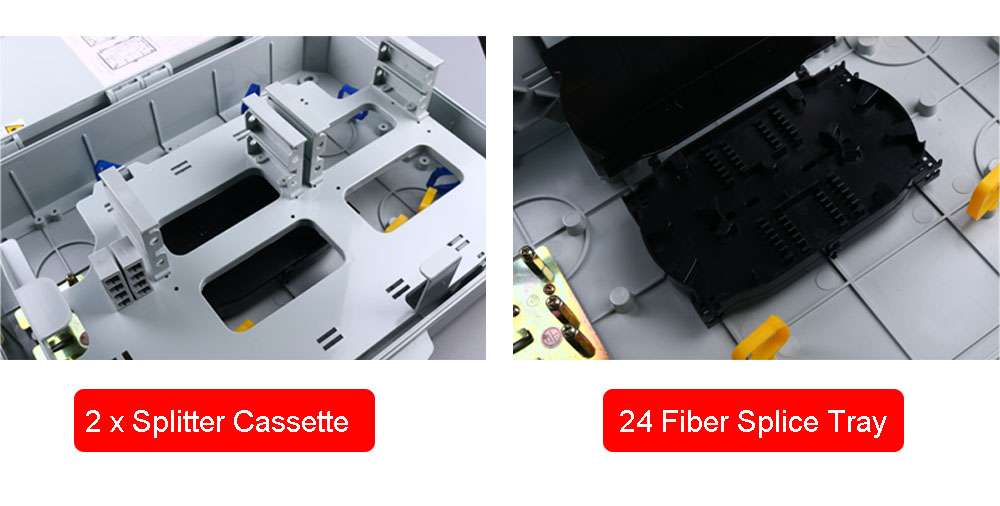

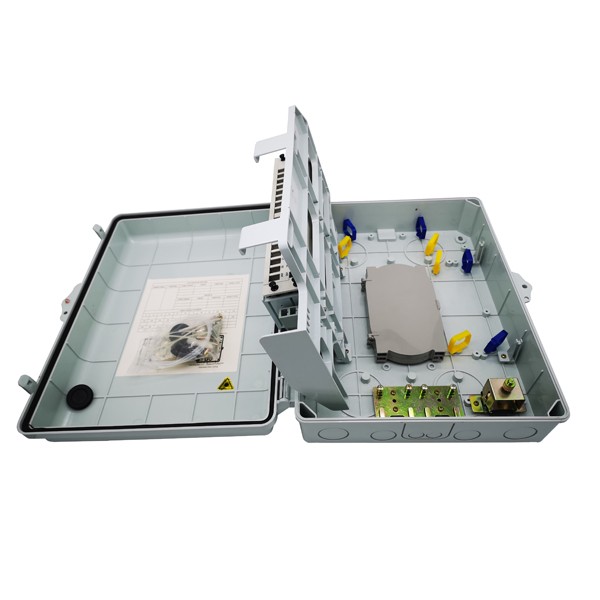

This fiber access terminal box are humanity design with seperate function areas: Except above 1:32 cassette modules, we can also change the slots into 2pcs 1:16 splitter modules instead. Under the rotate plate, on the bottom of the nap box, there is large space to install 1 ~2 pcs splice trays. And we will configure with several fiber optic cable management rods on the bottom.

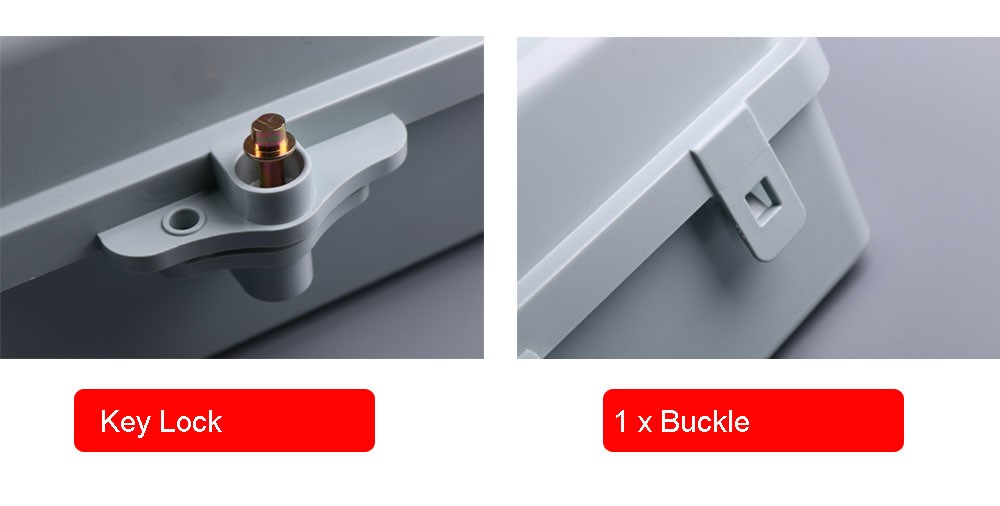

This fiber atb box is closed with steel rod and 1 buckles to hold them tightly, which is IP65 waterproof all round the internal of cover to ensure the sealing. No special key, can not open the FAT box, this can help ensure the optical performance after long time usage.
