Description
MT MT patch cord Features
- 1-24 core patch cords available
- Single-mode and multi-mode MT ribbon fibers available
- 8core and 12 core ribbon fibers available
- Bulk fiber or ribbon fibers available for connection
- Customized length available according to customer requirements
MT MT patch cord applications
- QSFP optical module
- Array laser
- Multi-channel equipment
MT MT Patch Cord Specification
| Item | MT to MT patch cord with ribbon fibers |
| Insertion loss | Elite loss <0.35dB, standard loss<0.7dB |
| Return loss | PC>25dB |
| Plug-in test | 100次 <0.5dB |
| Applicable optical fiber | OM1/OM2/OM3 |
| Optical cable type | Ribbon Fiber |
| Fiber length | 10cm |
| MT angle | 0°Double male connectors |
| Core spacing | 127um |
| Operating temperature | -40~85℃ |
MT MT Patch Cord Details

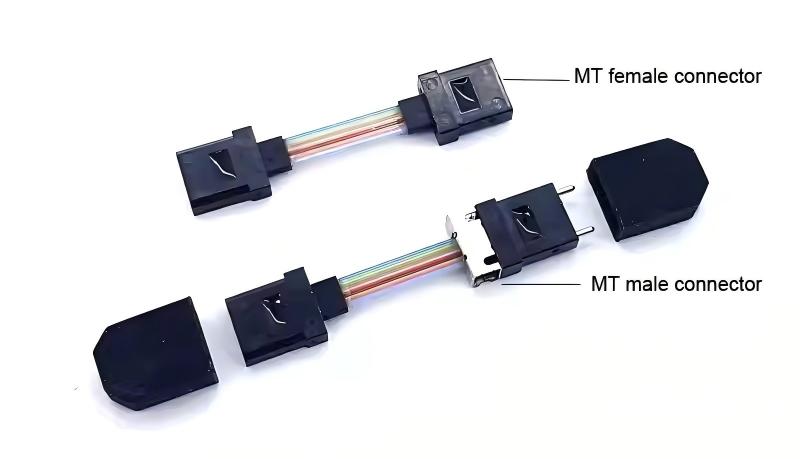

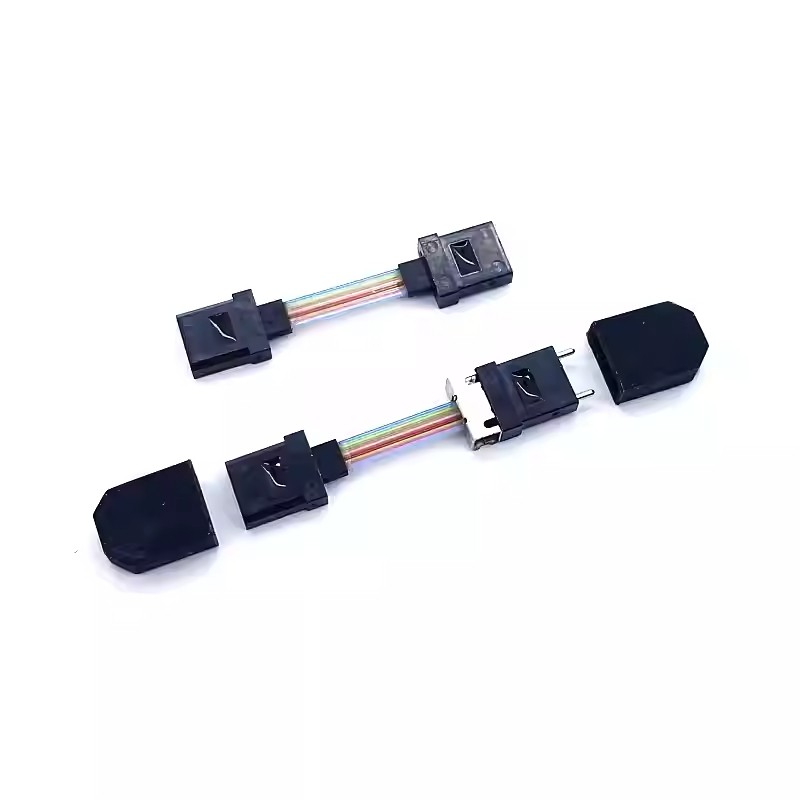

Yinda can provide two types of MT connectors: MT female connector and MT male connector

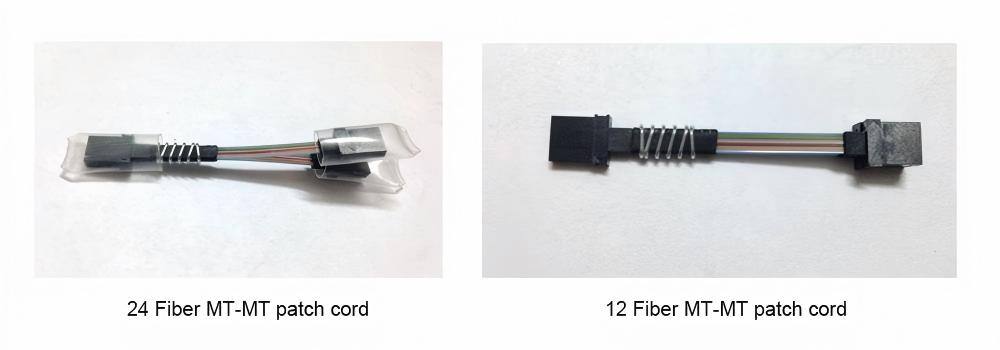

Yingda MT to MT patch cords can be 12 core ribbon fiber and 24 core ribbon fibers, the fiber length can be customize.
