Description
Features
- Hot-swappable QSFP-DD form factor

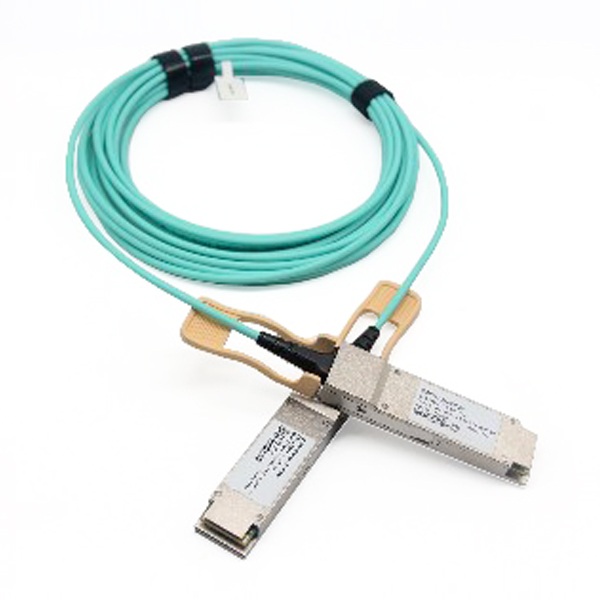

- 8-channel full-duplex active optical cable (one 200G QSFP-DD module at each end)
- 8-channel 850nm VCSEL laser array and PIN photodetector array
- Built-in CDR circuit for receiving and transmitting channels
- Supports CDR bypass function
- Meet EMI and ESD requirements
- Compatible with IEEE 802.3ba 40GBASE-SR4 Ethernet and InfiniBand FDR/EDR standard
- Maximum rate up to 103.125Gbps
- Interconnection up to 70m (OM3) or 100m (OM4) can be achieved through multimode fiber (cable length can be customized)
- The maximum power consumption of each QSFP-DD module is less than 3.5W
- Operating temperature: 0-70℃
- Power supply voltage: 3.3V
- Compliant with RoHS6.0
Technical Parameter
| Product model | QSFP-DD-200G-AOC | Brand | YINGDA |
| Transmission rate | 200G | Warranty | 3 Years |
| Transmission distance | 1-100m (optional) | Cable material | PVC |
| Packaging form | QSFP-DD to QSFP-DD | Operating temperature | 0~70℃ |
| Cable type | OM3&OM4 (optional) | Power | Less than 3.5W |
