Description

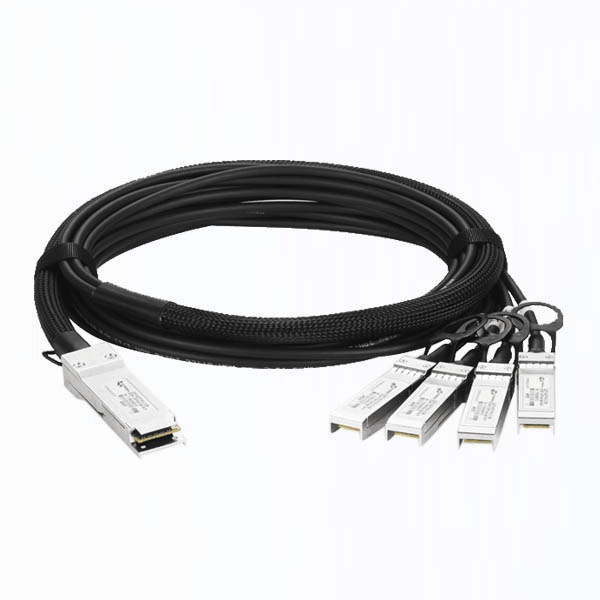

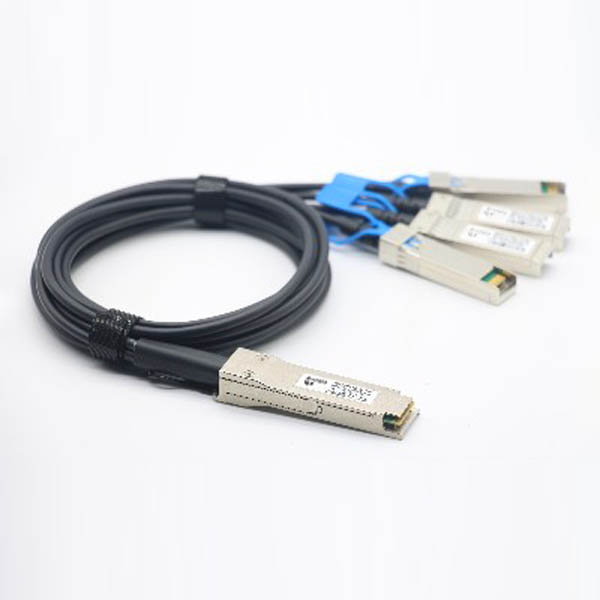

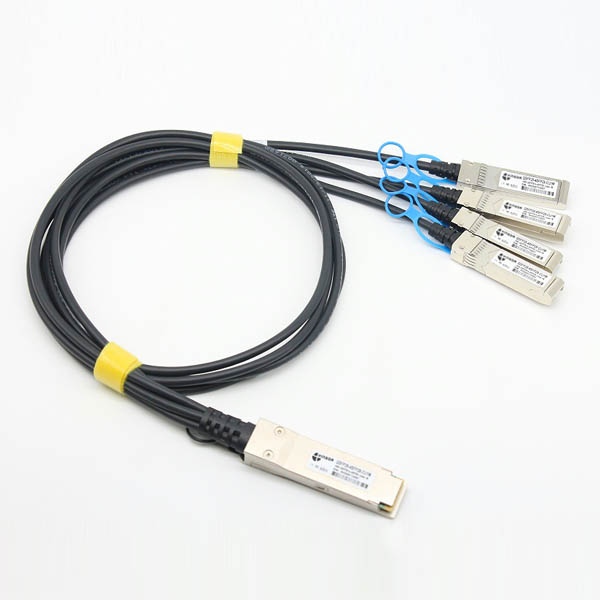

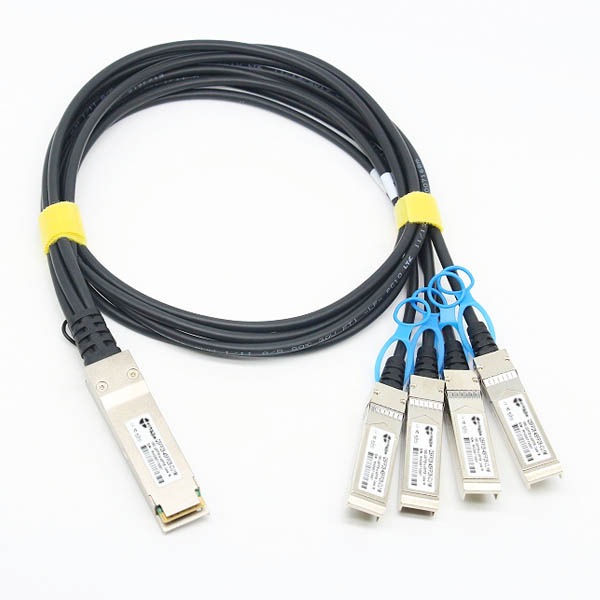

The 100G QSFP28 to 4 SFP28 DAC is suitable for stacking and interconnection of short-distance big data devices. One end is a 100G QSFP28 interface, and the other end has 4 25G SFP28 interfaces. It can provide customers with 100G data transmission and complies with IEEE 802.3BA standard, SFF-8665/SFF-8679, IEEE 802.3bj and Infiniband EDR standards.
Features
- Supports hot-swappable QSFP28 and SFP28 packages
- Complies with QSFP28 MSA, SFP28 MSA, SFF-8636, and SFF-8402 standards
- Maximum rate up to 103.125 Gbps (4 x 25 Gbit/s)
- Complies with IEEE 802.3bj 100GBASE-CR4 and 802.3by 25GBASE-CR standards
- Cable length can be customized within 5 meters
- Low insertion loss and low crosstalk, etc.
- Operating temperature: 0 – 70℃
- Power supply voltage: 3.3V
- Complies with RoHS 6.0
Parameters
| Product model | RSP-4SFP25G-DAC |
| Brand | YINGDA |
| Transmission rate | 100G |
| Guarantee period | 3 years |
| Transmission distance | 1 – 5m |
| Cable material | PVC |
| Package form | QSFP28 to 4SFP28 |
| Operating temperature | 0 – 70℃ |
| Cable type | 30AWG/24AWG |
| Power supply voltage | 3.3V |
