2 Cores FTTA Outdoor LC Single Mode Fiber Patch Cable, Singlemode G657A Fiber, LSZH, Duplex, Both Sides with ZTE PDLC Waterproof Plugs

Description

LC Single Mode Fiber Patch Cable Features

• Standard dual LC connector, well connected with standard LC adaptor
• Available single mode and multimode fiber
• IP67 protection, salt-mist proof, humidity proof, dust proof
• Plastic engineering housing, compact design for 2 cores or 4 cores
• Broad temperature range and wide range of indoor and outdoor cables
• Easy operation, reliable and cost-effective installation

LC Single Mode Fiber Patch Cable Application

• Widely used in FTTA, FTTH, FTTX, FTTP, WIMAX network
• Used for 3G 4G 5G 6G Base station
• Harsh outdoor environments application
• BBU, RRU, RRH, LTE, FTTA connection

LC Single Mode Fiber Patch Cable Structure

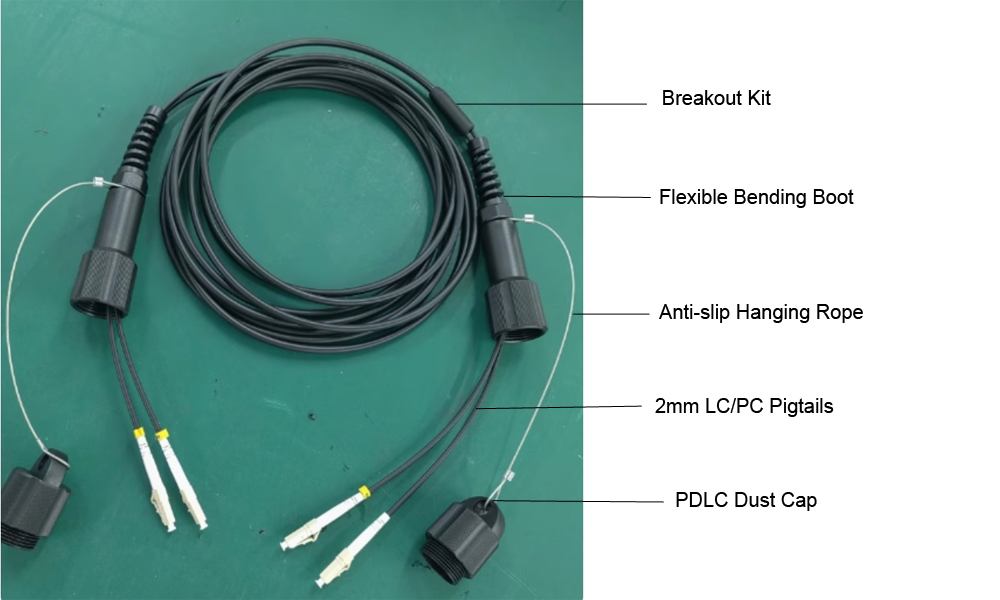

LC Single Mode Fiber Patch Cable Details

This PDLC patch cord consists of a 2 core FTTA outdoor cable with armor inside, a PDLC connector, and a DLC connector. The length is optional. The PDLC is an IP68 waterproof connector, compatible with some outdoor waterproof boxes from ZTE or Huawei. It is widely used in fiber optic communication, outdoor 5G base stations, and video surveillance.

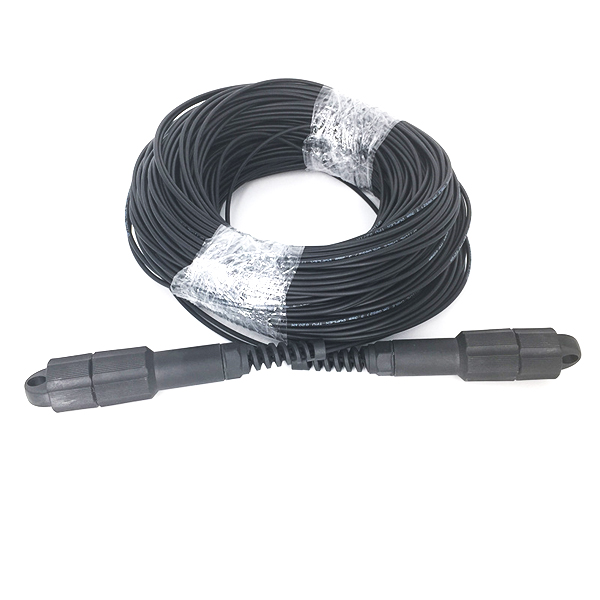

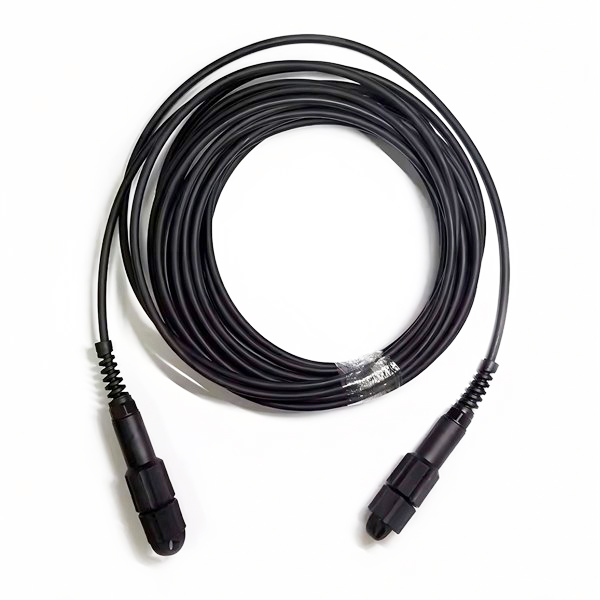

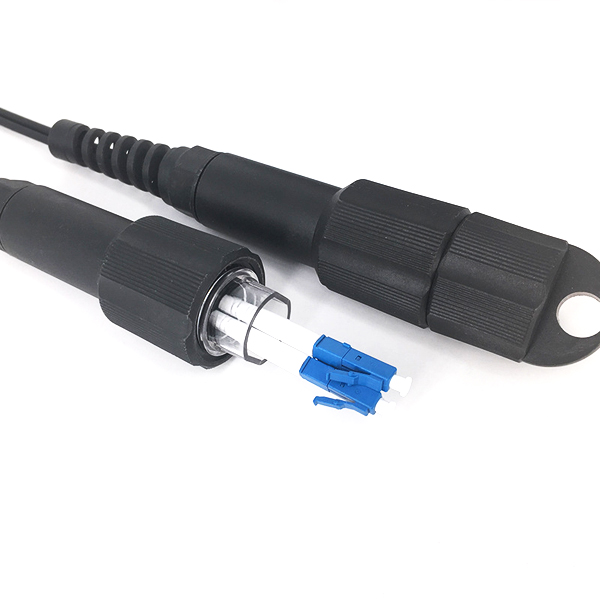

PDLC to PDLC patch cord are fiber patch cable with 2x PDLC waterproof plugs at both sides, which is made of high-precision plastic, with a bend-resistant tail, allowing for seamless connection to  field 7mm base station cables. Internally, it uses a 2 core tight buffer 2mm subunit structure. The commonly used fiber optic connectors are LC dual connectors.

Base station cables have a 4 core structure. If the customer only uses 2 cores, heat shrink tubing or breakout kits should be used for protection after stripping the outer sheath. If the customer wants better tensile strength for the connector during dragging, spiral armor can be added to the branch.  And there is a hole on the dust cap, so you can add a anti-loosing rope to connect the dust cap and waterproof plug.
