Description

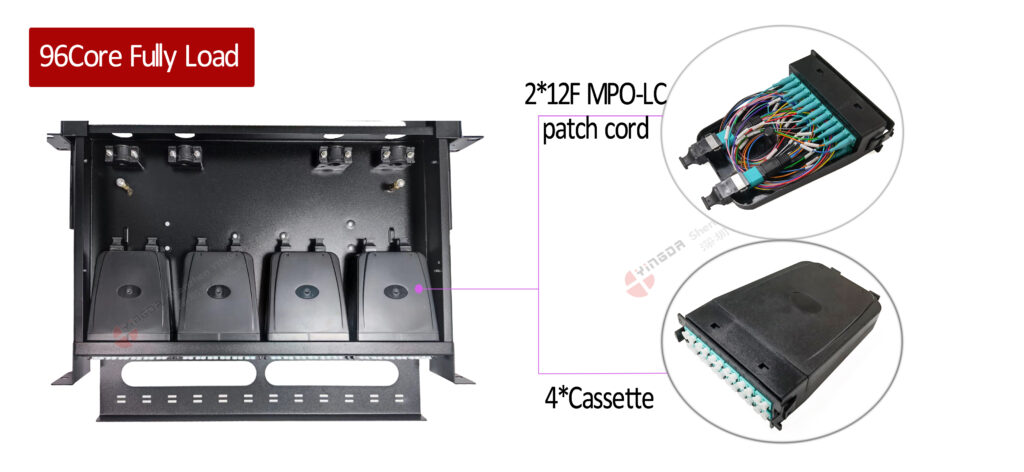

Patch Panel MPO Structure

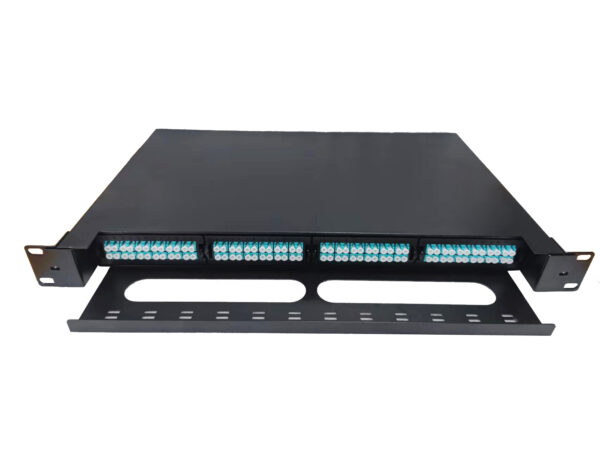

This sliding drawer patch panel MPO with 4 Cassettes (OM3, 24 Fiber) has a compact 1U form factor. The sliding drawer design allows easy access. It can fully load 96 cores. Inside, there are 4 cassettes. The panel is equipped with 2*12F MPO-LC patch cords. The MPO connectors on the patch cords enable high – density fiber connections, while the LC connectors facilitate compatibility with other network devices. The internal structure neatly organizes fibers, ensuring efficient 10G (or relevant) network interconnection, with the cassettes playing a key role in fiber management and distribution.
Patch Panel MPO Features
- Standards: IEC / EN61754-7 (MPO connector) and TIA-568-B.1-7
- Modular connection system: Factory preterminated optical fiber connection components, any length and any optical fiber SM & mm, trunk cable and module box, easy installation, plug and play system solution
- High density connection system: compact design, 12 core connector, up to 96core optical fiber 1U rack mount
- After factory pre termination and testing, the quality assurance and consistency exceed the demand of 10Gbit
- Made of high qualityCold rolled steel sheet, with electrostatic spraying
- Metal sliding tray of the splice tray and bottom, easy and fast to operate without open the cover
- Total front operation with cable clamps and routing area, large fiber management area
Patch Panel MPO Technical Specification
| Dimension | 482*315*1U mm |
| Max capacity | 96 cores |
| Material | Cold rolled steel SPCC |
| Cable entry port | 4 round port with rubber φ20mm |
| Cable exit port | Lc duplex adapters |
| Adapter quantity | 48pcs |
| Operating temperature | -10~+85°C |
| Standards | TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-C, CEA/EIA-310-E, ANSI/TIA/EIA-606-A, GR-449-CORE, RoHS |
| IP Rating | IP20 |
| Color | Black |
MPO/MTP Connector Specification
| Insertion loss | <0.7dB(standard loss), <0.35dB (Elite loss) |
| Return loss | >65dB APC, >50dB UPC, >30dB PC |
| Mating durability | 500 times |
| Wavelength | 850-1550nm |
| Standards | IEC61300, IEC61754, ROHS, etc |
