Description
MPO to LC Patch Panel Application
- Ultra-High density Data center Cabling system and management .
- Professional MPO/MTP cabling Solution
- UHD Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building
- backbones, data centers and enterprise applications.
MPO to LC Patch Panel Features
- Made of high quality cold rolled steel with spraying
- Small size, large capacity, high density
- 1 Unit height can hold 12pcs MPO cassette, up to 144core single fiber distribution
MPO/MTP Patch Panel Technical Parameters

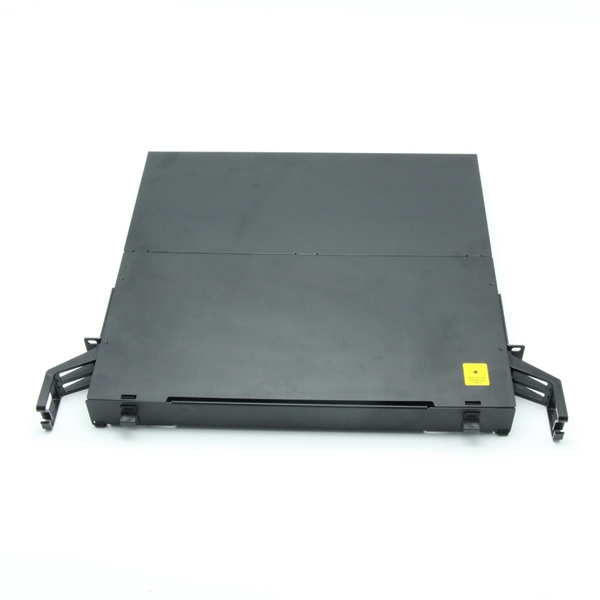

| Product name | 1U UHD MPO/MTP LC Slide Drawer Rack Mount Patch Panel |
| Part no. | UHDS1 |
| Fiber count | Max. 144Fibers |
| Enclosure type | Rack mountable |
| Installation | Standard EIA 19”Rack |
| Material | CRS Cold rolled steel |
| Compliant | TIA/EIA-568-C.3 |
| Dimension(H*W*D) | 482.6*455*44mm |
