Description

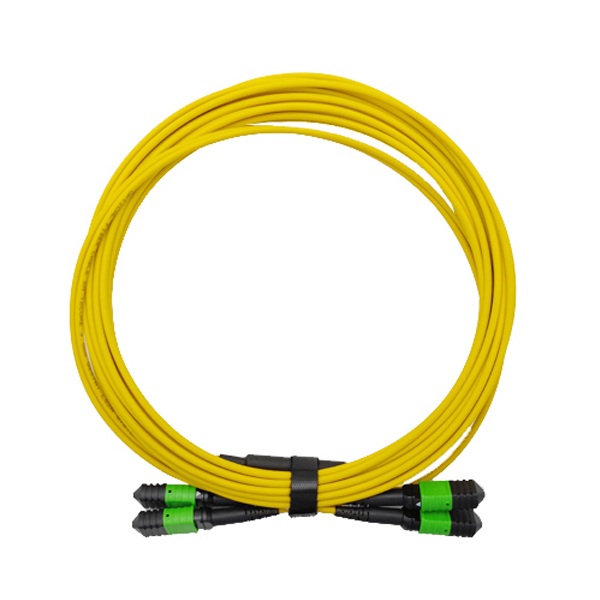

MTP/MPO Trunk cable is good for fast data center or fiber infrastructure implementation. It is used to bridging among MPO cassette or fan out fiber patch cable among MDA, HAD and EDA. The high efficient plug and play patch cable structure remarkably reduced the initial installation and daily maintenance cost. Yingda MTP/MPO trunk cable adopts selected fiber cable and MPO components, with low insertion loss, high return loss, fully meet the requirement of high speed data network.
16 Fibers MPO Track Cable Features
- Backbone installation
- Choice of either both ends with pins (Male type) or both ends without pins (female type)
- Fiber counts available in 12/24/36/48/72/96/144 fibers
- Round & mini-core cable structure to eliminate bend sensitivity and save space
- Available in single mode G 652 D and G 657, multi mode OM2, OM3, OM4, OM5 fiber
- Optional pulling eye design to fit for different installation environment
16 Fibers MPO Track Cable Associated Standards
Ø Meets IEC Standard 61754-7& JIS C5982
Ø Structured cabling per TIA-568-C
Ø Parallel Optics
– Optical Internetworking Forum (OIF) Compliant
– Infiniband Compliant
Ø Infiniband
– 10G Fiber Channel Compliant
– 40G and 100G
– QSFP
16 Fibers MPO Track Cable Applications
- Optical switching inter-frame connections
- High fiber density card edge access
- Array trunk cables
- Datacenter cabling
MPO Track Cable Optical Parameters
Insertion loss(dB) | SM Standard | SM Elite | MM Standard | MM Elite | |
≤0.7 | ≤0.35 | ≤0.7 | ≤0.35 | ||
Return loss(dB) | ≥60 | ≥20 | |||
Durability (dB) | ≤0.2, 500 times mating | ||||
Tensile strength(kgf) | 10 | ||||
Working temperature(℃) | -20 ~+70 | ||||
Measurement wavelength(nm) | 1310 | 850 | |||
Standards | IEC61754-7, IEC61755, Telcordia GR-1435-CORE, JIS C5982, TIA-604-5(FOCIS5), structured cabling per TIA-568-C, 10G fiber channel, 40G and 100G IEEE 802.3, etc | ||||
Housing color | Green connectors+black boot | Yellow connector+black boot | OM1&OM2: beige connector+black boot
OM3&OM4:aqua connector+black boot OM3&OM4: violet connector+black boot |
Geometry parameters
Item | X-axis | Y-axis | ||
Min | Max | Min | Max | |
Radius of curvature(mm) | 500 | – | 50 | – |
Polishing angle | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
Item | Min | max | ||
Fiber height (nm) | 1000 | 3000 | ||
Max fiber height error (nm) | 600 | |||
Adjacent fiber height error (nm) | -300 | +300 | ||
Avg. fiber height error (nm) | -300 | +300 | ||
Central concave (nm) | 300 |
