Description
Because of the unique precise design and the rubber or gel-filled sealing, this MST cable box meet IP68 protection grade, it is best fiber optic box in outdoor harsh environment like prospecting, military communications, telecom, and FTTX networks.
MST Cable Box Features
- Made of robust plastic materials, black color with 1200N force resistance, durable, strong and long lasting;
- Outlet hardened Supertap SC adapters, compatible with Opti-Tap connector applications
- IP68 protection grade, best MST fiber box for outdoor harsh environment
- Support wall, overhead, underground, handhole, pedestal, pole mounting
- Custom cable input and output from optical cable port, optical interface MPO, SC DLC dual connector.
- Custom ODVA, ODC, AARC, PDLC, Fullx available.
- Support factory-terminated with 1×2 1×4 1×5,1×8,1X16 PLC splitter, 12 cores fiber sleeve, SC / DLC fiber adapter or MPO/MTP breakout cable or empty with standard accessories.

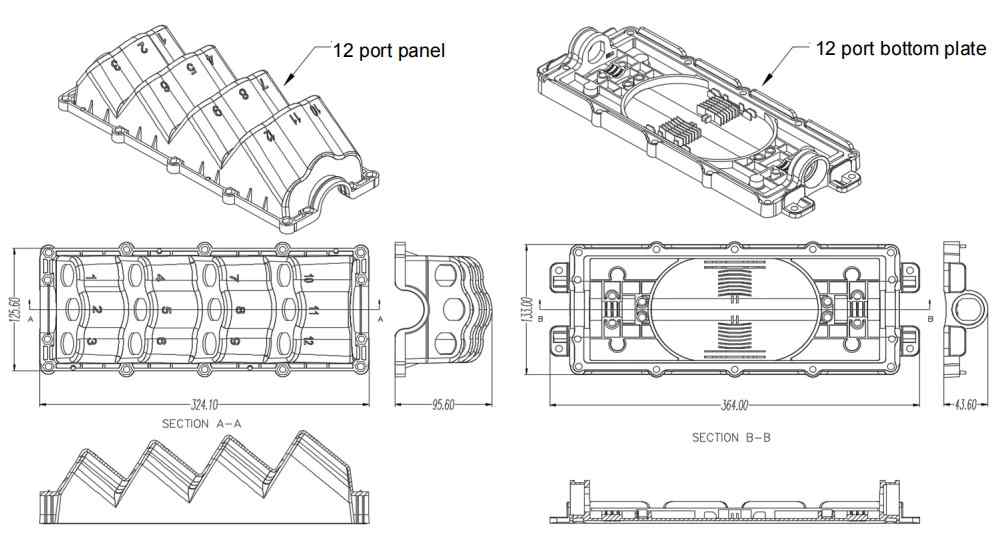

MST Cable Terminal Box Dimension
MST Cable Box Specification
| Model | MST-FH12 | |
| Dimension | Cover , Section B-B | 324.1*125.6*95.6 |
| Bottom,Section A-A | 364*133*43.6 | |
| Cable Inlet | 1x Hardened Supertap MPO Adapter | |
| Cable Outlet | 12 x Hardened Supertap DLC connectors* | |
| Hardened Adapter type | Compatible with ODC, Fullx, PDLC, Supertap (OptiTap), Mini, AARC,etc | |
| Max. Splicing Capacity | 12 Cores (single layer), 24 cores (double layer) | |
| Mini Splitter | None, 1×2, 1×4,1×5, 1×8 steel tube splitter | |
| Adapter Type | 12x LC duplex adapter, 1x MPO adapter | |
| Insertion Loss | IL ≤ 0.3dB, Typical ≤ 0.1dB (SC LC) IL ≤ 0.7dB, Elite loss ≤0.35dB (MPO) | |
| Return Loss | UPC ≥ 50dB, UPC ≥ 60dB; PC ≥ 35dB | |
| Tensile Strength | 1200N long term | |
| Bending Radius | 20D | |
| Fire Protection Rating | UL94 V0 | |
| Material | Plastic: Reinforced PC+ABS Metal: Stainless steel 304 | |
| Color | Black | |
| Ingress Protection | IP68 | |
| RoHS | Compliant | |
| Sealing Mode | Mechanical | |
| Application | Wall, overhead, pole, manhole, pedestal,underground | |
*Supertap is compatible with Opti-Tap Connectors, or H connector.
Fiber Serving Terminal Mechanical Parameters
| Storage Temperature | -40 ~+85℃ |
| Operation Temperature | -40 ~+65℃ |
| Relative Humidity | ≤93% |
Adapter Optical Performance
| Adapter Type | LC, MPO |
| Body style | LC duplex, MPO 24 fibers |
| Alignment Sleeve Material | Ceramic |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥60dB |
| Durability | 1000 times |
| ROHS | Compliance |
| Standard | IEC 61754-20 |
MST Cable Box Detail

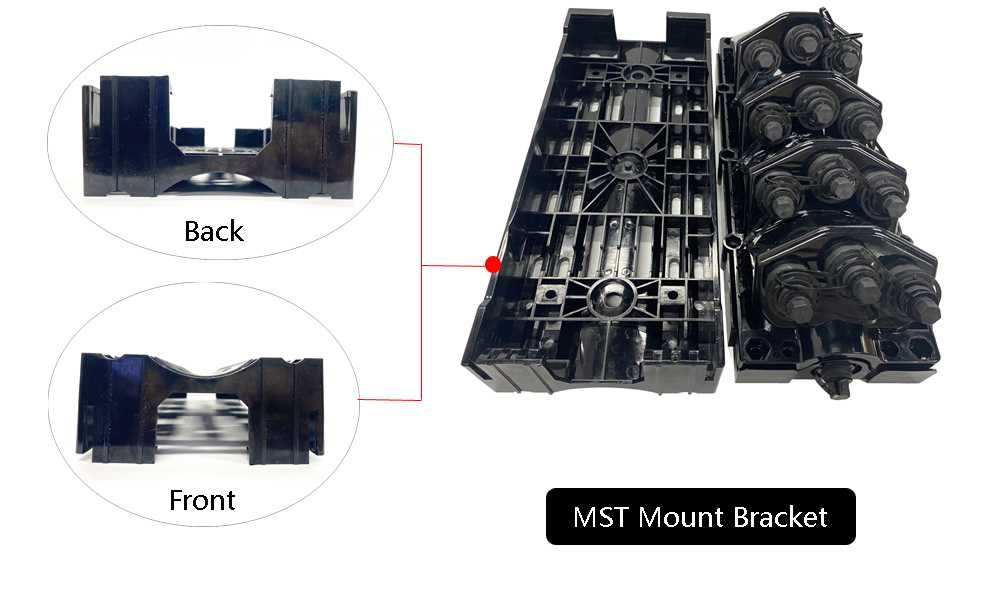

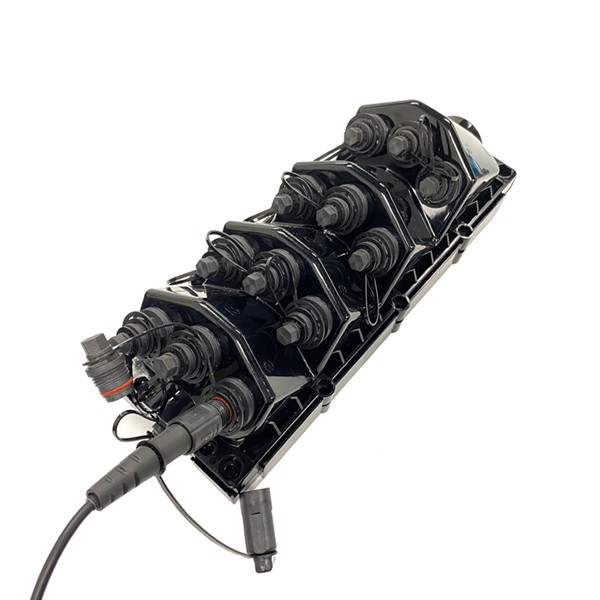

YINGDA MST-FH12 MST Cable Box is widely used in fiber network access in GPON ODN. It is compact size, irregularly shaped, plug-and-play NAP box with best IP68 waterproof protection, and have strong impact resistance of 1200N. It has a special base to hold the cable box, which is strong and high tension strength you can use is used as the mounting bracket for wall, pole, air etc

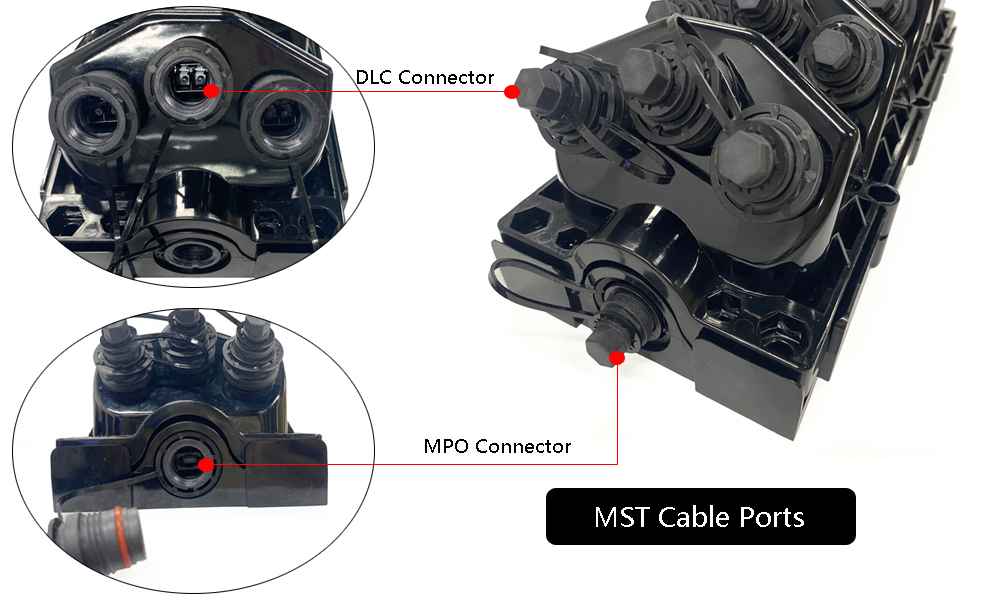

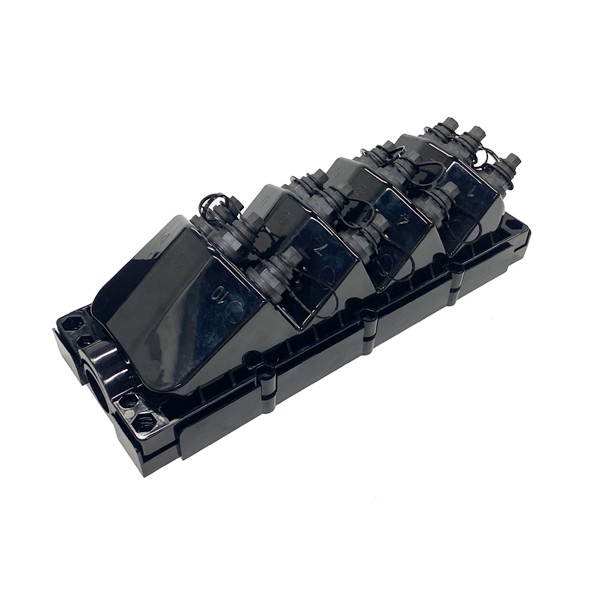

12Port MST cable box cover is for fiber optic distribution with dual lc connectors, you can find number mark to distinguish the fiber sequence, no need to open the box to check. The bottom is with MPO multi-fiber push on connector to dock with the main cable. Both parts are separated. The hardended waterproof plug is mainly used for outdoor waterproof protection, and connected with equipment of corresponding brands.

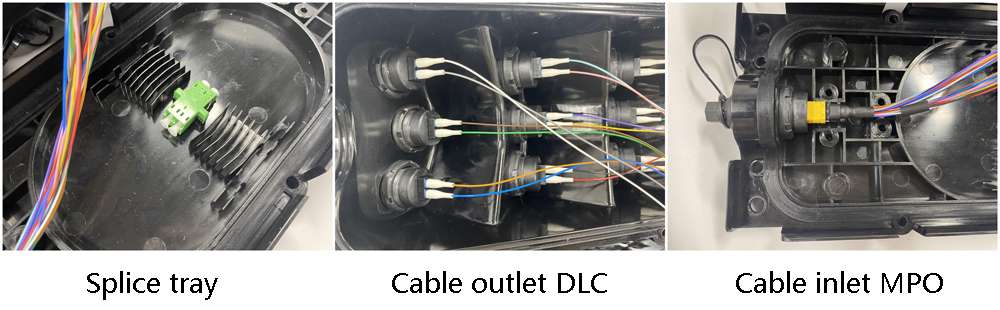

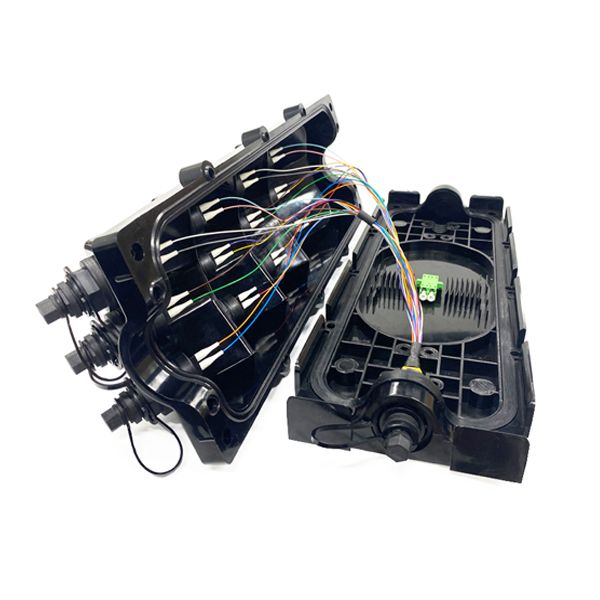

There are complete rubber sealing around the multiport service terminal box on the bottom plate, and in the middle with adapter, plc splitter or heat shrink protection tube fixing slots. Max. can splice single fiber 12 cores, and use 1×2 or 1×4, 1×5, 1×8 PLC fiber optic splitter. We configured MPO/MTP breakout cable inside of the box, elite loss <0.35dB, and plug fanout LC pigtails in the cable exit ports, there is colorful loose tube to distinguish fiber 1 2 …24, also you can find the number mark on surface of the box without opening the closure.
