Description

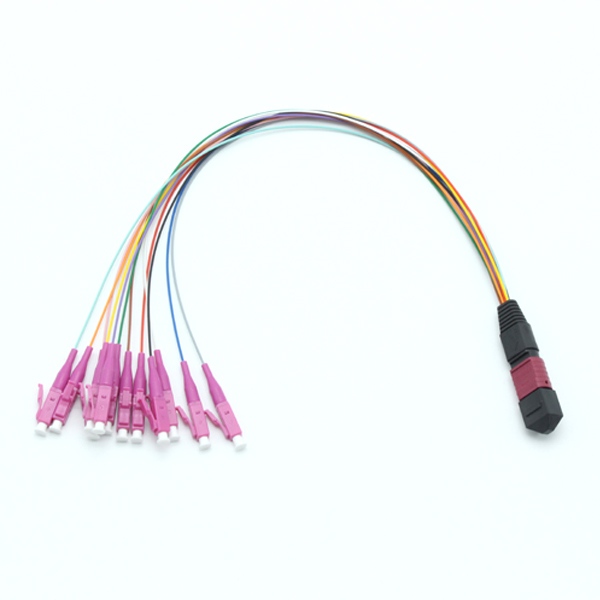

MPO (male) to LC breakout cable 0.9mm 30cm are designed for LGX modular MPO MTP cassettes, which are terminated with MPO adapters and LC/SC/FC/ST connectors. It’s specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
MPO to LC Cord Features

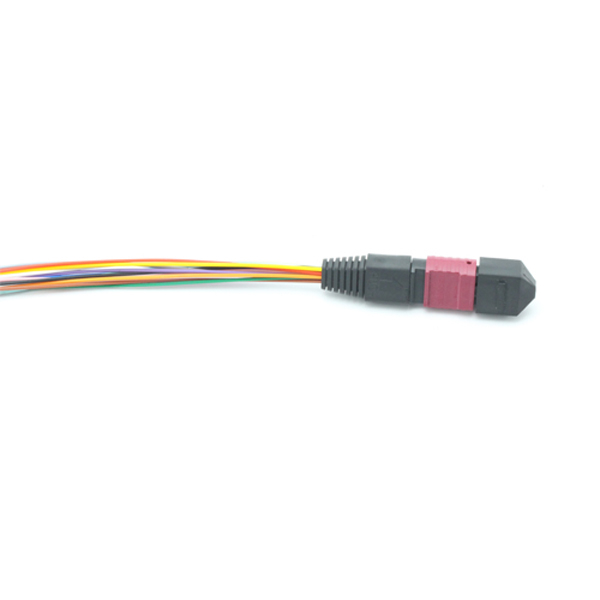

- A male MPO connector (with guide pin) access to the trunk cable by connecting with MPO adaptors in the cassette, the fanout end connect with LC or SC Connector connect with the patch panel in the modules to connect with the equipment
- Customized cable length to compatible with the module, easy for cable coiling
MPO to LC Harness Cable Application
- SM 8F MPO- LC/SC/FC/ST Fanout 0.9mm cable are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications.
- OM3/OM4 8F MPO- LC/SC/FC/ST Fanout 0.9mm cable are optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.
- This 8 Fiber harness cable is used for a direct connection between QSFP+ to (4) SFP+ ports with no patch panels or intermediate trunks in between.
MPO/MTP Connector Optical Parameters
| Insertion loss(dB) | SM Standard | SM Elite | MM Standard | MM Elite |
| ≤0.7 | ≤0.35 | ≤0.7 | ≤0.35 | |
| Return loss(dB) | ≥60 | ≥20 | ||
| Durability (dB) | ≤0.2, 500 times mating | |||
| Tensile strength(kgf) | 10 | |||
| Working temperature(℃) | -20 ~+70 | |||
| Measurement wavelength(nm) | 1310 | 850 | ||
Geometry parameters
| Item | X-axis | Y-axis | ||
| Min | Max | Min | Max | |
| Radius of curvature(mm) | 500 | – | 50 | – |
| Polishing angle | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
| Item | Min | max | ||
| Fiber height (nm) | 1000 | 3000 | ||
| Max fiber height error (nm) | 600 | |||
| Adjacent fiber height error (nm) | -300 | +300 | ||
| Avg. fiber height error (nm) | -300 | +300 | ||
| Central concave (nm) | 300 | |||
LC SC FC Fiber Optic Connectors
| Fiber mode | Single Mode | Multimode | |
| Connector polishing | PC | APC | PC |
| Insertion loss (dB) | ≤0.3 | ||
| Return loss (dB) | ≥50 | ≥60 | ≥35 |
| Repeatability(dB) | ≤0.2, 1000 times mating | ||
| Working temperature(℃) | -40 ~+85 | ||
| Measurement wavelength (nm) | 1310 | 850 | |
