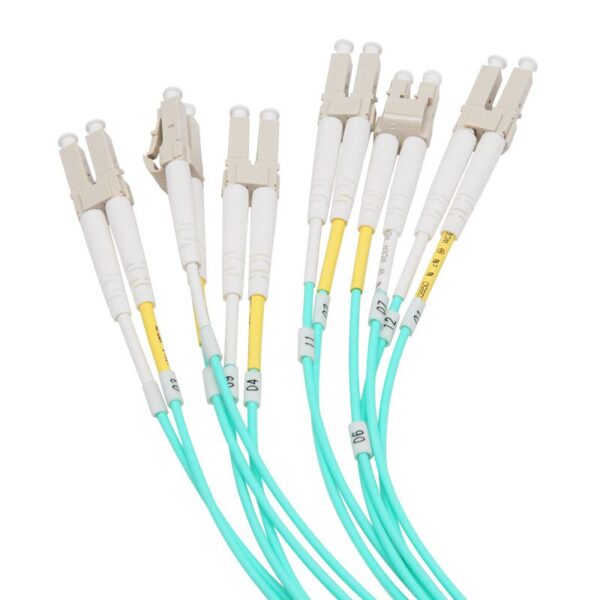

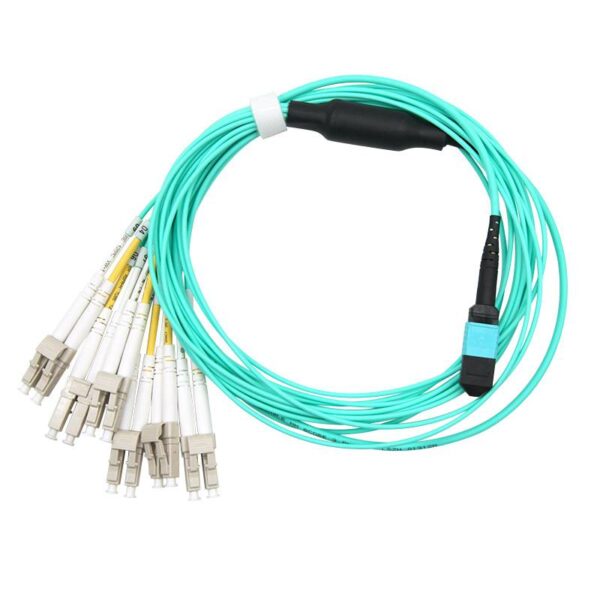

12 Fiber MTP to 6LC Duplex Fanout Cable OM3 10G Aqua

Yingda MPO MTP Fanout cable (breakout patch cable) assemblies are with a single 12 core or 24 core MPO/MTP connector in one end and LC SC FC connectors for another end. Directly connecting the backbone cable with the equipment without MPO/MTP cassette, beside it, the cable is also used for cable expanding in the data center.

Category Tags , Brand:
SEND INQUIRY

Description

MPO/MTP 12F to LC/PC Fanout Patch Cord Features

  • 12 to 24 cores cable connection
  • Adopts 4, 8, 12 or 24 core MPO connector. Reduce fault failure rate and save space
  • Smoothly upgrade 10G network to 40G, 100G network, support 100G transmission latency requirement
  • Optional multi-mode OM3, OM4, single mode G 652D, G 657A2 fiber requirement
  • Adopts mini round type cable, small diameter, with smaller trunk cable and smaller bending radius, easy for storage and cable install
  • Use dust-proof, compressive strength, tensile strength protective sleeve at both ends, can effectively protect cables and fiber optic connectors in the transportation and installation process from damage



MPO/MTP Connector Optical Parameters

Insertion loss(dB) SM Standard SM Elite MM Standard MM Elite
≤0.7 ≤0.35 ≤0.7 ≤0.35
Return loss(dB) ≥60 ≥20
Durability (dB) ≤0.2, 500 times mating
Tensile strength(kgf) 10
Working temperature(℃) -20 ~+70
Measurement wavelength(nm) 1310 850
Standards IEC61754-7, IEC61755, Telcordia GR-1435-CORE, JIS C5982, TIA-604-5(FOCIS5), structured cabling per TIA-568-C, 10G fiber channel, 40G and 100G IEEE 802.3, etc
Housing color Green connectors+black boot Yellow connector+black boot OM1&OM2: beige connector+black boot

OM3&OM4:aqua connector+black boot

OM3&OM4: violet connector+black boot



MPO/MTP Connector Geometry Parameters

Item X-axis Y-axis
Min Max Min Max
Radius of curvature(mm) 500 – 50 –
Polishing angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjacent fiber height error (nm) -300 +300
Avg. fiber height error (nm) -300 +300
Central concave (nm) 300



LC/SC/FC Fiber Connectors

Fiber mode Single Mode Multimode
Connector polishing PC APC PC
Insertion loss (dB) ≤0.3
Return loss (dB) ≥50 ≥60 ≥35
Repeatability(dB) ≤0.2, 1000 times mating
Working temperature(℃) -40 ~+85
Measurement wavelength (nm) 1310 850



MPO/MTP To LC 12 Core Mini Round Patch Cable Drawing

12 fiber mtp to 6lc duplex fanout cable om3 10g aqua jacket

12 fiber mtp to 6lc duplex fanout cable om3 10g aqua



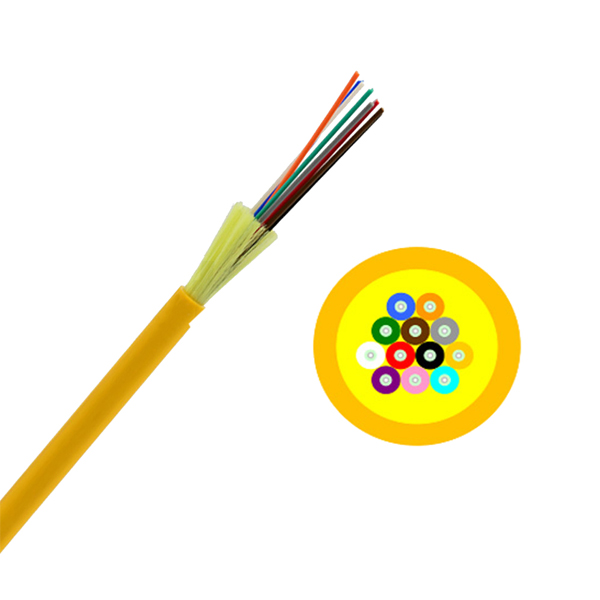

12 Fibers 3.0mm Mini Round Patch Cable Parameters

Fiber count OD(mm) Min. Allowable tensile strength (N) Min. Allowable crush load (N/100mm) Min. Bend radius(mm)
Short term Long term Short term Long term Short term Long term
12 3.0±0.15 180 90 500 150 10D 20D
