1:9 Unbalanced planar splitter 85/15 use a PLC chip 1×9 to divide optical signals to 9 channels in unequal splitting ratio from 1% to 100%. Channel no.1 is big split ratio from 50% to 100%, the rest 8 channels are equal split ratio. For example 1×9 splitter 85/15, that means channel 1 is 85%, and channel 2-9 total 15%, and each channel will be 1.875%.
| Split ratio (%) | 85/15 | |
| Operating wavelength(nm) | 1260-1650 | |
| Fiber type | G657A or customized | |
| IL max(dB) | channel 1 | 1.6 |
| channel 2-9 | 21 | |
| IL uni(dB) | Channel 2-9 | 1.8 |
| Return loss (dB) | ≥55 | |
| Directivity (dB) | ≥55 | |
| PDL (max.) | 0.3 | |
| Uniformity (max.) | 0.8 | |
| Wavelength dependent loss (dB) | ≤0.3 | |
| TDL (max.) | 0.5 | |
| Operating temperature (℃) | -40 ~+85 | |
| Storage temperature (℃) | -40 ~+85 | |
| Dimension(mm) | Bare fiber steel tube | 60x7x4 |
| 900um Steel tube | 60x7x4 | |
| ABS box | 120x80x18 | |
This splitter features a planar lightwave circuit (PLC) design, which enables precise and stable optical power splitting. The splitter has one input port and nine output ports. The optical fibers are typically made of high-quality materials to ensure low insertion loss and high return loss.

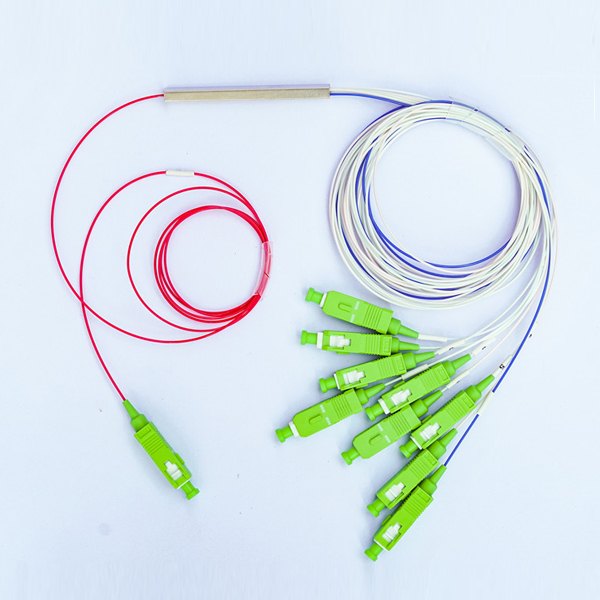

The colored fibers (such as the red and other colored ones visible) are pigtails with connectors (SC/APC types, as indicated by the green connectors) that facilitate easy connection to optical network equipment. The overall construction is designed for reliable performance in optical communication systems.
 |
 |
 |
