Polarization-Maintaining patch cord (PM patch cord for short) are specialized fiber optic patch cables that, by introducing stress zones or specialized structures within the fiber core, achieve high birefringence during transmission, thereby maintaining the polarization state of the optical signal. While conventional optical fiber is susceptible to polarization changes due to external factors, polarization-maintaining fiber effectively avoids this problem through its design.

PM patch cords are commonly used in scenarios requiring high polarization stability, such as:

  • Communication systems:Used for long-distance, high-speed communications to reduce polarization mode dispersion.
  • Laser systems:Used for high-power laser transmission to ensure beam quality.
  • Interferometry: Maintaining the polarization state of optical signals in interferometers to ensure measurement accuracy.
  • Quantum communication: Used to maintain the polarization state of photons in applications such as quantum key distribution (QKD).
  • Fiber optic sensing: Used in interferometers, gyroscopes, and for measuring physical quantities such as temperature, pressure, and strain, which require high polarization stability.

The polarization-maintaining patch cord Yingda provided are mainly use PANDA fiber.

panda fiber for pm patch cord

Best Reliable PM Patch Cord Factory

Yingda manufactures a wide range of PM patch cords, which production and testing standards primarily cover physical specifications, appearance requirements, classification parameters, length and attenuation testing, end-face 3D inspection, optical performance testing, connectivity, and durability testing. All PM patch cords will compliance with IEC 61755-3-31 and TIA-568 international standards.

  • Both side 0.9mm LC APC connectors green 0.9mm
  • 900um loose tube red hytrel
  • Slow axis align to the key
  • PM1550nm fiber single mode
  • 1pc/bag, 1 year guarantee

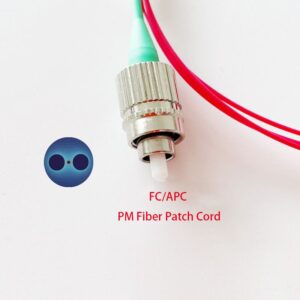

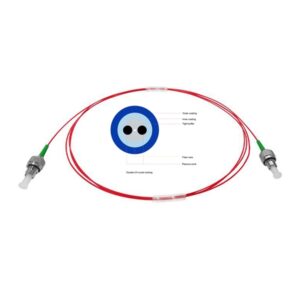

  • Both side 0.9mm FC APC connectors green
  • 900um loose tube red hytrel
  • Fast axis align to the key
  • PM980nm 1060nm fiber 125um
  • 1pc/bag, 1 year guarantee
  • Both side 3mm FC APC connector green
  • 3mm indoor cable / armored cable blue
  • Slow axis align to the key
  • PM980nm 1310nm,1550nm, 1060nm fiber 125um
  • 1pc/bag, 1 year guarantee

PM Patch Cord Cable Structure

Polarization-maintaining patch cords typically use single core indoor cables. For higher requirements, armored cables can be used with better tension strength.

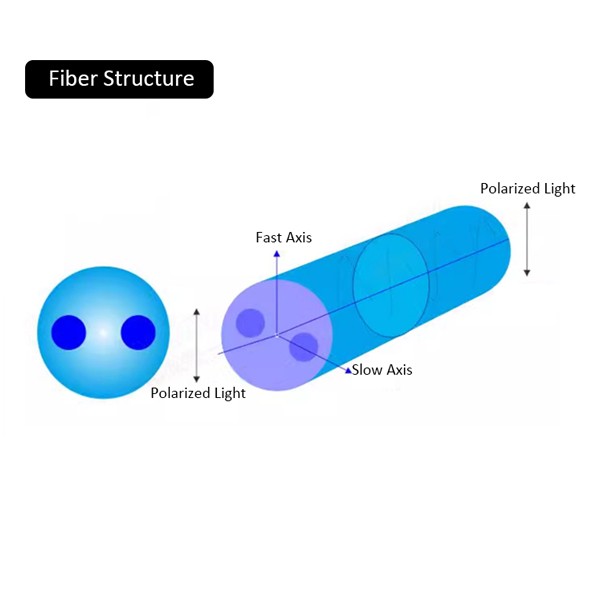

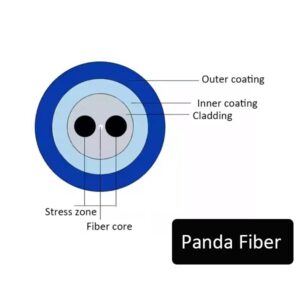

Panda fiber differs from ordinary fiber in that it has two cat’s eyes on either side of the fiber core, distinguishing between fast and slow axes. During alignment and connection, the slow and fast axes of the fiber must be precisely aligned to ensure alignment of stress zones and prevent polarization shifts.

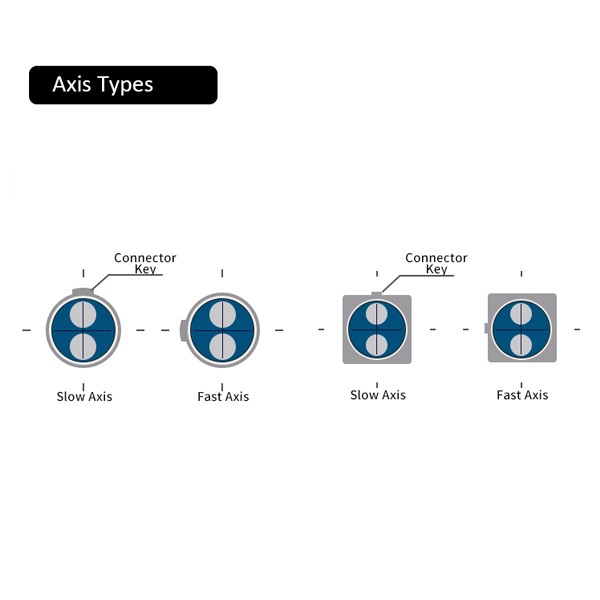

Fast Axis: the connector key is alignment with the polarized light.

Slow Axis: the connector key is cross with the polarized light.

pm fiber structure
pm fiber axes

Loose Tube of PM Patch Cord

The PM patch cord cable can be bare fiber 250um, 900µm or 3mm.

The 0.9mm loose tube is made of hytrel, and the 2mm or 3mm loose tube is typically made of PVC or LSZH, which can be customized to meet customer requirements.

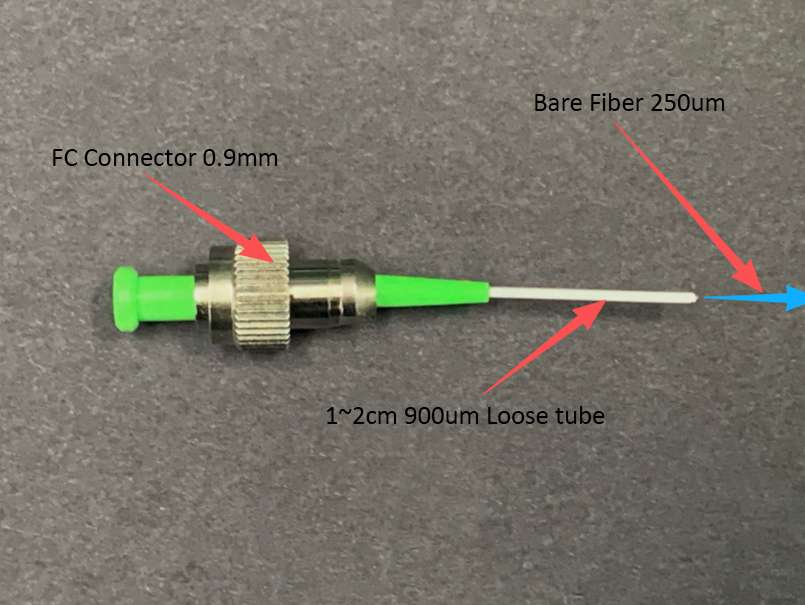

Kind Note: If you need to pre terminated fiber PM patch cord with bare fibers, it is every easy to break the fiber during assembly, crimping or polishing, so we must add 1cm section of loose tube at the connector tails.

Meanwhile, the loose tube or cable sheath colors for PM patch cords can be customized to your specifications. Commonly used colors include green, blue, red, gray, and white.

SEND INQUIRY>>>

pm patch cord bare fiber with 2cm loose tube
pm patch cord long end caps for fc connectors

Dust Caps For PM Patch Cord Connector

The mostly used optic connectors for PM patch cord are FC connectors due to threaded locking mechanism, which ensures precise alignment of the fiber ferrule, minimizing polarization deviations caused by mechanical vibration or insertion and removal.

Meanshile, the FC interface is standard for traditional high-precision instruments (such as spectrometers and test equipment), facilitating compatibility with existing systems. And in order t help better plug and unplug the connectors, we can provide long end caps (or called tethered dust cover) as left:

SEND INQUIRY>>>

Custom PM Patch Cord

Due to PM patch cord is specially used in Fiber laser, Fiber amplifier, Testing instrument,Optical lab use, so the real requirements will differ a lot, support customized for below parameters:

Operating Wavelength

350nm, 460nm,630nm,780nm, 850nm, 980nm, 1064nm,1310nm, 1480nm, 1550nm, 1570nm, etc

Fiber Brand

Fujikura, Corning, YOFC, Coherent, Fibercore, Nufern, etc

Fiber Pigtail Diameter

250um bare fiber, 900um loose tube, 3mm cable, 5mm cable or armored cable

Fiber Pigtail Length

0.5m, 1m, 2m, 3m, 4m, 8m, ... to 80meters

Fiber Connectors

SC/UPC, SC/APC, FC/UPC,FC/APC, LC/UPC, LC/APC, MU/PC, etc

PM Patch Cord Buying FAQ

Yingda are fiber patch cord factory, no middle man, competitive price, please rest assured to buy.

We only do TT, no credit, hope understanding and support. Then we can focus on our product quality more to help build long term business partnership.

We recommend using specialized equipment to test polarization maintaining patch cables, so as to ensure accuracy and stability, such as a polarization extinction ratio tester, 3D interferometer, and OTDR.

You can use a fiber optic cleaning pen or a fiber optic cleaning kit to clean the connectors. When cleaning PM patch cords, pay special attention to the alignment of the fast and slow axes. Avoid rotation or lateral force during cleaning to prevent polarization shift.

Common PM fiber patch cord connectors include FC/UPC, FC/APC, LC/APC, SC/UPC, and SC/APC.

If PM fiber have stock, very fast about 3-5days. If no fiber, we should buy from the specified agent, the lead time will depend on them, and it will take about 1 week to pre terminated fiber optic cables.

Accept smal orders, 1piece is ok, if we have fiber stock. If not, will depend on fiber MOQ.

Timely Delivery

High productivity efficiency, skilled front-line operators and strict production control ensure timely delivery.

Quality Assurance

High-precision testing equipment and top industry quality control system ensure high quality standards.

Competitive Price

Long-term stable supply chain and cost control that changes in line with market trends ensure the best price
