Description
Panda-type polarization-maintaining optical fiber is manufactured using PCVD (plasma vapor deposition) technology, and has the characteristics of tight refractive index distribution, good cross-sectional geometric symmetry, and excellent optical performance.

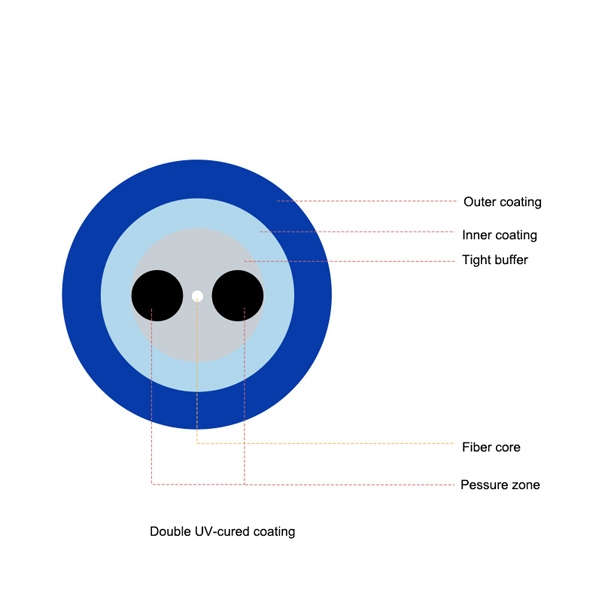

This polarization-maintaining optical fiber uses a UV-cured double-coating structure, and the optical fiber has stable environmental performance and can work in a temperature range of -50~80℃.
Features:
- Small axis deviation
- Various polarization-maintaining fiber types can be selected 850nm, 980nm, 1310nm, 1550nm
- Good compatibility with standard connectors
- High Return Loss
- High Extinction Ratio
- Low Insertion Loss
- Excellent environmental stability and reliability
Specifications:
| Parameter | Single Mode Fiber | |||
| Connector type | UPC | APC | ||
| Operating wavelength (nm) | 980, 1064, 1310, 1550 | |||
| Grade | P | A | P | A |
| Insertion loss (dB) | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.5 |
| Extinction ratio (dB) | ≥25 | ≥23 | ≥25 | ≥23 |
| Return loss (dB) | ≥55 | ≥50 | ≥65 | ≥60 |
| Repeatability (dB) | ≤0.1 | |||
| Changeability (dB) | ≤0.2 | |||
| Durability (times) | ≥1000 | |||
| Fiber Type | SM98-PS-U25A, SM13-PS-U25A or SM15-PS-U25A | |||
| Storage temperature (℃) | -40℃ ~ + 85 ℃ | |||
