The cleaning and maintenance of fiber optic adapters connectors directly affects the signal transmission quality and equipment life. Standard operation and regular maintenance are required to reduce signal attenuation caused by contamination by 90%. Yingda recommend a comprehensive maintenance of high-load equipment every quarter.
Fiber Optic Adapters Connectors Cleaning Guidelines
Optical Fiber Cleaning Tool Selection
Wet Cleaning
For stubborn oil stains, use a lint-free optic cleaning swabs (2.5mm or 1.25mm) dipped in a dedicated fiber optic cleaner (non-alcohol) to wipe the end-face to avoid chemical residue.
Dry Cleaning
For general dust, press the one click cleaner pen on the adapter port. The internal rolling tape absorbs the dirt (a single press should result in two clicks).
Special Scenarios
MTP/MPO female connectors require wet cleaning, while MPO male connectors can use a cartridge cleaner cassette (the tape life is approximately 500 cycles).
Cleaning Procedure
1. Clean fiber optic adapters connectors immediately after removing the dust cap to avoid contamination.
2. Wipe the endface with a cotton swab in a single direction (not back-and-forth), moving in a spiral motion from the center outward.
3. After cleaning, inspect the endface for cleanliness using a fiber microscope. Any remaining particles require a second cleaning.
Fiber Optic Adapter Connectors Key Maintenance Measures
- Always keep the dust cap securely on adapter when not in use to reduce dust accumulation.
- Hold the adapter body when plugging or unplugging to avoid pulling on the fiber or impacting the port.
- Store fiber optic adapters connectors in a dry, dust-free environment with humidity below 60%.
- Monthly use an optical power meter to test signal loss. If abnormal, check for port contamination or casing degradation.
Fiber Optic Adapter Connectors DON’TS
- Do not wipe the fiber optic adapters connectors end face with your fingers or ordinary paper towels, as sebum and fibers can cause further contamination.
- Avoid spraying alcohol directly on fiber adapters, as improper evaporation can easily form a ring of stains.
- When use hybrid adapters, ensure the interface types match; plug in wrong adapter interface may damage the ceramic sleeve.
Fiber Optic Adapters Connectors FAQ
How often should I clean my fiber optic adapters connectors?
Yingda recommend a quarterly cleaning of fiber optic adapters to maintain high performance and extend their lifespan. Before each deployment or connection, inspect the endface and clean immediately if contamination is detected to avoid transmission errors. The cleaning frequency should be adjusted based on the actual operating environment. For example, cleaning should be increased in dusty and frequently used locations.
What brands of fiber optic adapters connectors are recommended?
Yinda is one of China’s most competitive fiber optic adapters connectors manufacturer. We have a large inventory of standard adapters, hybrid adapters, bare fiber test adapters, and fiber adapter with shutters, female to male adapters with fast delivery, low loss, and telecom standards. Customer logo can be print on the adapter.
How to determine whether a fiber optic adapter needs cleaning?
After disconnecting the device, visually inspect the fiber endface for dust, fingerprints, or oil stains. If the endface’s reflection is dim or uneven, it’s usually contaminated.

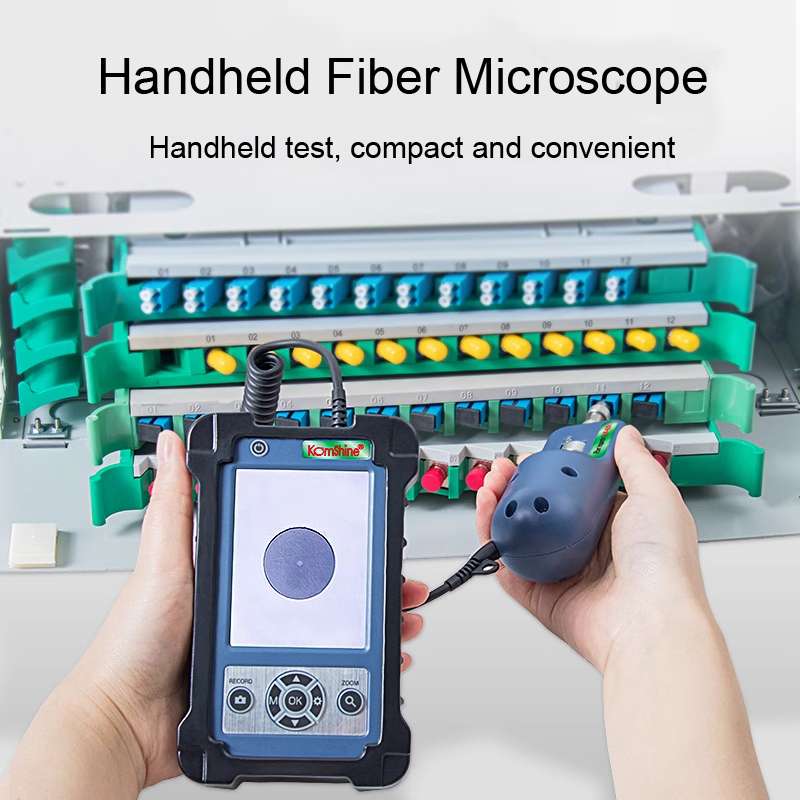

Use a 400x fiber microscope to inspect the endface for details. If there are obvious scratches, pits, or contaminants (such as dust or water stains), clean them immediately.
