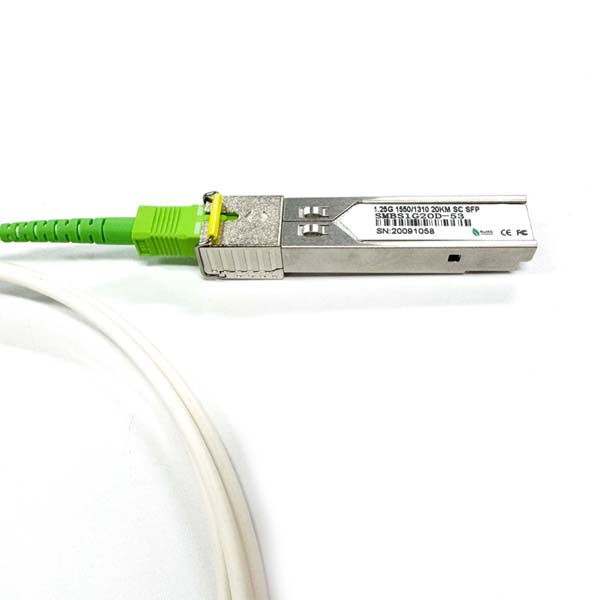

1G SFP SX Small Form Factor Pluggable Transceiver T1550 R1310 20KM DDM SC Commerical Use For Huawei, H3C Wwitch, Server, OLT, Low EMI, Stable Signal Transimission

Description

SFP Module Full Form Features

• Single Mode bi-directional Transmission
• SFP Multi-source Package with SC Receptacle
• Up to 1.25G Data Links
• Hot-Pluggable Capability
• Up to 20Km on 9/125μm SMF
• Single +3.3V Power Supply
• Built-in WDM
• Isolation > 30dB, Cross Talk < -45dB
• Metal Enclosure, Excellent EMI & ESD Protection
• Monitoring Interface Compliant with SFF-8472
• Compliant with Specifications for IEEE802.3
• Compliant with Bellcore TA-NWT-000983
• Eye Safety Designed to Meet Laser   Class1, Compliant with IEC60825-1
• RoHS Compliant

SFP Module Full Form Application

• Fast Ethernet
• SDH STM-1/ SONET OC-03
• WDM Application

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.5	4.5	V
Storage Temperature	Ts	-40	+85	°C
Operating Humidity	–	5	85	%

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Tc	0		+70	°C
Power Supply Voltage	Vcc	3.13	3.3	3.47	V
Power Supply Current	Icc			300	mA
Data Rate			1.25		Gbps
			1.06

Optical and Electrical Characteristics (FP and PIN, 1550nm, 20km Reach)

Parameter		Symbol		Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength			λc	1530	1550	1570	nm
Spectral Width (RMS)			∆λ			9	nm
Average Output Power			Pout	-9		-3	dBm	1
Extinction Ratio			ER	9			dB
Optical Rise/Fall Time (20%~80%)			tr/tf			0.16	ns
Data Input Swing Differential			VIN	400		1800	mV	2
Input Differential Impedance			ZIN	90	100	110	Ω
TX Disable	Disable			2.0		Vcc	V
	Enable			0		0.8	V
TX Fault	Fault			2.0		Vcc	V
	Normal			0		0.8	V
Receiver
Centre Wavelength			λc	1290	1310	1330	nm
Receiver Sensitivity						-24	dBm	3
Receiver Overload				0			dBm	3
LOS De-Assert			LOSD			-26	dBm
LOS Assert			LOSA	-30			dBm
LOS Hysteresis				1		4	dB
Data Output Swing Differential			Vout	400		1800	mV	4
LOS			High	2.0		Vcc	V
			Low			0.8	V

Notes:

1. Theoptical power is launched into SMF.
2. PECLinput, internally AC-coupled and terminated.
3. Measuredwith a PRBS 223-1 test pattern @1250Mbps, BER ≤1×10-12.
4. Internally AC-coupled.

SFP Module Full Form Product Details

The SFP Module Full Form consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and control unit. All modules satisfy class I laser safety requirements. The gold-plated contacts on the surface of the gold fingers are thickened to enhance conductivity and allow for repeated insertion and removal. It can be used together with SC patch cords for termination connection.

Single-fiber bidirectional optical transceiver modules must be used in pairs. The SC square connector can be used with single-mode fiber optic patch cords to achieve high-precision and accurate connection. It is plug-and-play, flexible and convenient.

Furthermore, the DDM function can monitor five parameters in real time: module temperature, laser bias current, antenna number 6, transmit optical power, and receive optical power, thereby quickly locating the fault in the fiber optic link, simplifying maintenance, and improving system reliability.

All 1.25Gbps SFP module full form offered by Yingda use high-quality imported chips to ensure low power consumption and a stronger, more stable signal. High-quality lasers ensure high-speed signal transmission without packet loss. The sfp transceivers can be used in wide range of fiber optic link: router, switch, server, network card, firewalls, media converter, etc.

Ordering Information

Part Number	Product Description
YD-S121513-S3320C	TX1550nm, RX1310nm, 1.25Gbps, SC, 20km,  0°C~+70°C
YD-S121513-S3320T	TX1550nm, RX1310nm, 1.25Gbps, SC, 20km, -40°C~+85°C
YD-S121513-S3320E	TX1550nm, RX1310nm, 1.25Gbps, SC, 20km, -20°C~+85°C
