Description
SFP Module Full Form Features
- Single Mode bi-directional Transmission
- SFP Multi-source Package with SC Receptacle
- Up to 1.25G Data Links
- Hot-Pluggable Capability
- Up to 20Km on 9/125μm SMF
- Single +3.3V Power Supply
- Built-in WDM
- Isolation > 30dB, Cross Talk < -45dB
- Metal Enclosure, Excellent EMI & ESD Protection
- Monitoring Interface Compliant with SFF-8472
- Compliant with Specifications for IEEE802.3
- Compliant with Bellcore TA-NWT-000983
- Eye Safety Designed to Meet Laser Class1, Compliant with IEC60825-1
- RoHS Compliant
SFP Module Full Form Application
- Fast Ethernet
- SDH STM-1/ SONET OC-03
- WDM Application
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage | Vcc | -0.5 | 4.5 | V |
| Storage Temperature | Ts | -40 | +85 | °C |
| Operating Humidity | – | 5 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature | Tc | 0 | +70 | °C | |
| Power Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V |
| Power Supply Current | Icc | 300 | mA | ||
| Data Rate | 1.25 | Gbps | |||
| 1.06 |
Optical and Electrical Characteristics (FP and PIN, 1550nm, 20km Reach)
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | 1530 | 1550 | 1570 | nm | |||
| Spectral Width (RMS) | ∆λ | 9 | nm | |||||
| Average Output Power | Pout | -9 | -3 | dBm | 1 | |||
| Extinction Ratio | ER | 9 | dB | |||||
| Optical Rise/Fall Time (20%~80%) | tr/tf | 0.16 | ns | |||||
| Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
| TX Disable | Disable | 2.0 | Vcc | V | ||||
| Enable | 0 | 0.8 | V | |||||
| TX Fault | Fault | 2.0 | Vcc | V | ||||
| Normal | 0 | 0.8 | V | |||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1290 | 1310 | 1330 | nm | |||
| Receiver Sensitivity | -24 | dBm | 3 | |||||
| Receiver Overload | 0 | dBm | 3 | |||||
| LOS De-Assert | LOSD | -26 | dBm | |||||
| LOS Assert | LOSA | -30 | dBm | |||||
| LOS Hysteresis | 1 | 4 | dB | |||||
| Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
| LOS | High | 2.0 | Vcc | V | ||||
| Low | 0.8 | V | ||||||
Notes:
- Theoptical power is launched into SMF.
- PECLinput, internally AC-coupled and terminated.
- Measuredwith a PRBS 223-1 test pattern @1250Mbps, BER ≤1×10-12.
- Internally AC-coupled.
SFP Module Full Form Product Details

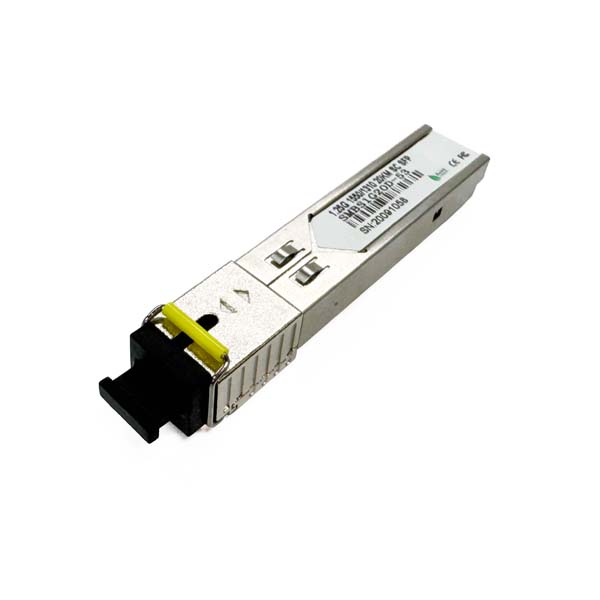

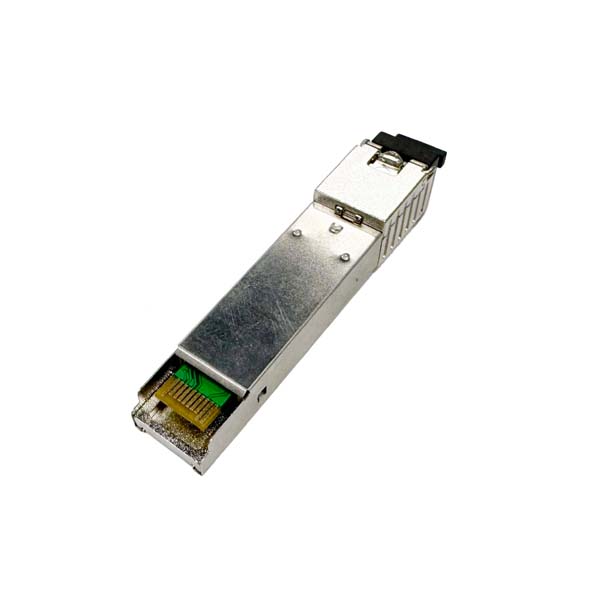

The SFP Module Full Form consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and control unit. All modules satisfy class I laser safety requirements. The gold-plated contacts on the surface of the gold fingers are thickened to enhance conductivity and allow for repeated insertion and removal. It can be used together with SC patch cords for termination connection.

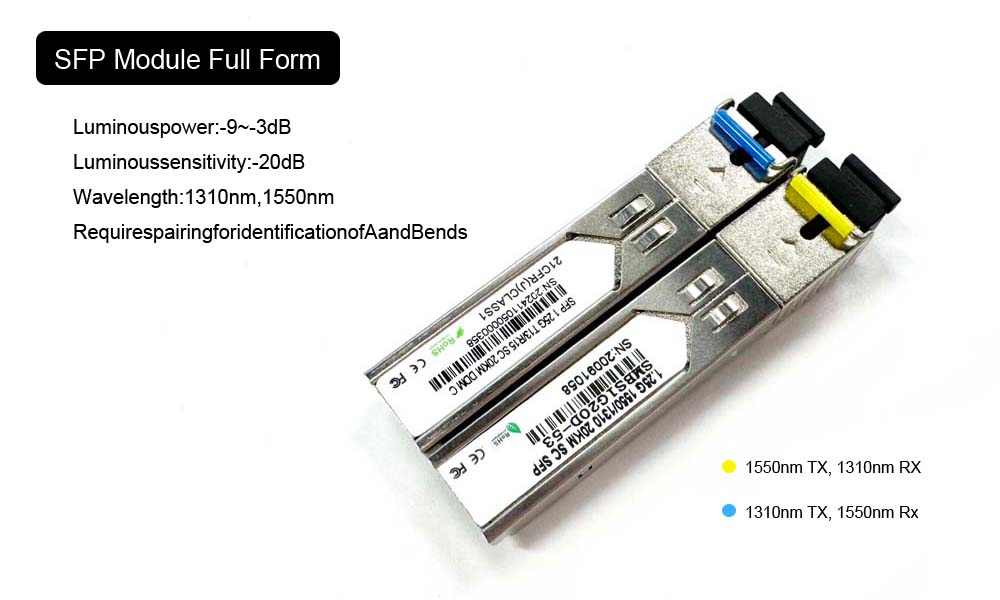

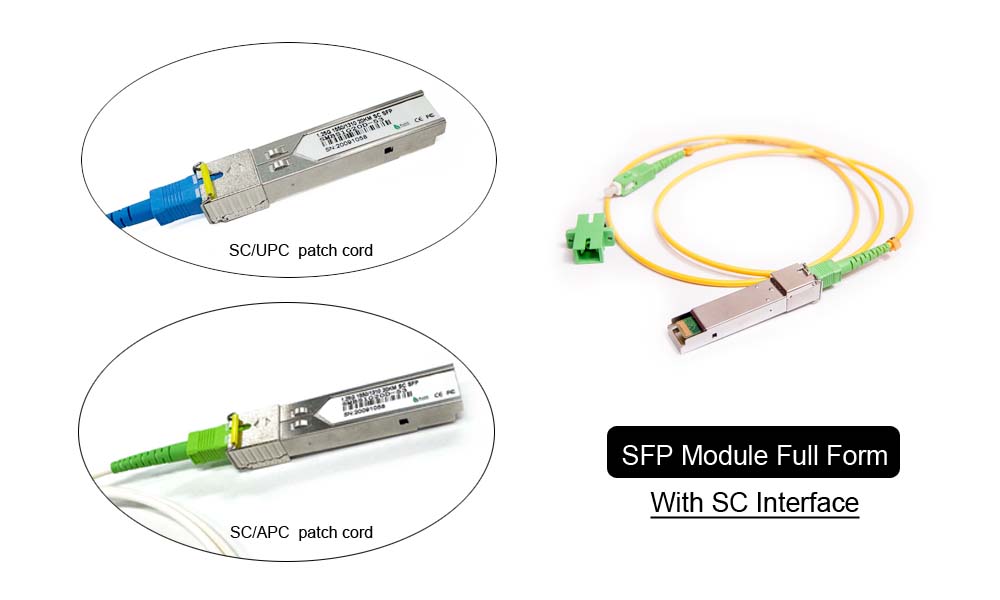

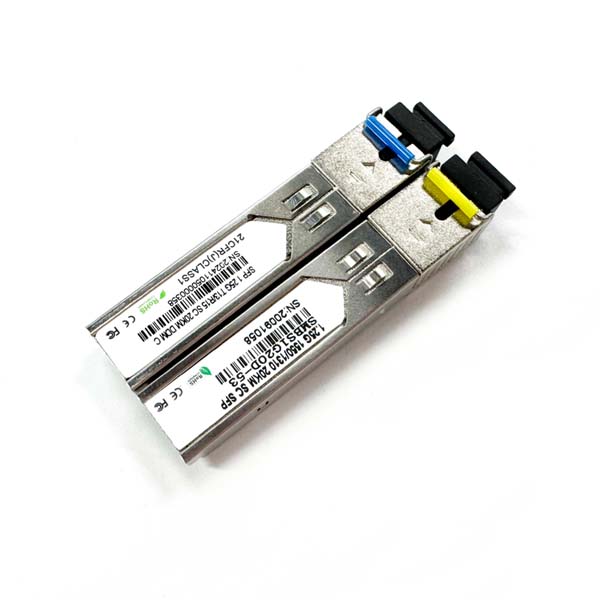

Single-fiber bidirectional optical transceiver modules must be used in pairs. The SC square connector can be used with single-mode fiber optic patch cords to achieve high-precision and accurate connection. It is plug-and-play, flexible and convenient.

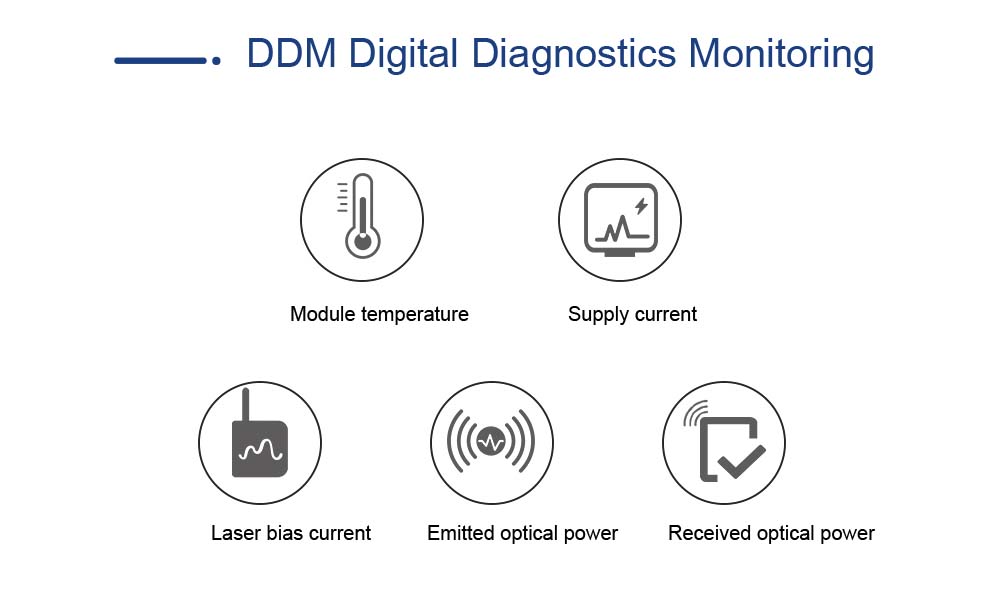

Furthermore, the DDM function can monitor five parameters in real time: module temperature, laser bias current, antenna number 6, transmit optical power, and receive optical power, thereby quickly locating the fault in the fiber optic link, simplifying maintenance, and improving system reliability.
All 1.25Gbps SFP module full form offered by Yingda use high-quality imported chips to ensure low power consumption and a stronger, more stable signal. High-quality lasers ensure high-speed signal transmission without packet loss. The sfp transceivers can be used in wide range of fiber optic link: router, switch, server, network card, firewalls, media converter, etc.
Ordering Information
| Part Number | Product Description |
| YD-S121513-S3320C | TX1550nm, RX1310nm, 1.25Gbps, SC, 20km, 0°C~+70°C |
| YD-S121513-S3320T | TX1550nm, RX1310nm, 1.25Gbps, SC, 20km, -40°C~+85°C |
| YD-S121513-S3320E | TX1550nm, RX1310nm, 1.25Gbps, SC, 20km, -20°C~+85°C |
