What are the main technical parameters of adapter fiber optic?

When buying adapter fiber optic, many customer may to share the data sheet with them. So what is on the data sheet? And why every customer need the data sheet?

Fiber optic parameter tables typically list details such as product dimensions, packaging, and technical specifications. Customers can refer to these tables to determine if meet their needs and decide on a purchase. To better serve our customers, Yingda provides a clear table for each adapter fiber optic.

fiber adapter series

Let’s take below adapter table as an example to explain several key parameters.

Item (interface type)SC shutter adapter
End face polishing typeUPC APC PC
Fiber countsimplex
Working wavelength1200-1600nm
Insertion loss≤0.2dB
Repeatability≤0.1dB
Interchangeability≤0.2dB
Sleeve materialCeramic
working temperature-40 ~+75℃
Storage temperature-40 ~+85℃
Mating times>1000
Temperature and humidity agingTemperature 85 ℃, 85% relative humidity, 14 days
Temperature cycleTemperature -40~+75℃, relative humidity of 10% -80%, 42 cycles, 14 days
Immersion in waterTemperature 43 ℃, pH 5.5, 7 days
VibrationAmplitude 1.52mm, frequency 10Hz-55Hz, 2 hours in each of the X, Y, and Z directions
StandardsYD/T 1272.1-2003
Package50 pcs/box

The main technical specifications of adapter fiber optic include interface compatibility, performance indicators, and physical characteristics, below will introduce one by one:

Adapter Fiber Optic Interface Type

Adapters must be compatible with various fiber optic connector interfaces, such as FC (metal thread lock), SC (square plastic housing), LC (small high-density), and ST (bayonet screw lock), to ensure compatibility with other devices.

Adapter Fiber Optic Endface Polishing

There are 3 types of fiber end face: PC (micro-sphere), UPC (ultra-flat), and APC (8° tilt angle).

  • UPC and APC are both used for single mode fiber. And APC (green housing) has a return loss of ≤-60dB and is suitable for high-sensitivity scenarios such as CATV/PON.
  • PC is mainly used for multimode fiber, according to the different fiber type, the adapter  housing color differs. OM1/OM2 beige, OM3 Aqua, OM4 Violet / rose red, OM5  Lime green.

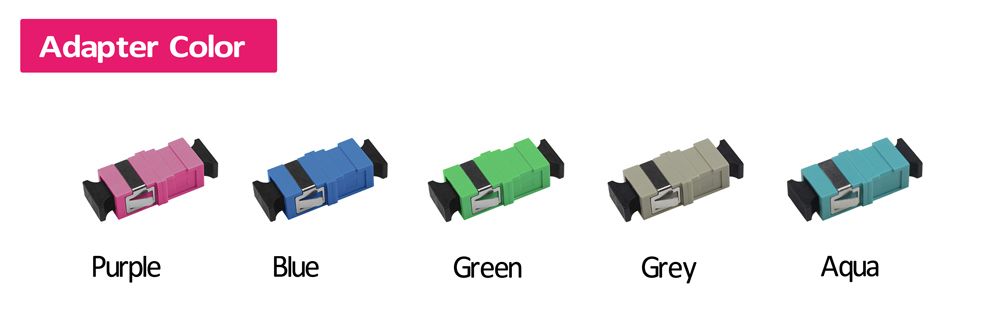

fiber adapter color

Adapter Fiber Optic Performance Specifications

The standard insertion loss ≤0.2dB, which ensures signal transmission efficiency and supports 10G/40G high-speed transmission, meeting modern network demands.

Yingda fiber adapter attenuation control achieved through rigorous testing, minimizes power loss.

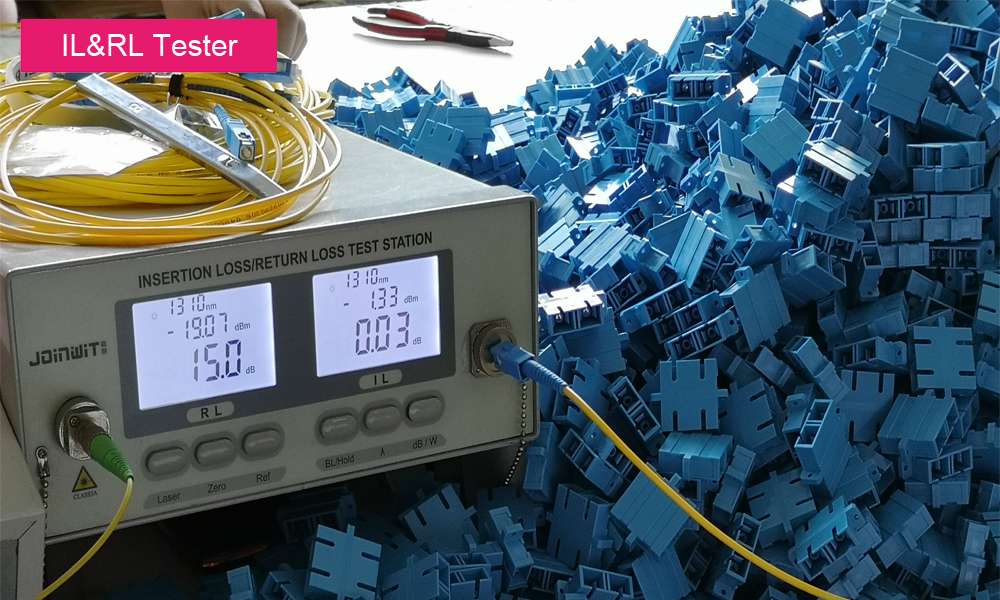

il&rl tester

Adapter Fiber Optic Material and Physical Properties

  • The ceramic sleeve utilizes Grade A zirconium dioxide and features precise alignment (tensile strength 2-6N) to ensure end-face stability.
  • The housing is available in either engineering resin or metal, with a Class V flame-retardant design for enhanced safety.

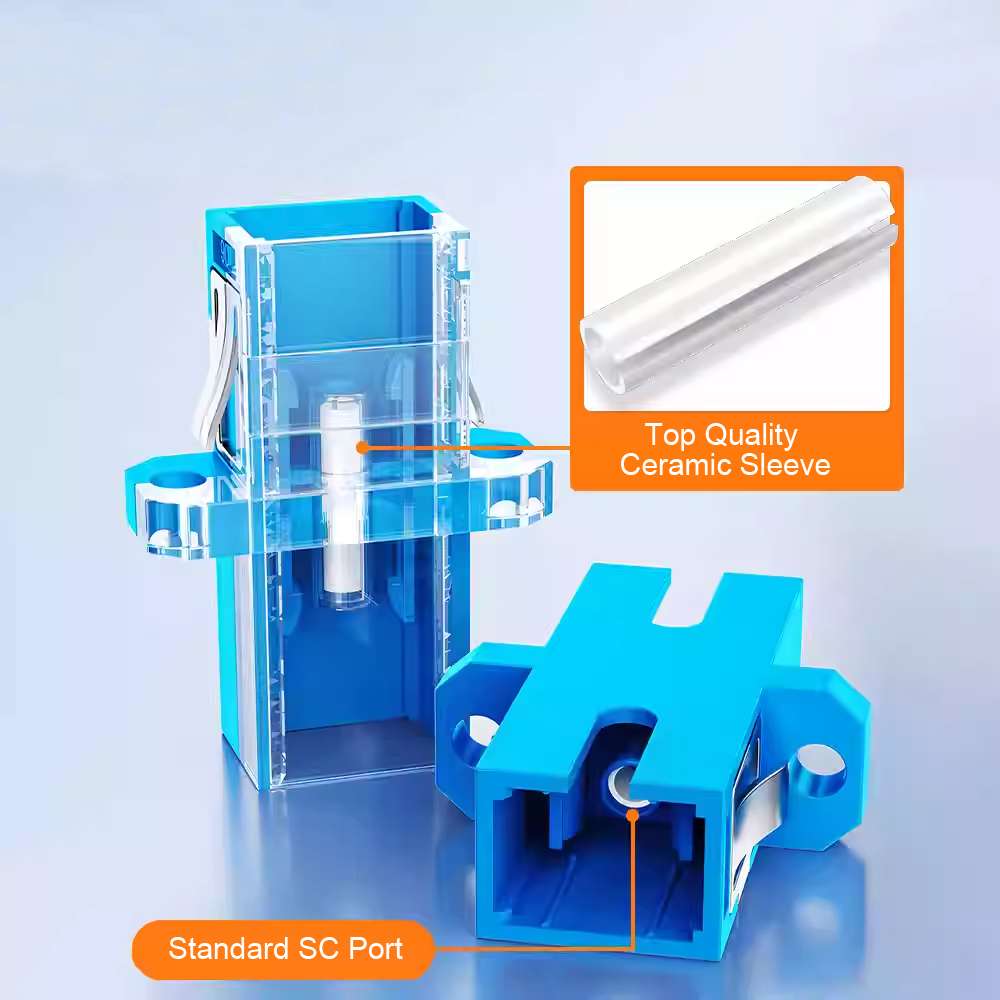

ceramic sleeve (2) (1)

Adapter Fiber Optic Durability and Standards

Yingda fiber optic adapters passed dual 85℃high and low temperature aging tests (85% humidity), complying with international standards such as ANSI/TIA-568-C.3, ensuring long-term reliability.

Adapter Fiber Optic Package Type

Yingda will configure different packaging methods according to the specific products.

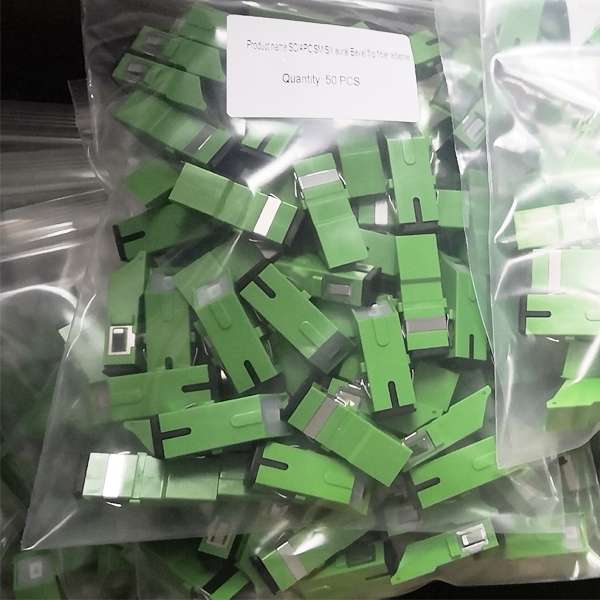

plastic bag for sc adapter with inner shutter

Plastic Bag: 50pcs/bag

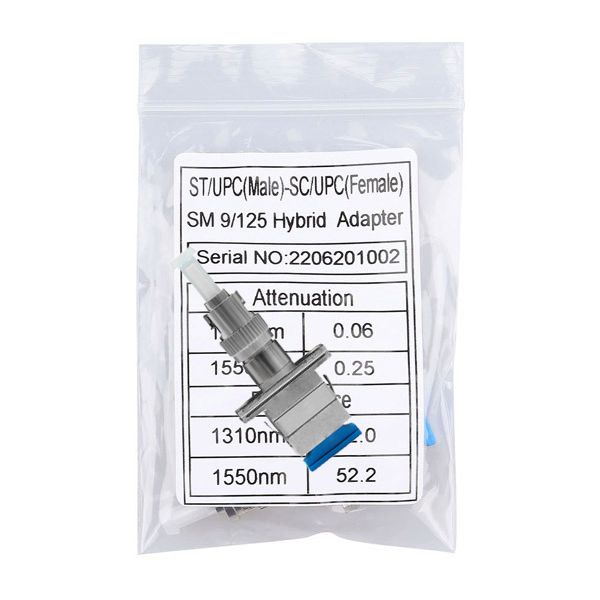

plastic bag for st to sc adapter

Plastic bag: 1pc/bag (hybrid adapter)

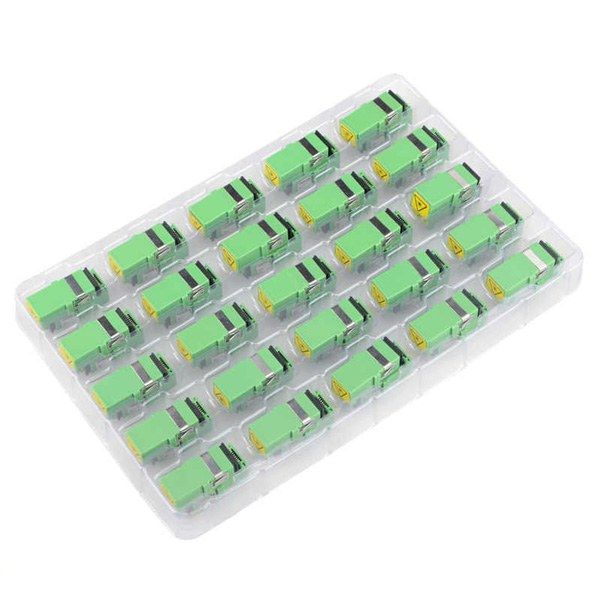

blister box for sc shutter adapter

Blister box: 25pcs/box
