Uniboot Patch Cord

Professional Uniboot Patch Cord Manufacturer

Uniboot Patch Cord is a duplex patch cord designed specifically for high-density cabling. Its core feature is the integration of dual fibers through a single tube structure, while supporting polarity conversion function.

  • Single tube dual fiber: Adopting an integrated boot design(also called Uniboot), integrating two optical fibers (A/B core) into a single sheath, saving 30% space and improving wiring density compared to traditional duplex fiber patch cord.
  • Compact connector boot: The LC Uniboot patch cordboot typically has a diameter of 3.0mm and is suitable for slots in high-density distribution frames (such as ODF frames). ‌
  • Tool-lessswitching: By rotating the duplex patch cord interface, the A/B core positions can be exchanged without the need for re termination or auxiliary tools, solving the tedious problem of traditional fiber jumpers polarity conversion.
  • Two polarity modes: Supporting direct (A-to-B) and cross (A-to-A) wiring to meet different device connection requirements.‌

Premium Uniboot Patch Cord Manufacturer

Uniboot patch cord is mainly used in data centers and fiber patch panel, interconnecting high-density devices such as servers and switches, optimizing heat dissipation and space utilization, supports fast plugging and polarity management.

Yingda provide various styles of uniboot patch cord, especially for LC patch cords. If you have details request, please feel free to contact us now.

  • SC/APC-SC/APC connectors
  • 2mm/3mm yellow cable
  • IL<0.3dB, RL>60dB
  • 1pc/bag
  • Blue LC UPC dual connectors at both sides with push pull tabs
  • Single mode 9/125um G657A2 cable LSZH yellow 3mm
  • IL<0.3dB, RL>50dB
  • 1pc/pack
  • Aqua LC PC dual connectors at both sides
  • Multimode OM3 50/125um cable LSZH aqua 3mm
  • IL<0.3dB, RL>30dB
  • 1pc/pack
  • SENKO CS® to LC/UPC duplex patch cord
  • Singlemode OS2 cable 9um G.657B3 LSZH  yellow 3mm
  • IL<0.3dB, RL>50dB
  • 1pc/pack
  • SENKO SN™ to SENKO SN™ patch cord
  • Singlemode 2 cores OS2 cable G.657A1 LSZH yellow 3mm
  • IL<0.3dB, RL>50dB
  • 1pc/pack
  • DLC cable assembly with NSN boot patch cord
  • Singlemode 2 cores OS2 cable G.657A2 LSZH 5mm
  • IL<0.3dB, RL>50dB
  • 1pc/pack
  • Fullaxs DLC cable patch cord
  • Single mode 2 cores G.657A2 LSZH black 5mm
  • IL<0.3dB, RL>50dB
  • 1pc/pack
  • ODVA DLC to LC duplex patch cord
  • Single mode 2 cores G.657A2 LSZH black 5mm
  • IL<0.3dB, RL>50dB
  • 1pc/pack

Uniboot Patch Cords Production Process

The production process of optical fiber patch cords generally includes several steps: cable cutting, threading of loose parts, stripping, insert fibers into ceramic ferrule, glue injection and heat oven,  crimping of patch cord boot and main body,  end face grinding, end face checking, IL RL testing, labeling, and shipment.

Uniboot Patch Cord Types

Two common types of Uniboot patch cords are LC LC duplex patch cords and SC SC duplex patch cords. Duplex LC cable is the most common. Because the LC ferrule is only 1.25mm and half the size of the SC connector, it is widely used in high-density cabling systems. However, due to its small size, it is difficult to insert and remove after wiring. This led to the invention of PUSH-PULL TABS. Currently, each manufacturer in the market has developed its own push-pull tab, and customers can purchase according to their needs. SEND INQUIRY >>>

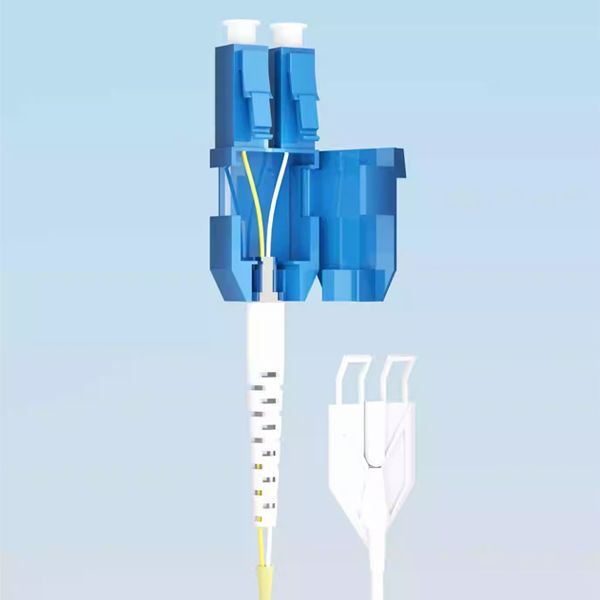

push pull tab
Uniboot Patch Cord Push Pull Tab Structure
lc/upc to lc/upc patch cord duplex 5 meter, yellow sm dx,g.657a2 lszh, with push pull rods
Patch Cord Duplex LC LC With Push Pull Tab SM
2 cores lc to lc patc hcord single mode g.657a2 lszh 1.5 m, dual lc with uniboot and long pull strip
Patch Cord Duplex LC LC With Push Pull Tab OM3

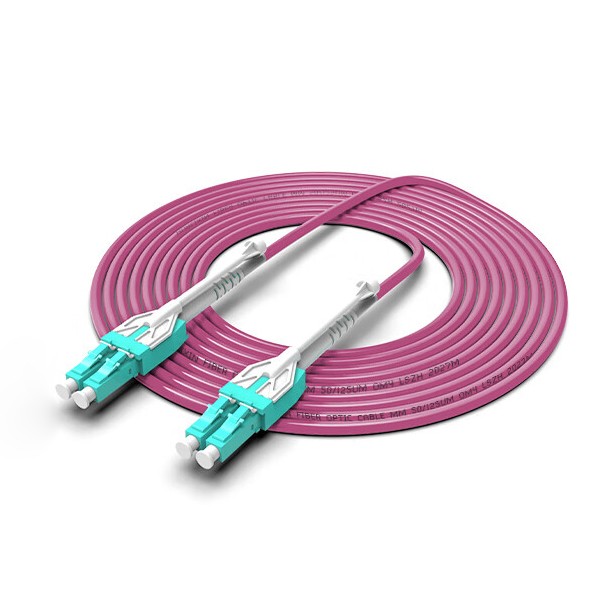

om4 uniboot patch cord lc lc
Patch Cord Duplex LC LC With Push Pull Tab OM4

Outdoor Uniboot Patch Cord Types

In addition to the commonly used uniboots for fiber optic patch cables, there are several types of outdoor patch cords which use uniboot too. Because outdoor waterproof connectors are equipped with a separate waterproof plug and have limited internal structure, uniboots are generally used for faster plugging and unplugging.

pdlc high performance outdoor fiber optic cable assembly outdoor use
PDLC with Uniboot LC Connector
nsn lc upc (uniboot) sc upc with fastener sm dx 5.0mm fiber optic patch cord
NSN with Uniboot LC Connector
ftta dual lc waterproof fiber optic patch cord with odva connector for 5g outdoor antenna
ODVA with Uniboot LC Connector
fullax dual lc (dlc) patch cord, single mode indoor 5g high speed networks
Fullaxs with Uniboot LC Connector

Unibody Patch Cord Types

In addition to uniboot patch cords, there are also unibody patch cords that also incorporate uniboot. For example, MTRJ and VF45 connectors are both dual-core connectors.

MTRJ Patch Cord

Dual-core integrated design (receiver transceiver integrated), with return loss up to -50dB (single-mode). Multimode versions support OM1/OM2 fiber and offer a bandwidth of up to 200MHz/km (850nm). Optimized for high-density indoor cabling, such as data centers and telecommunications equipment rooms. Particularly suitable for space-constrained environments like fiber-to-the-desktop (FTTD).

VF45 Patch Cord

Supports high-density duplex connections (separate transmit and receive) and complies with TIA/IEC standards. An integrated dust cover enhances long-term reliability. Excellent electromagnetic interference resistance makes it suitable for high-interference environments such as substations and railways. Primarily used in 10G/40G/100G high-speed network backbone links.
Uniboot Patch Cord Buying FAQ

Using LC uniboot connectors, it supports bidirectional transmission over a single fiber, improving space utilization by 50%.

It's ideal for dense cabling applications where space is limited.

The uniboot patch cord cable is usually 2mm, 3mm, 5mm, etc. If you have special needs, please contact us.

Yingda manufacturer and wholesale uniboot patch cord, if you only buy pieces, suggest to buy local, due to the freight cost is too high to afford.

Yes, we can print logo on the cable or stickers for better brand promotion. Please share details with sales team.

With rich experience of patch cord manufacturer, Yingda uniboot patch cord price are competitive with large scale production, wish help you seize more market.
