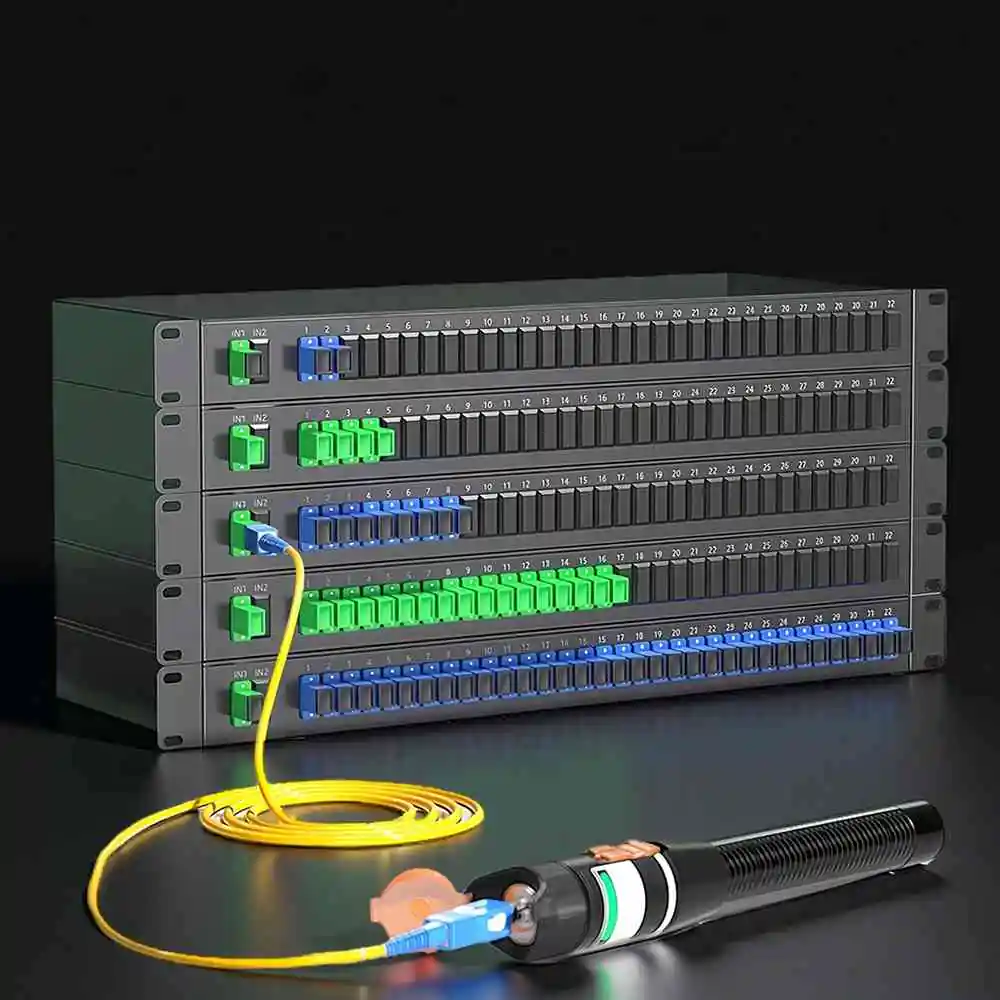

The Rack Mount Splitter is an optical splitter installed in a standard rack (such as a 19-inch or 23-inch rack). It features high integration, modular management, and easy maintenance. It is widely used in scenarios requiring centralized optical signal distribution.

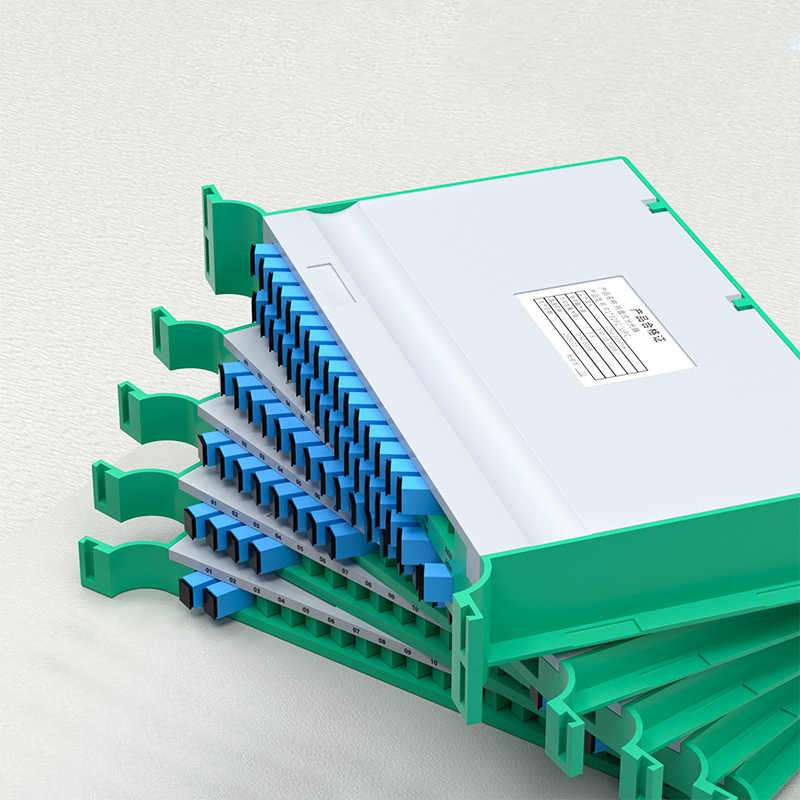

Yingda offer full range of splitter cassette with SC FC connectors, splitting ratio can be 1×2, 1×4, 1×8, 1×16, 1×32, 1×64 to 2×2, 2×4, 2×8, 2×16, 2×32, 2×64, send inquiry now.
Telecom Equipment Rooms and Central Offices
Rack-mounted optical splitters are widely deployed in optical distribution frames (ODFs) or fiber optic distribution closets within telecom operators’ equipment rooms or central offices. They centrally manage optical signal splitting and support access and distribution in large-scale fiber networks.
Fiber-to-the-Home (FTTH)
In FTTH networks, rack-mounted splitters are used to distribute optical signals between the central office equipment (OLT) and the user end (ONU/ONT). They are suitable for centralized wiring scenarios, such as optical splitting management in backbone fiber networks.
Passive Optical Network (PON)
Suitable for passive optical networks such as EPON, GPON, and XG-PON, rack-mounted splitters are installed in equipment room racks to achieve efficient optical signal distribution and meet high-bandwidth access requirements.
Data Centers
In data center optical interconnect systems, rack-mounted optical splitters are used to divide and manage optical signals, supporting high-density fiber cabling and modular expansion, and facilitating data center network upgrades and maintenance.
Cable Television (CATV) Systems
In CATV networks, rack-mounted splitters are used for centralized optical signal distribution, ensuring efficient signal transmission to multiple users. They are often deployed in the equipment rooms of CATV master or relay stations.
Fiber Optic Testing and Monitoring Systems
In fiber optic network testing or monitoring scenarios, rack-mounted splitters are installed in test racks to support multi-channel optical signal distribution, facilitating network performance monitoring and troubleshooting.
Rack Mount Splitter Advantages
High Integration
The rack-mount design supports the integration of multi-channel (1×8, 1×16, 1×32, etc.) splitter modules, making it suitable for large-scale fiber networks.
Modular Management
Easily installs, expands, and replaces modules in a standard rack, improving O&M efficiency.
Wide Wavelength Range (1260-1650nm)
Compatible with multiple network protocols (such as EPON and GPON’s 1310nm, 1490nm, and 1550nm).
High Reliability
Ideal for equipment room environments, providing stable optical signal distribution and reducing signal loss.
Centralized Management
Supports unified fiber wiring and maintenance, making it suitable for scenarios requiring centralized control.
