Description
FC fusion splice-on connector is optical fiber type fast connector, but its splicing point inside the connector end, equivalently eliminate the pigtails when splicing. The advantage is no need additional protection after splice, such as splice tray, splice closure, or distribution boxes. In contract to the design of mechanical splicer, it save V-groove mechanical connector maintenance and operation cost and durable, which overturns the concept that high cost of splice machine and do not apply to FTTH construction.
FC Fusion Splice On Connector Features
- Low operation cost, high efficiency
- Quickly achieve the on-site termination connection
- Pressure welding parts adopt new unique structure design, installation without glue injection, no grinding, no consumables
- High installation quality, high success rate and installation fast, etc
- Accurate mechanical dimensions
- All materials conforms to ROHS
- Easy to carry
- Easy to operate or use
FC Fusion Splice On Connector Specification
| Model | YDFOSC003 |
| Connector type | FC/UPC, FC/APC |
| Cable type | 0.9mm, 2.0mm, 3.0mm, 3.1*2.0mm drop cable |
| Fiber diameter | 125um(G657A2 bare fiber) |
| Tight buffer diameter | 250um |
| Fiber type | Single mode OS1 9/125um |
| Insertion loss | ≤0.3dB |
| Return loss | ≤-50dB |
| Bare fiber solid tightness | ＞250g |
| Working temperature | -40℃-+80℃ |
| Tension strength | 60 N (5 kgs for 2 mins) |
| Drop test | 4 meters high cement floor direction at a time,in total 3 times |

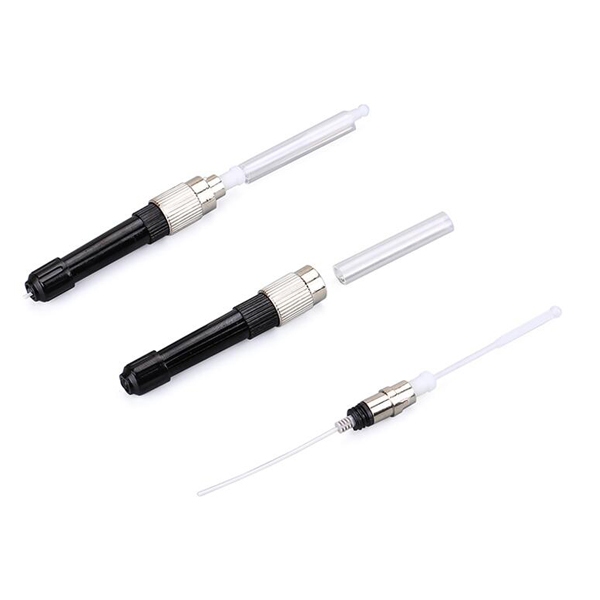

FC Fusion Splice On Connector Spare Parts
FC Fusion Splice On Connector Length

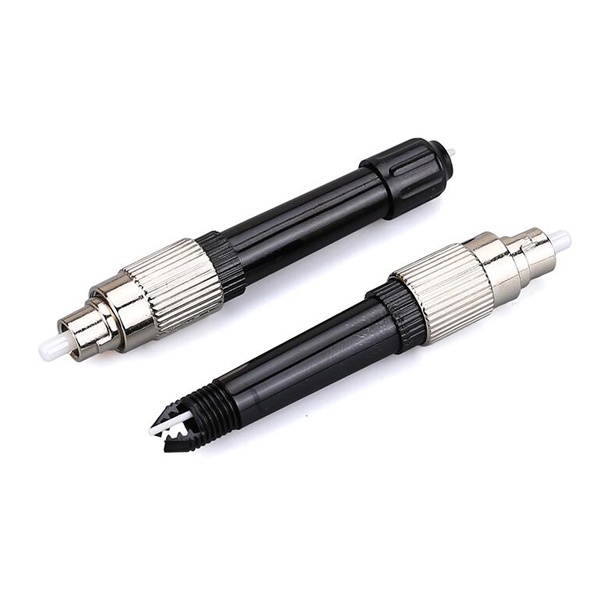

FC Fusion Splice On Connector Product Details
