Description
Yingda fast SC/APC connector to be mounted on a single-mode fiber end, without time-consuming gluing and polishing. The procedure does no require “sterile” conditions, because the end face of the built-in fiber fragment has been glued and polished by the manufacturer. The low loss at the level of 0.5dB is obtained thanks to advanced positioning of the inserted fiber end by V-shaped grooves. The optical gel that is also used in the connector reduces the effects of an imprecise cut and a possible gap between the end faces of the fibers.
LC Fast Connector Features
- Field installable, cost effective, user friendly;
- PC, APC polishing optional;
- No electricity required;
- FTTH cable 2*3mm，2*1.6mm or indoor fiber optic cable can be used;
- Reliable durable and superior optical performance
- Adopt Three Circle A-class ceramic ferrule, improves product stability, low loss and small change;
- Large scale production, mature technology, exquisite, which ensure the quality of connectors;
- Strong practicability and can be reused for more than 5 times;
- Stable operation performance, low insertion loss, low maintenance rate and fast installation speed;
- Each 100pcs will equip with 1pc length fixing device;
LC Fast Connector Application:
- Fiber to the home
- Broadband limited TV
- Intelligent broadband
- Fiber to the building
LC Fast Connector Technical parameters
| Model | YDFAC014 (LC fast connector) |
| Applicable for | Indoor cable 2.0mm, 3.0mm, or 2*3mm, 2*1.6mm drop cable |
| Optical fiber diameter | 125μm ( 657A & 657B ) |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s（no fiber cut） |
| Insert loss | ≤ 0.3dB（1310nm & 1550nm） |
| Return loss | > -45dB |
| Fastening strength of naked fiber | >4 N |
| Fastening strength of naked fiber holder | >8 N |
| Tensile strength | >10 N |
| Using temperature | -40～+75℃ |
| On-line tensile strength (20 N) | △ IL ≤ 0.5dB △ RL ≤ 5dB |
| Mechanical durability (500 times) | △ IL ≤ 0.5dB △ RL ≤ 5dB |
| Drop-off test (drop-off height 4m,
once per direction, totally 3 times) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |

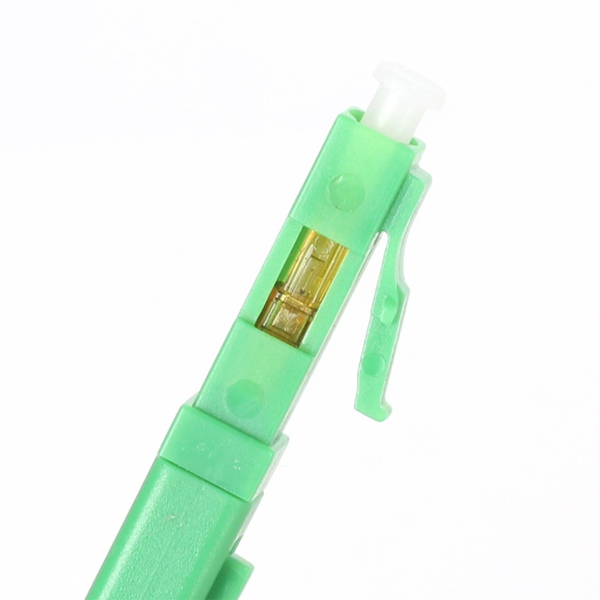

LC Fast Connector Types
There are two types of LC fast connector LC/UPC, LC/APC. Both types use the same outer appearance and internal structure, but different ferrule and housing color for different application request.
How to add fast connector with drop cable?
LC Fast Connector Package
Fast connector will be packed by plastic blister box 10 pcs/box, and then 100 pcs/inner cardboard box, and then 1000 pcs/carton box.
The length fix tool and the user manual will be configure with the inner box together before delivery.
