Description
YDFAC001 SC fast connector is a kind of connector which can solve the problem of ultra long distance wiring and fiber to the home project. It is widely used in the construction site of quick connection link, and provides a fast and stable connection during fiber optic construction. There is no need for glue curing and grinding in the field assembly, which provides a very fast and effective help for engineers on installation, maintenance and repair of fiber to the home project.
Fast Connector Features
- Screw round boot type, total length is only 52mm, suitable for most of small fiber optic box;
- Suitable for 2.0mm, 3.0mm round cable or flat 2*3mm drop cable;
- Plastic V groove structure, good sealing performance, environmentally friendly and flame retardant
- Adopt Three Circle A-class ceramic ferrule, improves product stability, low loss and small change;
- Large scale production, mature technology, exquisite, which ensure the quality of connectors;
- It has strong practicability and can be reused for more than 5 times;
- Stable operation performance, low insertion loss, low use cost, low maintenance rate and fast installation speed;
- Each 100 pcs will equip with 1pc length fixing device and 2pcs English user manual;
- Humanized structure design: preset limit point of drop cable at the boot, and automatically generate a small micro bend according to the correct cutting length of the product (see below figure). The micro bend indicates that the optical fiber has been in good contact with the embedded optical fiber, and the micro bend must exist, but not too large, otherwise the loss during the period will be affected.
- There is axial clamping force at the optical fiber joint. When the optical fiber is butted, the gap between the two optical fiber sections is almost zero, so the connection loss is less than 0.3dB.
SC Fast Connector Application:
- Fiber to the home
- Broadband limited TV
- Intelligent broadband
- Fiber to the building
Fast Connector Technical parameters
Model | YDFAC001 |
Insertion loss | PC: average≤0.2dB, Max.≤0.4dB
APC:average≤0.3dB, Max.≤0.5dB |
Return loss | PC≥45dB, APC≥55dB |
One-time assembly success rate | 97% |
Repeatability of assembly | ≥5 times |
Average assembly time | ≤3mins |
Life span | ≥30 years |
Tensile strength | ≥30N (2*3mm flat cable) |
Working temperature | -40 ~+85 ℃ |
Fast Connector Product Details

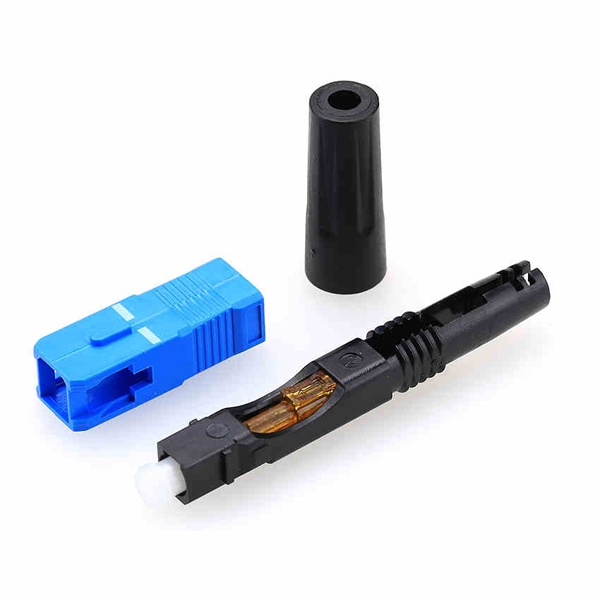

YDFAC001 Fast Connector Structure
This fast connector fiber optic is total 52mm length, not including the dust cap. The boot is round shape,screw on.
YDFAC001 SC Fast Connector Types
There are two types of SC fast connector in this series, SC UPC, SC APC fast connector. Both types use the same outer appearance and internal structure, but different ferrule and housing color for different application request.

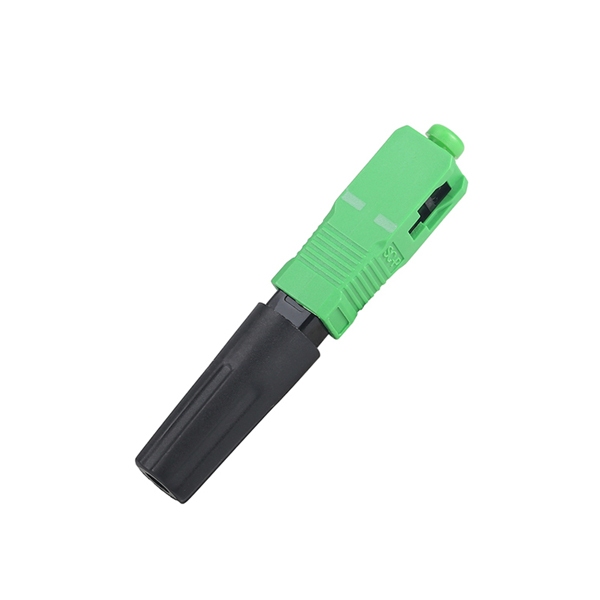

YDFAC001 SC Fast Connector
Fast connector will be packed by plastic blister box, 10 pcs/box, and then 100 pcs/inner cardboard box, and then 1000 pcs/carton box, the length fix tool and the user manual will be configure with the inner box together before delivery.
What is the difference of fast connector: 52mm vs 50mm ?
Due to the length difference, the internal structure of both type of fast connector are different, 52mm fast connector boot is arc shaped protrusion, while the 50mm is square smooth, not have arc; besides, when strip the fiber coating layer with miller stripper, 52mm should strip 20mm , which is longer 2mm than 50mm. If shorter, it will not match the fiber embedded inside. This is very important.
But however we have equipped with fiber stripping length tool together with the goods, on which there is length measures to help you do the right opersation
