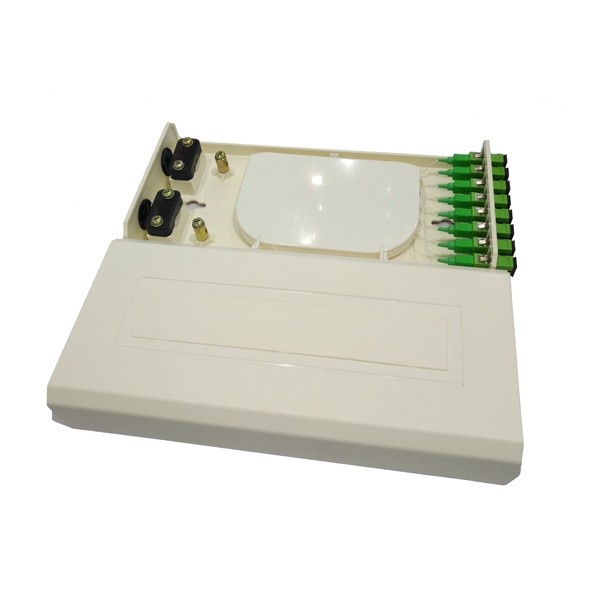

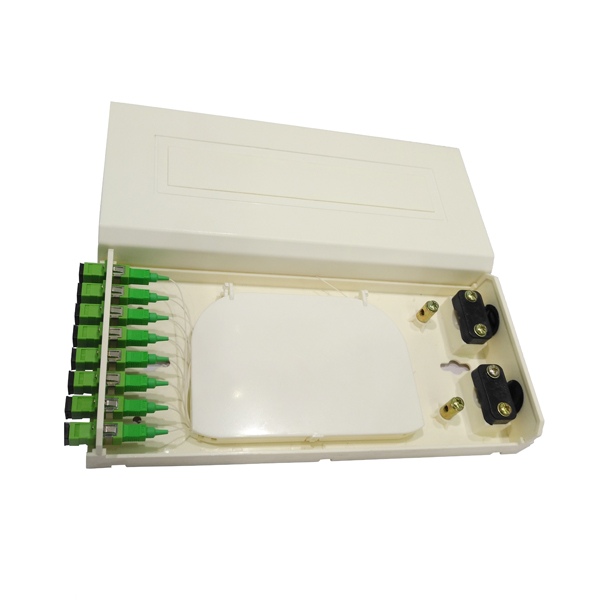

Description
Usage: Indoor fiber optic cable go through and branch connection
Application: all kinds of fiber-optic system wiring/distribution
Installation: wall mount
Features
- All performance indicators of this product comply with the requirements of the national standard YD/T925—1997.
- The box body is made of high-quality cold-rolled steel material, and the surface is treated with matte spray plastic technology, which has strong adhesion and is not easy to fall off, making it beautiful and durable.

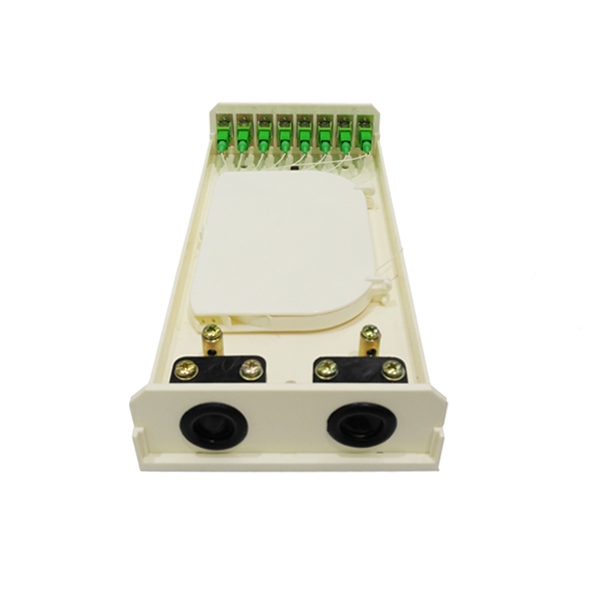

- The unique design of 1-2 cable entry ports and 1-12 core fiber exit ports enhances the flexibility of use.
- The cable entry and fiber exit ports inside the box are sealed with oil-resistant nitrile rubber parts. Users can choose to puncture and use the cable entry and fiber exit ports according to their needs, ensuring the sealing inside the box.
- The stacked structure of the fiber splicing tray and the independent insulation grounding device inside the box make the configuration, expansion of the number of fiber cores, and grounding of the optical cable flexible, convenient and safe.
Specification
| External dimensions (mm) | (Length*Width*Height) 285*132*49 |
| Weight | 0.45kg |
| Fiber curvature radius | ≥40mm |
| Additional Losses | Have no additional loss within the containment disc. |
| Retention length of optical fiber | ≥1.6m |
| Maximum capacity of optical fiber | 24 Core |
| Applicable temperature range | -40℃~+60℃ |
| Resisting lateral pressure | 500N |
| Shock Resistance | 750N |
