Description
CEx WDM Module (Coexistence WDM Module) is a wavelength coexistence device used for PON (Passive Optical Network) upgrades. It is designed to allow different generations of PON technologies, such as GPON, XGS-PON, and NG-PON2, to be transmitted simultaneously on the same optical fiber.
It is a transitional technology product that enables coexistence between old and new networks during network upgrades, facilitating smooth upgrades and saving fiber resources.
CEx type: GPON +XGS-PON + NG-PON2 Technical parameters
| Item | Parameter | Unit | Value |
| Band width | GPON Port | nm | 1290 -1330 & 1480-1500 |
| XGS-PON | nm | 1260 -1280 & 1575-1581 | |
| NG-PON2 | nm | 1524 -1544 & 1596-1625 | |
| Insertion loss | GPON Port | dB | <0.8 |
| XGS-PON | dB | <1.1 | |
| NG-PON2 | dB | <1.2 | |
| Isolation (for all ports) | dB | >30 | |
| PDL | dB | <0.2 | |
| Return loss | dB | >50 | |
| Directivity | dB | >50 | |
| Max. Optical power | mw | 300 | |
| connector | SC/APC | ||
| Storage temperature | ℃ | -40~+85 | |
| Operating temperature | ℃ | -5~+70 | |
Note:
- The above specifications include connector loss and can be customized.
- Packaging dimensions: ABS box: 100*80*10mm

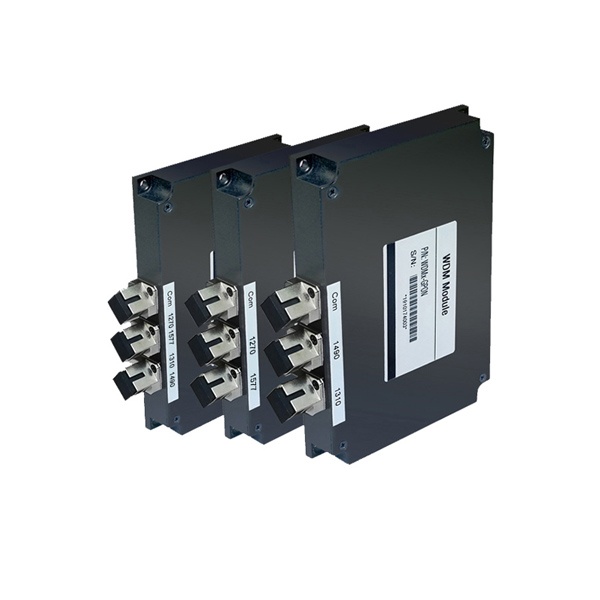

Various wavelengths are available

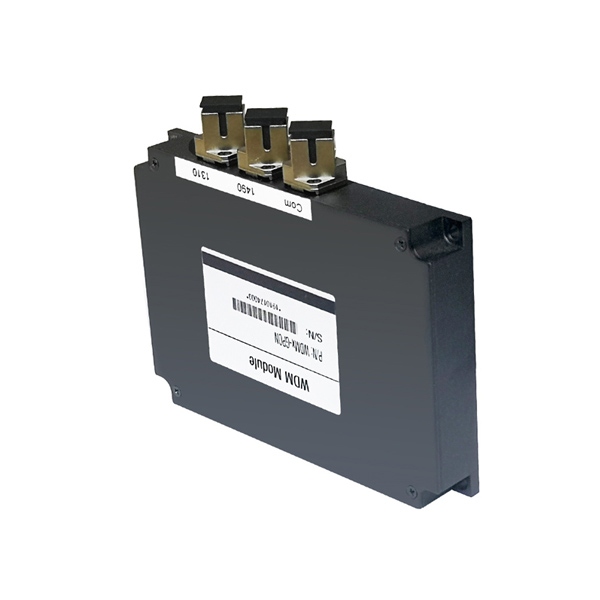

- GPON: 1490/1310nm

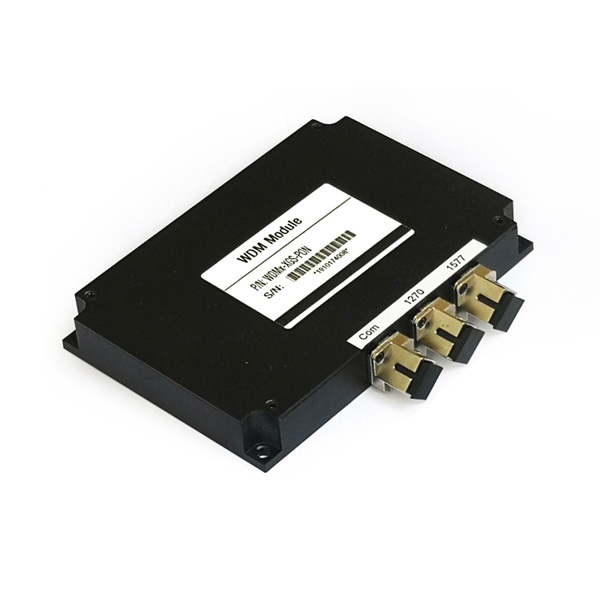

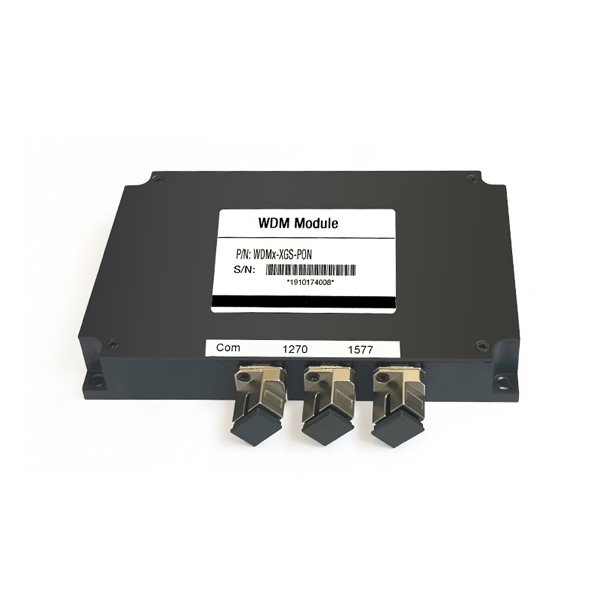

- XGPON&XGSPON:1270/1577nm
- GPON&XGPON&XGSPON:1270/1577 1490/1310nm
