Description

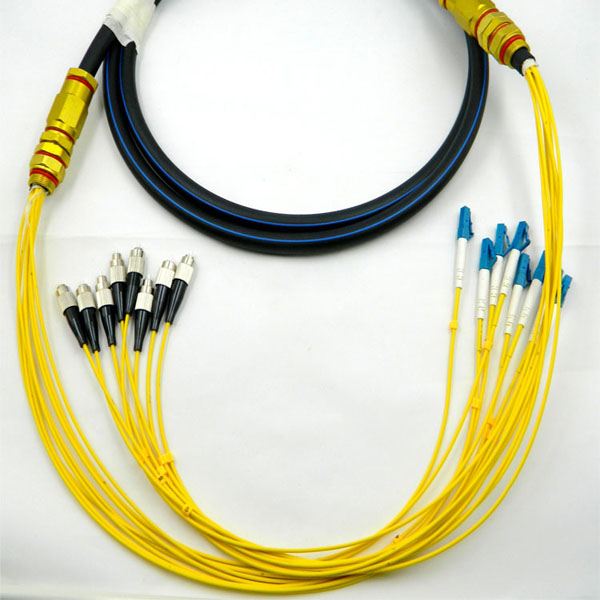

8 Fiber waterproof patch cord LC to FC adopt 8 core fiber optic cable around a central strength member to strand, the longitudinally wrap plastic composite tape and water blocking yarns, outside squeeze PE cable jacket, there will be colored coating inner sheath like blue, orange, green, brown…. to distinguish each fibers.
Waterproof Patch Cord LC to FC Features
- Waterproof tape around the package, good at water blocking, suitable for outdoor harsh environments;
- High strength steel to enhance tensile strength, good ground performance;
- Easy to install, simple and reliable, suitable for various connectors;
- More single-core cable design.
Waterproof Patch Cord LC to FC Mechanical Technical Indicators
| Fiber Core | outer dia. (mm) | weight (kg/km) | max. tension (N) | Min. bend radius (mm) | ||
| short term | long term | installation | working | |||
| < 6core | 9.8 | 80 | 1000 | 300 | 20D | 10D |
| 11.8 | 110 | 1000 | 300 | 20D | 10D | |
| Storage Temp.℃ | -40～+70 | |||||
| Operating Temp. ℃ | -20～+70 | |||||
Waterproof Patch Cord LC to FC Transmission Technical Parameters
| Wavelength | 850/1300nm | 1310/1550nm | ||
| Fiber type | Multi-mode fiber | G.652 | G.655 | |
| Core/coating dia. | 50/125um | 62.5/125um | / | / |
| Attenuation (dB/km) | ≤3.0/1.0 | ≤3.5/1.5 | ≤0.4/0.25 | ≤-/0.5 |
| Bandwidth (MHz·km) | ≥200/400 | ≥160/200 | / | / |

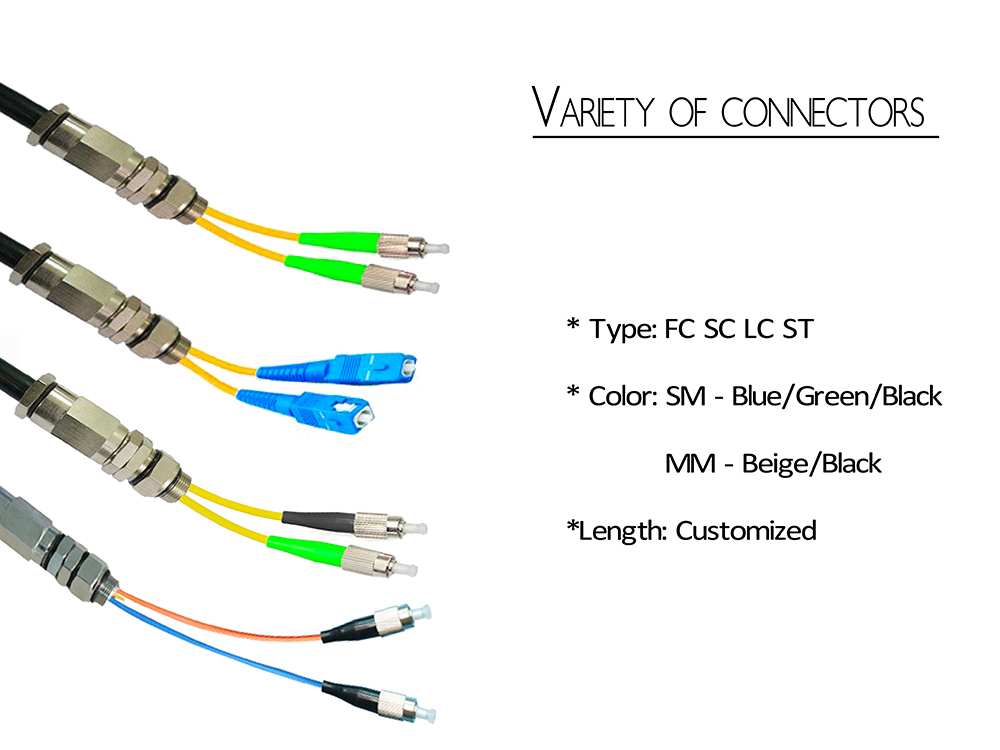

Yingda can add all types of fiber optic connectors for the waterproof cable, SC LC FC ST MTRJ E2000, et.
Custom cable length, diameter, cable color and fiber types on your request.
