Description

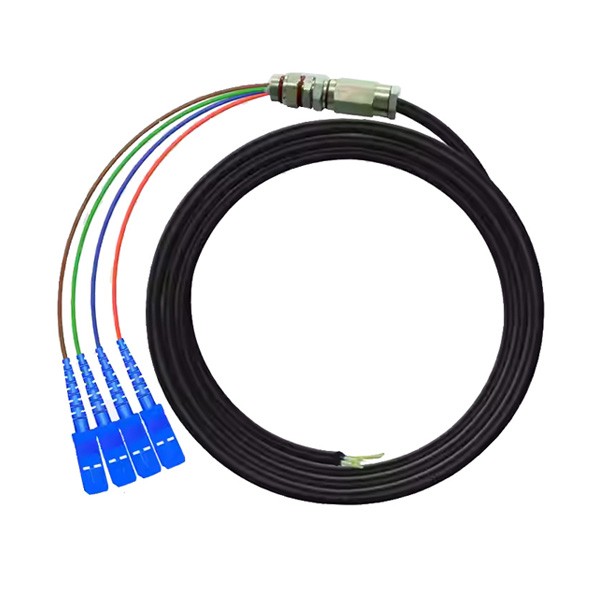

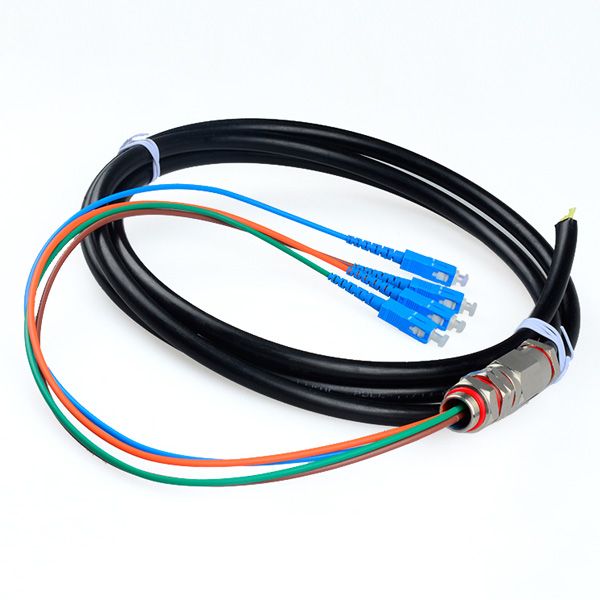

4 Cores waterproof fiber optic pigtail single mode adopt 4 core fiber optic cable around a central strength member to strand, the longitudinally wrap plastic composite tape and water blocking yarns, outside squeeze PE cable jacket, there will be colored coating inner sheath like blue, orange, green, brown to distinguish each fibers.
Fiber Optic Pigtail Single Mode Features
- Waterproof tape around the package, good at water blocking, suitable for outdoor harsh environments;
- High strength steel to enhance tensile strength, good ground performance;
- Easy to install, simple and reliable, suitable for various connectors;
- More single-core cable design.
Fiber Optic Pigtail Single Mode Mechanical Technical Indicators
| Fiber Core | outer dia. (mm) | weight (kg/km) | max. tension (N) | Min. bend radius (mm) | ||
| short term | long term | installation | working | |||
| < 6core | 9.8 | 80 | 1000 | 300 | 20D | 10D |
| 11.8 | 110 | 1000 | 300 | 20D | 10D | |
| Storage Temp.℃ | -40～+70 | |||||
| Operating Temp. ℃ | -20～+70 | |||||
Fiber Optic Pigtail Single Mode Transmission Technical Parameters
| Wavelength | 850/1300nm | 1310/1550nm | ||
| Fiber type | Multi-mode fiber | G.652 | G.655 | |
| Core/coating dia. | 50/125um | 62.5/125um | / | / |
| Attenuation (dB/km) | ≤3.0/1.0 | ≤3.5/1.5 | ≤0.4/0.25 | ≤-/0.5 |
| Bandwidth (MHz·km) | ≥200/400 | ≥160/200 | / | / |

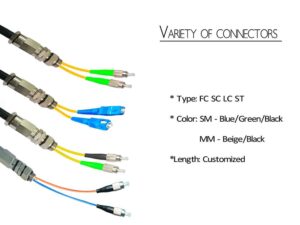

Yingda can add all types of fiber optic connectors for the waterproof cable, SC LC FC ST MTRJ E2000, et.
Custom cable length, diameter, cable color and fiber types on your request.

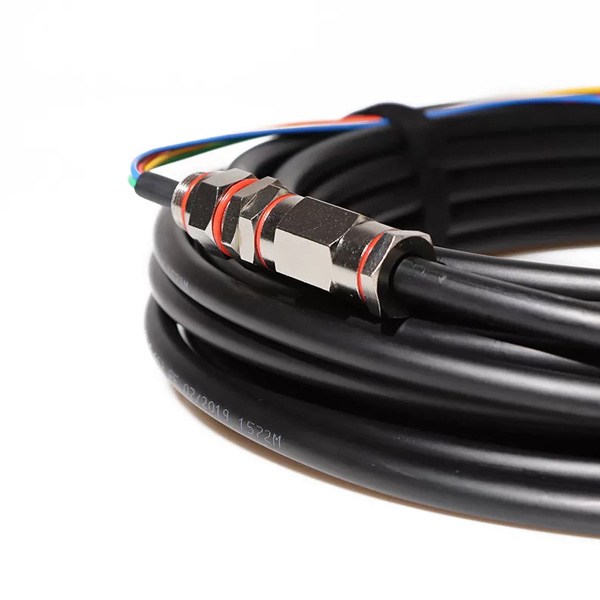

We adopt alumnium or copper waterproof plugs to prevent water from outside, and fanout pigtails with 2mm sub cables with be put inside of the fiber optic terminal boxes for direct docking. It is IP68 protection grade with top quality waterproof design.

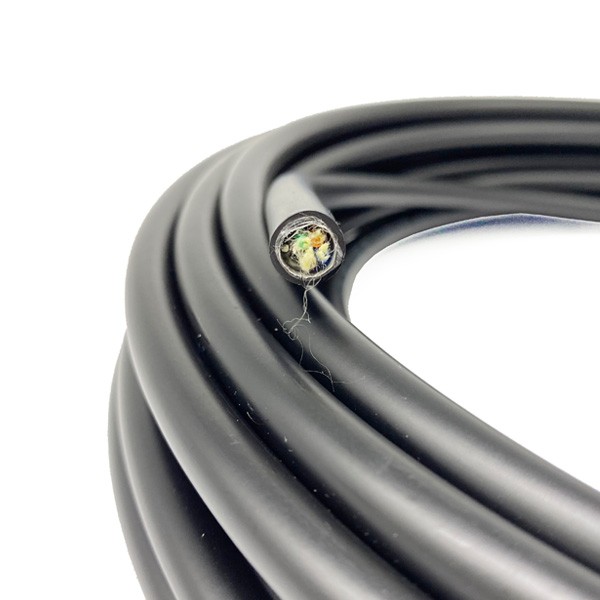

The waterproof cable outdoor are single mode fiber OS2 cable, the structure is with PE jacket, and then wrapped with a layer of water blocking yarn, then 4pcs 2.5mm sub-units color coated stranded, and in the middle is a solid steel strength member. It is round shape at 9.8mm cable diameter for less than 6 cores single mode fiber optic cable.
