Description
SM Patch Cord Features
- Employing neutral connection technology, quick connections can be made without the need for adapters or flanges.
- The locating pin design ensures correct one-time connection of multi-core optical fibers and allows for blind mating.
- The high-strength composite material housing is lightweight, high-strength, and effectively prevents electromagnetic interference, protecting equipment safety.
- Both connector plugs and sockets are equipped with dust covers to ensure connection quality.
- Standard ceramic pin and housing connection dimensions ensure full compatibility with existing equipment.
- Field cable trailer-mounted connectors with single-core field cables are available in FC, SC, LC, and ST types.
- Fiber optic cable winding devices can be customized to meet customer requirements.
SM Patch Cord Application
- Military optical communication network
- Communication vehicle transmission, long-distance space transmission, portable transmission tools for signal corps
- Long-distance video conferencing signal transmission in live-fire exercises
- Coal mines, oil wells, natural gas, etc.
- Geological exploration communication
- Broadcast and television transmission and relay
- Emergency restoration of fiber optic communication
SM Patch Cord Specification
| Item | YG Aviation Patch Cable |
| Fiber count | 2 to 12 cores |
| Insertion loss | Typical ≤1.0dB, typical≤0.5dB (Single mode) Typical ≤1.0dB, typical≤0.3dB (multi mode) |
| Return loss | ≥50dB |
| Mechanical properties | Plug≤720N, compatible with fiber optic cables 5.0mm and above. |
| Operating temperature | -40 ~+85≤℃ |
| Optical cable diameter | 5.0 ~ 8.5mm optional |
| Sheath material | TPU |
| Tensive unit | Kevlar |
| Bending radius | 10D (Dynamic), 20D (Static) |
| Fiber type | 9/125um, 50/125um, 62.5/125um |
| Tensive force | Short term:1500N, long term: 1200N |
| Compliance | ROHS |
SM Patch Cord Details

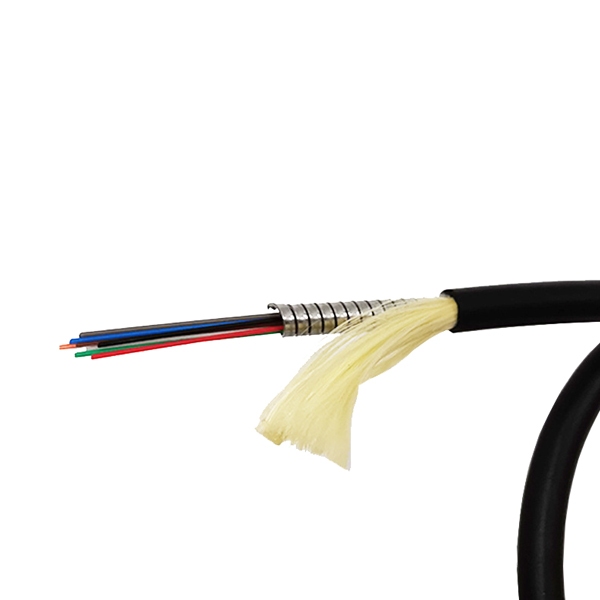

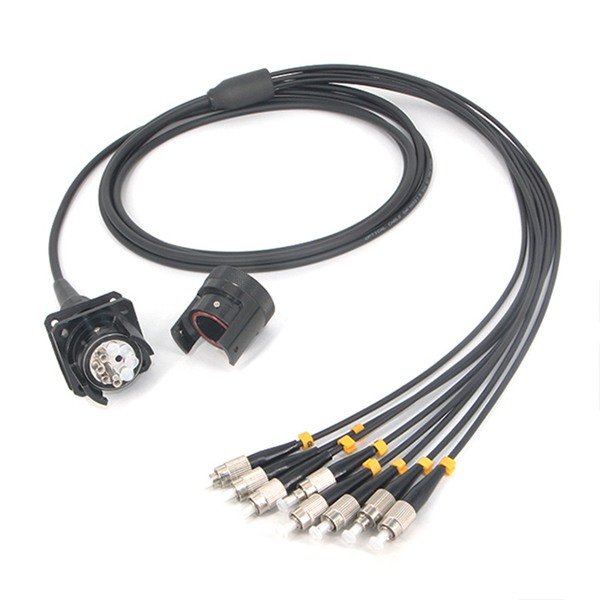

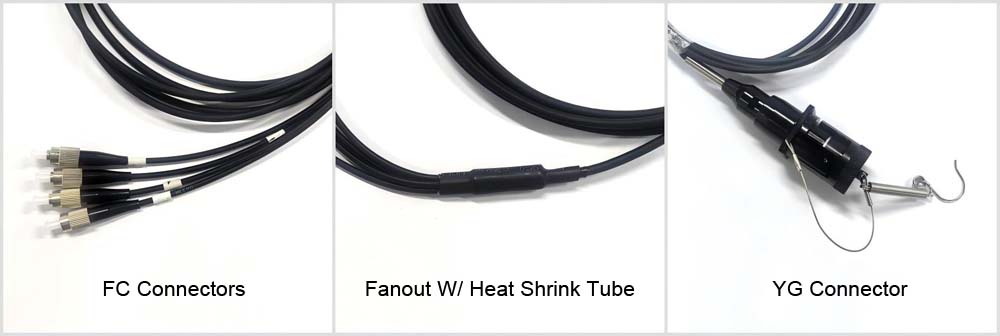

8Cores YG to FC SM patch cord is a outdoor patch cord with two different fiber optic connectors, one side is 8 pcs FC/UPC connectors 3mm, the other side is 1piece YG metal connectors, it is specially design for aviation. The 4cores armored cable should be strip off the jacket and add a breakout kits to pre-terminated the FC SC LC ST connectors in factory.

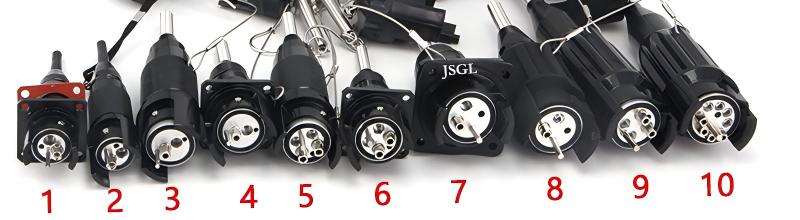

Yingda offers YG aviation outdoor connectors with 2-core, 4-core, 6-core, 8-core, and 12-core connectors, available in male and female versions, with the main body made of metal or plastic.
| 1 | Mini Duplex Metal Female Connector | 2 | Mini Duplex Metal Male Connector |
| 3 | Duplex Metal Male Connector | 4 | Duplex Metal Female Connector |
| 5 | 4 Cores Metal Male Connector | 6 | 4 Cores Metal Female Connector |
| 7 | Duplex Plastic Female Connector | 8 | Duplex Frosted Male Connector |
| 9 | 4 Cores Plastic Male Connector | 10 | 8 Cores Plastic Male Connector |

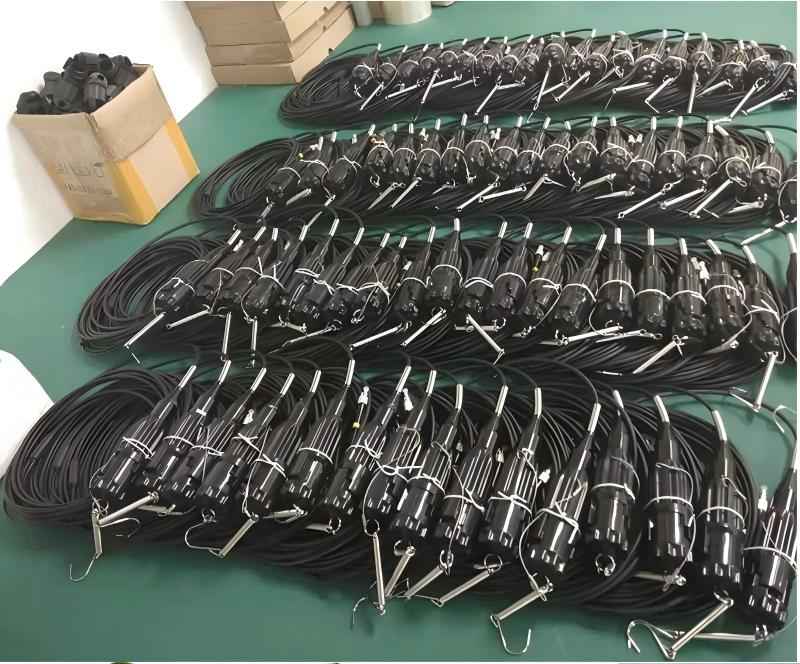

Yingda can provide a variety of outdoor waterproof aviation connectors, which can be metal connectors at both ends or branched into standard fiber optic connectors such as FC, ST, LC, SC, etc. Length can be customized.

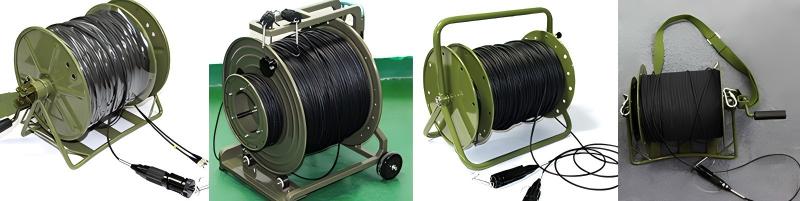

Since aviation patch cords are typically used outdoors and are generally quite long, various fiber optic cable laying carts are required. Our company can provide laying carts of various specifications to meet different laying requirements. Inquiries are welcome.
