SM Fiber Patch Cord Features
- Employing neutral connection technology, quick connections can be made without the need for adapters or flanges.
- The locating pin design ensures correct one-time connection of multi-core optical fibers and allows for blind mating.
- The high-strength composite material housing is lightweight, high-strength, and effectively prevents electromagnetic interference, protecting equipment safety.
- Both connector plugs and sockets are equipped with dust covers to ensure connection quality.
- Standard ceramic pin and housing connection dimensions ensure full compatibility with existing equipment.
- Field cable trailer-mounted connectors with single-core field cables are available in FC, SC, LC, and ST types.
- Fiber optic cable winding devices can be customized to meet customer requirements.
SM Fiber Patch Cord Application
- Military optical communication network
- Communication vehicle transmission, long-distance space transmission, portable transmission tools for signal corps
- Long-distance video conferencing signal transmission in live-fire exercises
- Coal mines, oil wells, natural gas, etc.
- Geological exploration communication
- Broadcast and television transmission and relay
- Emergency restoration of fiber optic communication
Aviation Patch Cable Specification
| Item | YG Aviation Patch Cable |
| Fiber count | 2 to 12 cores |
| Insertion loss | Typical ≤1.0dB, typical≤0.5dB (Single mode) Typical ≤1.0dB, typical≤0.3dB (multi mode) |
| Return loss | ≥50dB |
| Mechanical properties | Plug≤720N, compatible with fiber optic cables 5.0mm and above. |
| Operating temperature | -40 ~+85≤℃ |
| Optical cable diameter | 5.0 ~ 8.5mm optional |
| Sheath material | TPU |
| Tensive unit | Kevlar |
| Bending radius | 10D (Dynamic), 20D (Static) |
| Fiber type | 9/125um, 50/125um, 62.5/125um |
| Tensive force | Short term:1500N, long term: 1200N |
| Compliance | ROHS |
SM Fiber Patch Cord Details

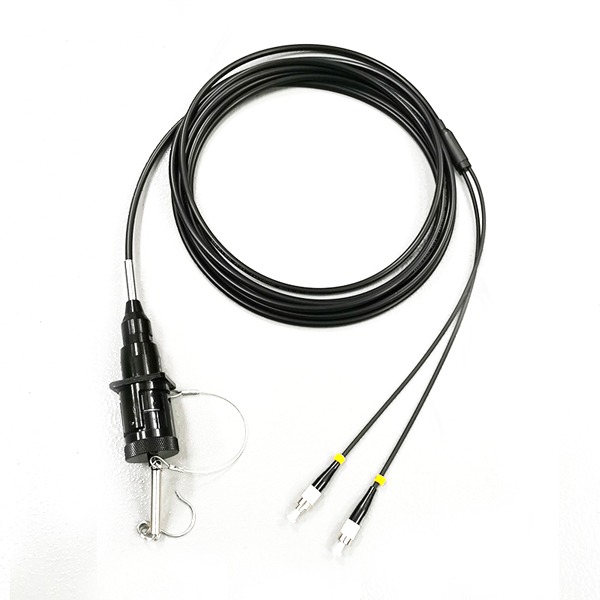

Yingda offers YG aviation outdoor connectors with 2-core, 4-core, 6-core, 8-core, and 12-core connectors, available in male and female versions, with the main body made of metal or plastic.
| 1 | Mini Duplex Metal Female Connector | 2 | Mini Duplex Metal Male Connector |
| 3 | Duplex Metal Male Connector | 4 | Duplex Metal Female Connector |
| 5 | 4 Cores Metal Male Connector | 6 | 4 Cores Metal Female Connector |
| 7 | Duplex Plastic Female Connector | 8 | Duplex Frosted Male Connector |
| 9 | 4 Cores Plastic Male Connector | 10 | 8 Cores Plastic Male Connector |

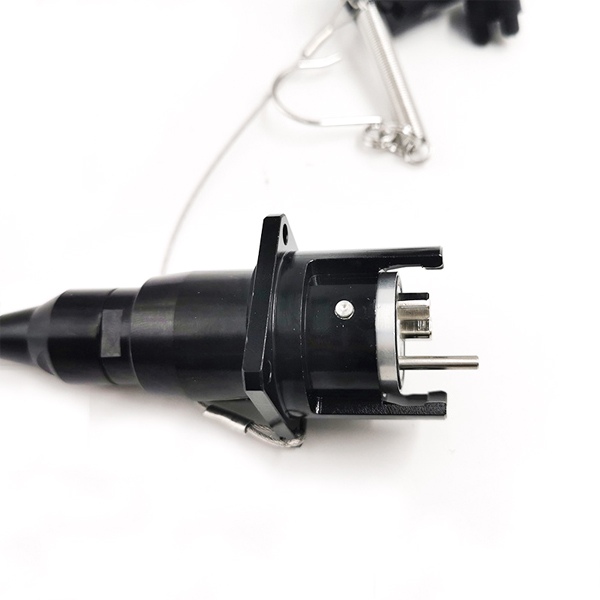

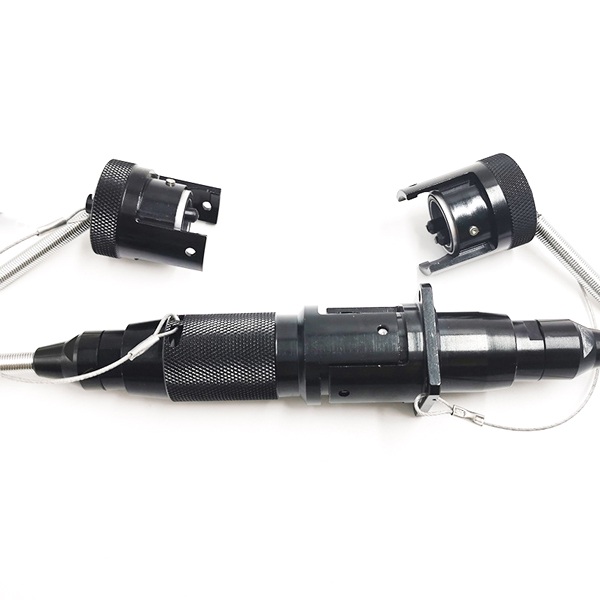

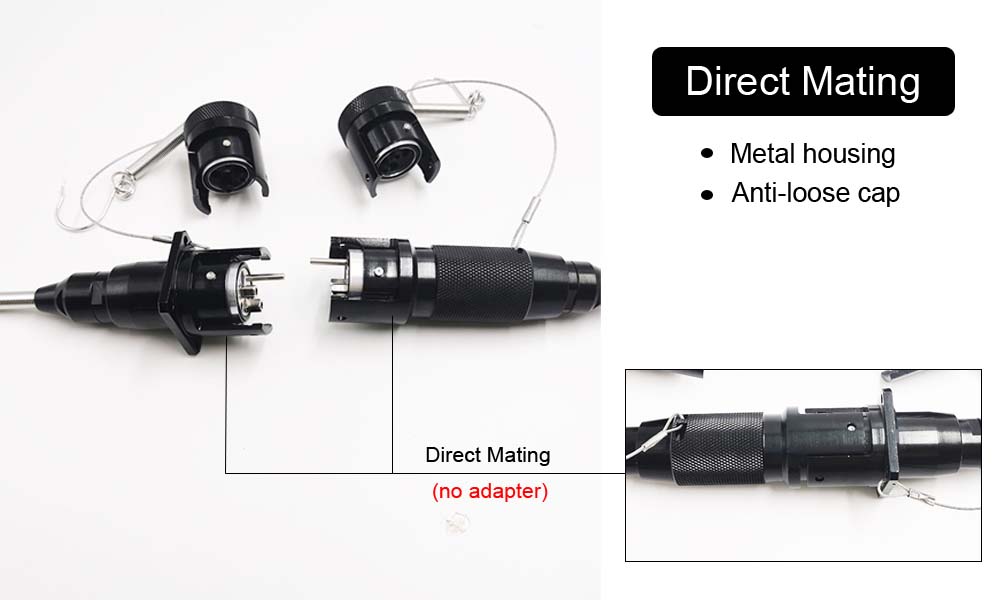

YG aviation connectors come in male and female versions. Visually, the female connector has a square outer shell, while the male connector has a round head. They connect directly without an external adapter. The precision pin and socket design ensures accurate connection. Installation is quick, easy, efficient, and stable.

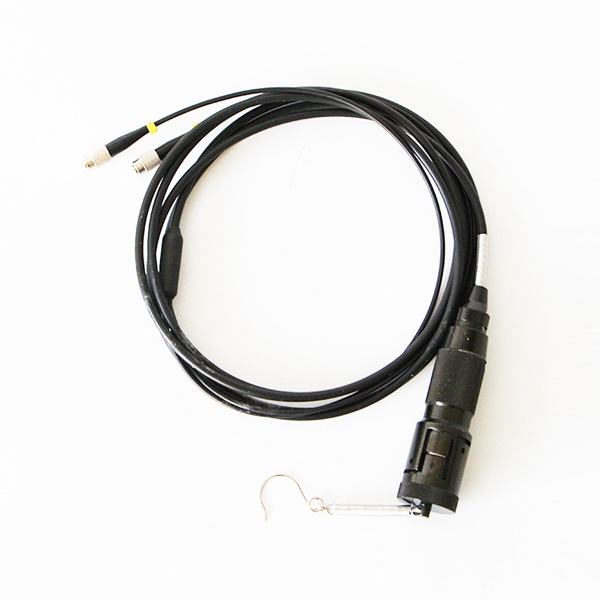

Outdoor field patch cords use outdoor armored fiber optic cables. They can be pre-terminated with YG connectors at both ends, or have a YG connector at one end and branch into SC, LC, FC, or ST connectors at the other. Cable length, outer sheath material, cable structure, and fiber type can all be customized. 2-core, 4-core, 6-core, and 8-core armored fiber optic cables are available.
