Description
Supertap Fiber optic patch cord is fiber optic jumpers with supertap connecctor at one side or both sides, and the cable type can be various types from 3mm to 5mm, round or flat drop cable are available. Below introduction of supertap connectors with 4*7mm flat drop cable.
Supertap Mini SC Connector Application
- Multi-purpose Outdoor.
- For connection between distribution box and RRH.
- Deployment in Remote Radio Head cell tower application.
Supertap Mini SC Connector Features
- Cost effective solution for in house termination.
- Low insertion loss and added loss.
- Height of attenuation.
- IP67 water, dust proof and corrosion resistant
- The material in the jumpel cable are all-weather and UV-resistant.
- Mechanical performance: IEC 61754-4 standard.
- RoHS and REACH materials compliant
Supertap Mini SC Connector Type
| Type | Reference | Note | Polish mode |
| SC | IEC61754-4 | Single mode | APC:green connector
UPC: blue connector |
| Multi-mode | UPC: gray connector |

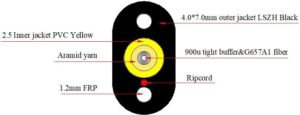

Supertap Mini SC 3mm Indoor Cable Structure
Cable Parameters
| Cable cont | Out sheath diameter (mm) | Weight (kg) | Min. Allowable tensile strength (N) | Min. Allowable crush load (N/100mm) | Min. Bending radius (mm) | Storage temperature (0C) | ||||
| Long term | Short term | Long term | Short term | |||||||
| 1 | 3.0±0.1 | 6.5 | 450 | 200 | 500 | 100 | 20D | 10D | -20~+60 | |

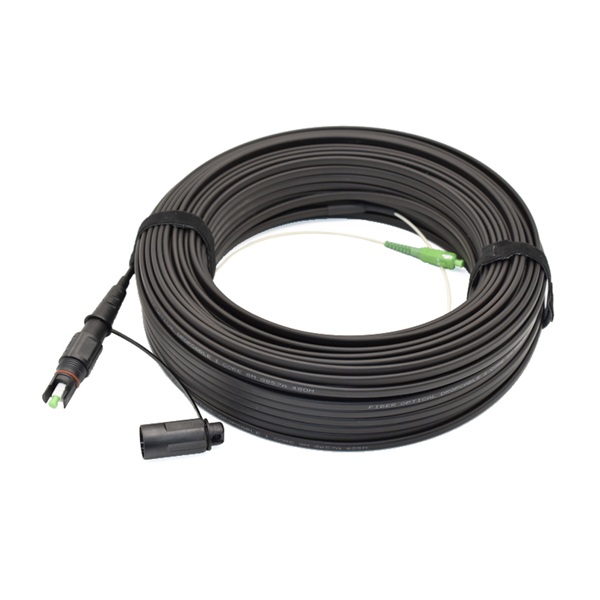

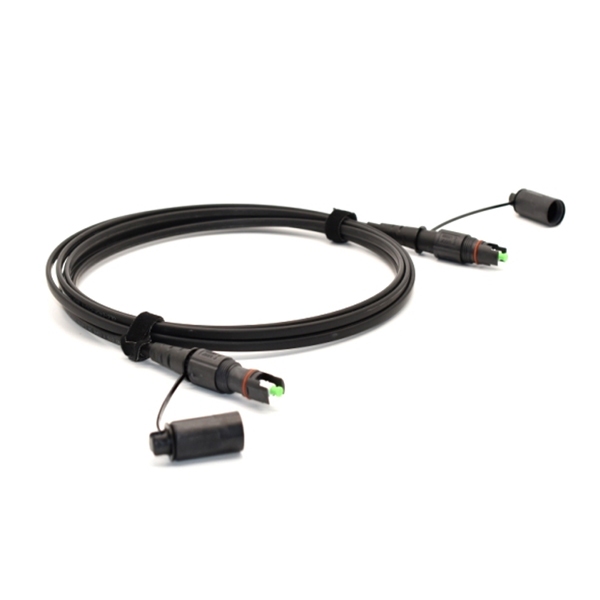

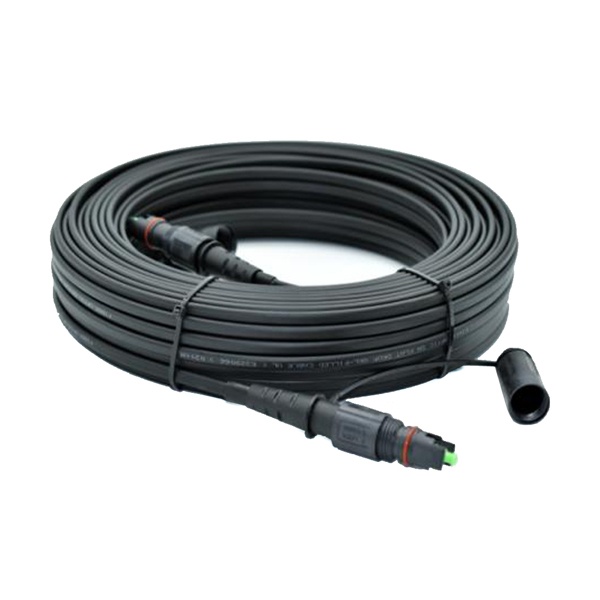

Supertap Mini SC to SC Patch Cord With 3mm Indoor Cable Assemblies
Optical Characteristic
| Cable Count | Out sheath
Diameter (mm) |
Weight
(KG/KM) |
Minimum
allowable Tensile Strength (N) |
minimum
allowable Crush Load (N/100mm) |
Minimum
Bending Radius (MM) |
Storage temperature (℃) |
|||
| Short
term |
Long
term |
short
term |
Long
term |
short
term |
long
term |
||||
| 1 | (4.0±0.2)x(7.0±0.2) | 42 | 1350 | 400 | 2200 | 1000 | 20D | 10D | -20~+60 |
End-Face Geometry
| Item | UPC (Ref: IEC 61755-3-1) | APC (Ref: IEC 61755-3-2) |
| Radius of curvature (mm) | 10 to 25 | 5 to 12 |
| Fiber height (nm) | -100 to 100 | -100 to 100 |
| Apex offset (μm) | 0 to 50 | 0 to 50 |
| APC angle (°) | / | 8° ±0.2° |
| Key error (°) | / | 0.2° max |
End-Face Quality (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None |
IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
End-Face Quality (MM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None |
IEC 61300-3-35:2015 |
| B: Cladding | 65 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Mechanical Characteristics
| Test | Conditions | Reference |
| Endurance | 500 mating | IEC 61300-2-2 |
| Vibration | Frequency: 10 to 55Hz, Amplitude: 0.75mm | IEC 61300-2-1 |
| Cable retention | 100N (main cable); 50N (connector part) | IEC 61300-2-4 |
| Strength of coupling mechanism | 80N for 2 to 3mm cable | IEC 61300-2-6 |
| Cable torsion | 15N for 2 to 3mm cable | IEC 61300-2-5 |
| Fall | 10 drops, 1m drop height | IEC 61300-2-12 |
| Static lateral load | 1N for 1h (main cable);
0.2N for 5min (ranch part) |
IEC 61300-2-42 |
| Cold | -25°C, 96h duration | IEC 61300-2-17 |
| Dry heat | +70°C, 96h duration | IEC 61300-2-18 |
| Change of temperature | -25°C to +70°C, 12 cycles | IEC 61300-2-22 |
| Humidity | +40°C at 93%, 96h duration | IEC 61300-2-19 |
