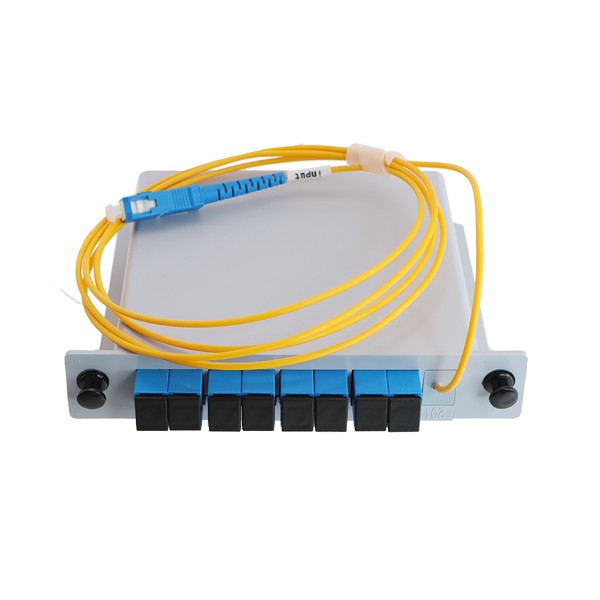

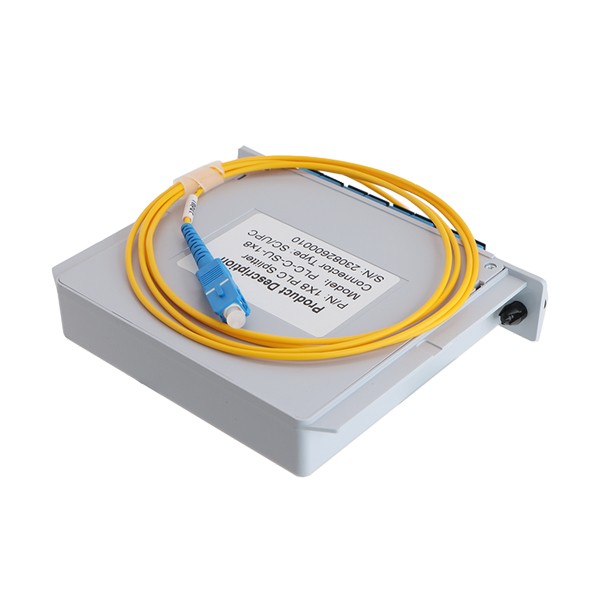

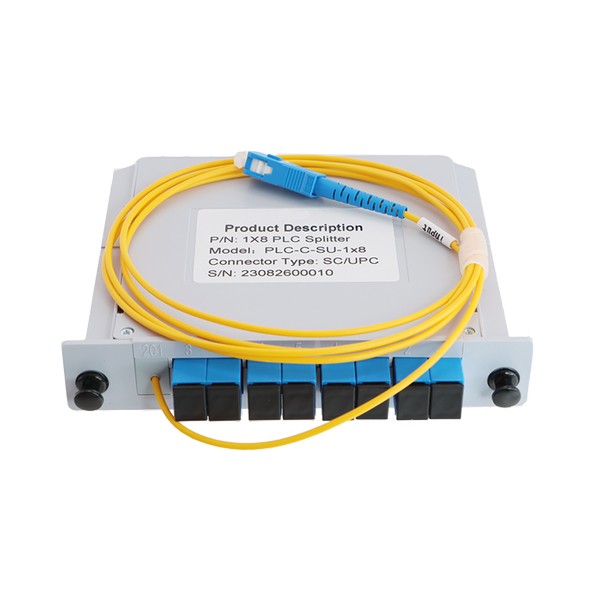

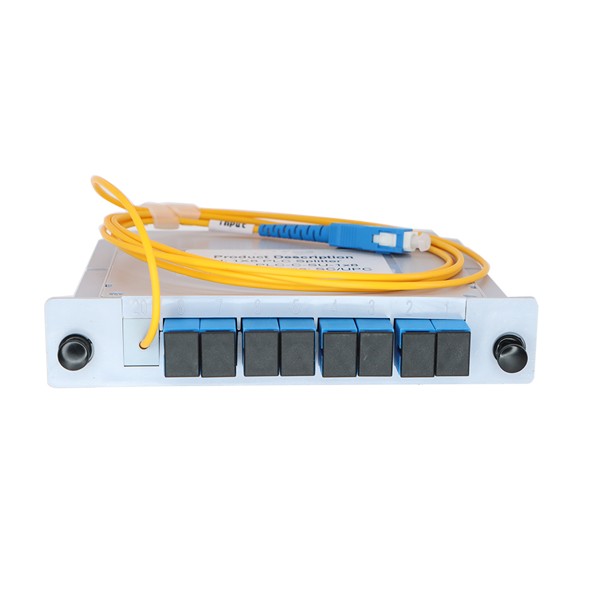

Fiber optic PLC spliter modular 1×8 with connectors SC/UPC, input pigtail SC yellow G657A fiber 1.5meter 2mm

The Fiber Optic PLC Splitter Modular 1×8 with SC/UPC connectors and an SC input pigtail is a compact, high-performance solution for optical signal distribution. Housed in a durable modular casing (approx. 130mm×100mm×25mm), it features 1 SC/UPC input pigtail to receive incoming optical signals and 8 SC/UPC output connectors. Using Planar Lightwave Circuit technology, it evenly splits 1 input signal into 8 paths with low insertion loss and good uniformity.

SKU YDPLC-LGX-108-SCSC Category Tags , Brand:

Description

Splitter Modular 1×8 Features

  • Low Insertion loss
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • High Reliability and Stability
  • Conforms to TelcordiaGR-1209&GR-1221, ROHS
  • Dimensions: 130*100*25 mm



Splitter Modular 1×8  Specifications

Split ratio 1×8
Operating Wavelength (nm) 1260-1650nm
Fiber Type G657A1 or customer specified
Insertion Loss (dB)S Grade 10.7
Insertion Loss (dB) P Grade 10.5
Loss Uniformity(dB) 0.8
PDL(dB) 0.3
Return Loss (dB) 55
Directivity (dB) 55
Wavelength Dependent Loss(dB) 0.8

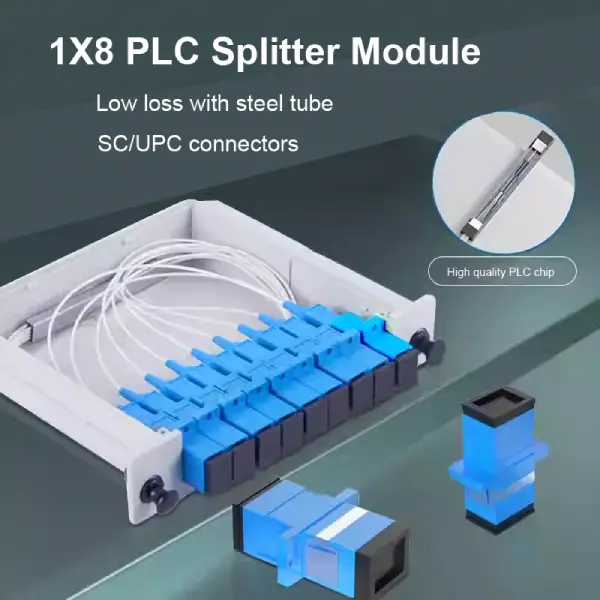

Details of Splitter Modular 1×8

Splitter Modular 1×8 has a cuboid form. The housing is typically made of metal or plastic, providing protection and organizing internal circuits. Its surface is simple, facilitating installation and integration into fiber optic distribution frames and similar equipment.

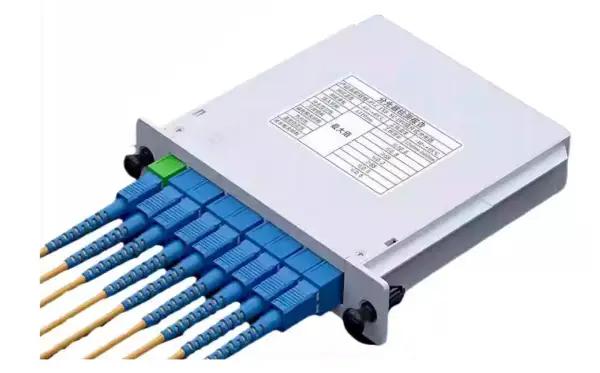

There is 1 input interface, often using a green SC connectors for connecting the input fiber and receiving optical signals, serving as the entry point for optical signals into the splitter. Moreover, there are 8 output interfaces, mostly blue LC/UPC connectors. They are used to output the split optical signals to different fiber links, connecting to user-side or lower-level devices. The pictures clearly show 8 blue output ports arranged in an orderly manner.

fiber optic plc spliter modular 1x8 with connectors sc/upc, input pigtail sc yellow g657a fiber 1.5meter 2mm

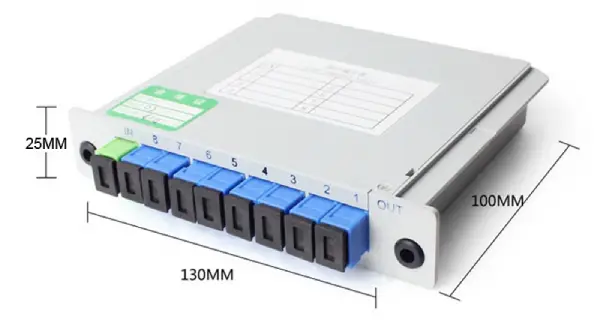

The size of this optical splitter is 130mm * 100mm * 25mm. It can be installed in the module slots of fiber optic distribution frames through rails, buckles, etc., or in small fiber optic distribution boxes. Some splitters also support wall-mounting and rack-mounting, adapting to the fiber optic network cabling architectures of different scenarios.

fiber optic plc spliter modular 1x8 with connectors sc/upc, input pigtail sc yellow g657a fiber 1.5meter 2mm

The input and output interfaces are compatible with corresponding fiber optic jumper. The plug-in connection is convenient for installation, and the interfaces have certain dust-proof and positioning designs to ensure the stability and low loss of fiber optic connections.

fiber optic plc spliter modular 1x8 with connectors sc/upc, input pigtail sc yellow g657a fiber 1.5meter 2mm

fiber optic plc spliter modular 1x8 with connectors sc/upc, input pigtail sc yellow g657a fiber 1.5meter 2mm
