Description
Fiber Optic Distribution Cabinet Features
- SMC composite material offers high strength, anti-aging, corrosion resistance, anti-static properties, and lightning protection, making it durable and resistant to harsh environments for 30 years.
- The entire enclosure is sealed with rubber strips and has an IP65 waterproof rating, making it suitable for outdoor use.
- The modular design and drawer-style structure facilitate installation.
- It integrates splicing and wiring into one unit, ensuring optimal fiber bend radius and low loss.
- It integrates multiple functions, including cable securing, protection, termination, and disconnection detection, as well as fiber core and pigtail protection.

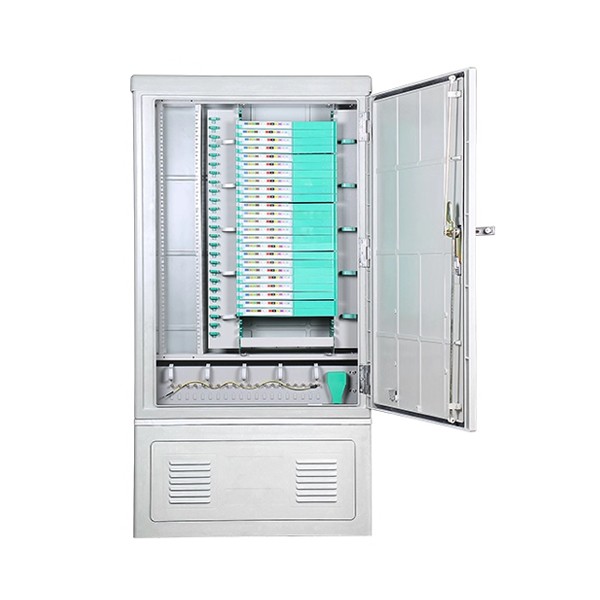

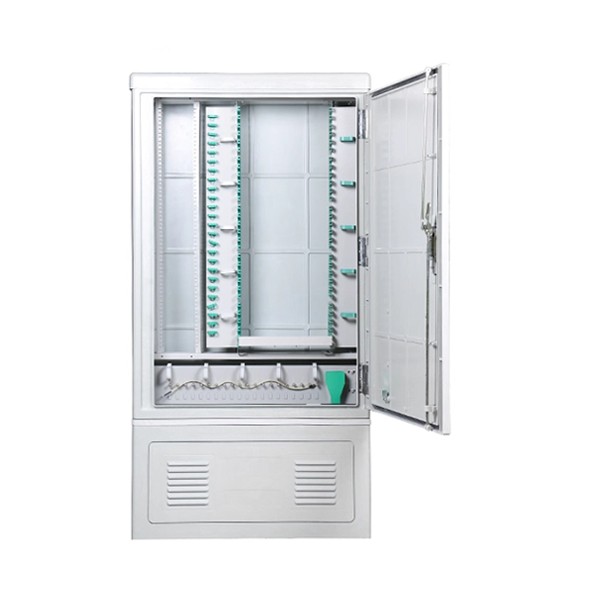

- Four internal configurations are available: empty, fully populated, three-network integration, and four-network integration.
- Three optional installation methods are available: floor-standing, no-jumper, and wall-mounting.
- Free logo printing available.
Fiber Optic Distribution Cabinet Specification
| Model | SMC-288 |
| Max capacity | 288 cores single fiber |
| Dimension | 145*75*30mm (floor standing type) 115*75*30mm (wall mounting type) |
| Material | SMC |
| Connector type | SC, FC |
| Working temperature | -40 ~+65℃ |
| Ingress protection | IP65 |
| Color | Gray white |
Mounting Method

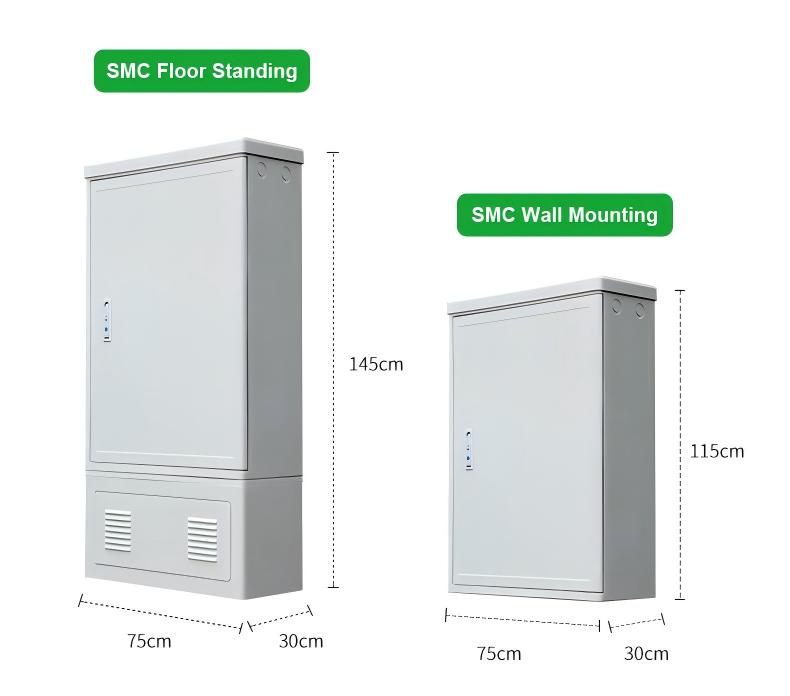

This fiber optic cross connect cabinet can be floor standing with a base or mounting on wall with expansion screws. Please specify before place order to us. The dimension will be as below, for your reference.
Cross Connect Cabinet Order information
| SMC | – | 288 | – | XX (connector type) | – | XX (mounting method) |
| SU=SC/UPC SA=SC/APC FU=FC/UPC FA=FC/APC | WM=wall mount FS=Floor standing |
Fiber Optic Distribution Cabinet Details

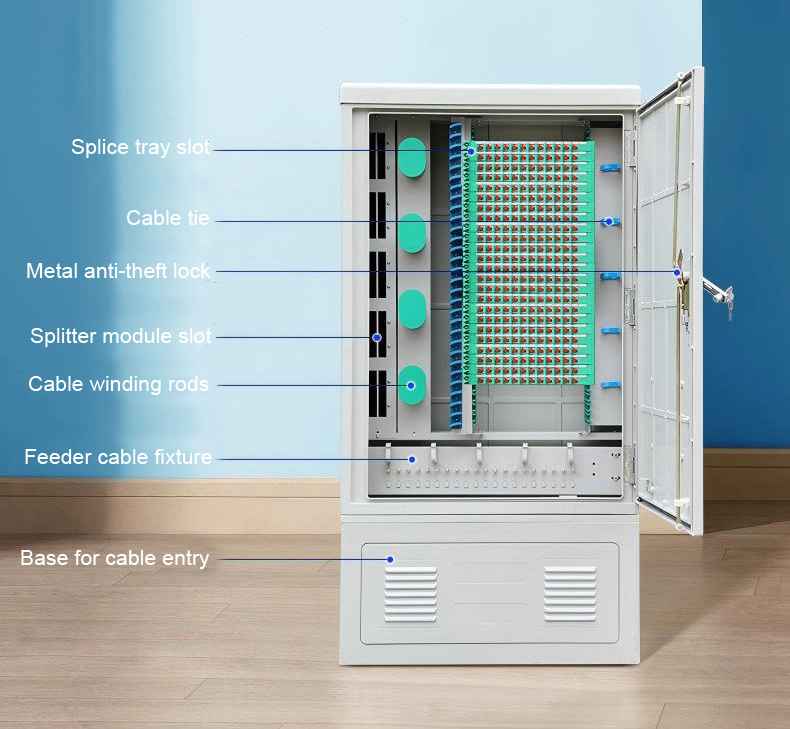

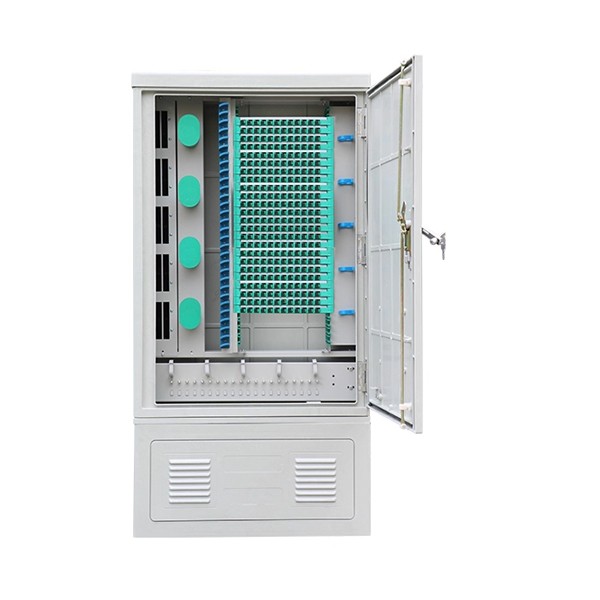

This cross connect cabinet are unique design, mix fiber splicing, storage, distribution, splitting, fiber management in a box ,and cable enter the box from bottom, and then distribution in the upper part.

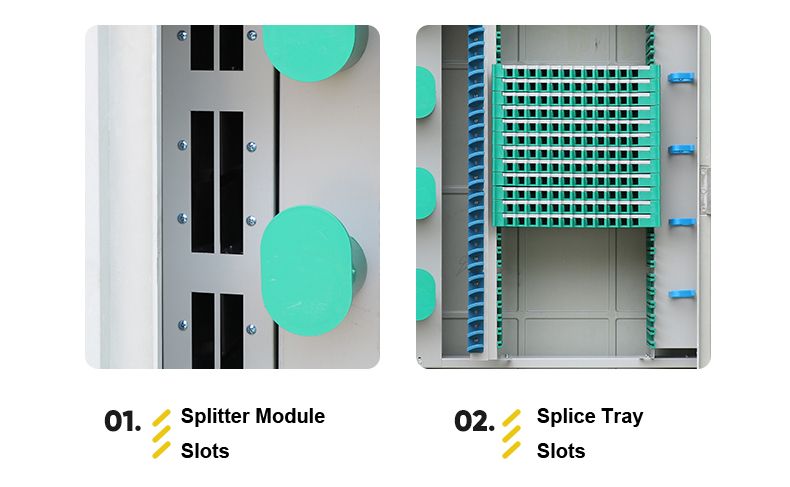

There are plc splitter module slots for ABS box splitter or LGX box splitter at the left side of the cable winding rods. And on the right main part is for fiber optic distribution, with plastic sliding splice trays, each splice tray is 12 cores SC FC ports. Left and right are cable wiring trays and cable ties to ease fiber optic pigtails management in order.

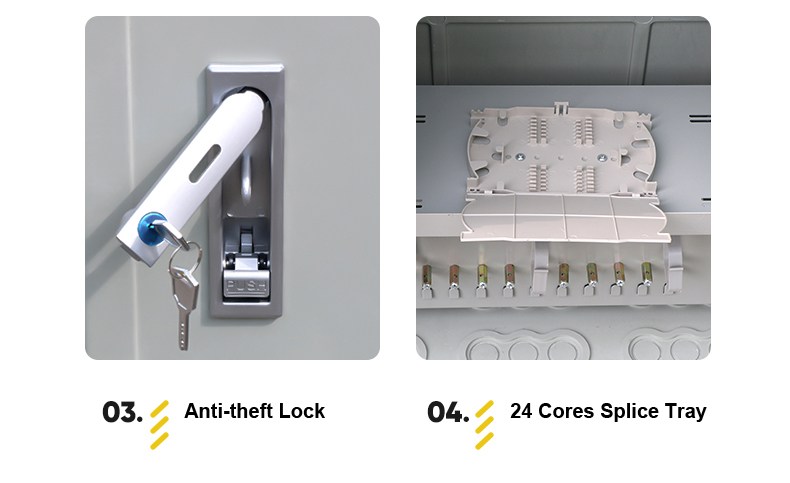

Yingda adopt quality unique anti-theft lock for the whole cabinet, you can not open it by hand without key, and inside we configured splice tray at the bottom for cable splicing if need when you bring in the main cable from the base.

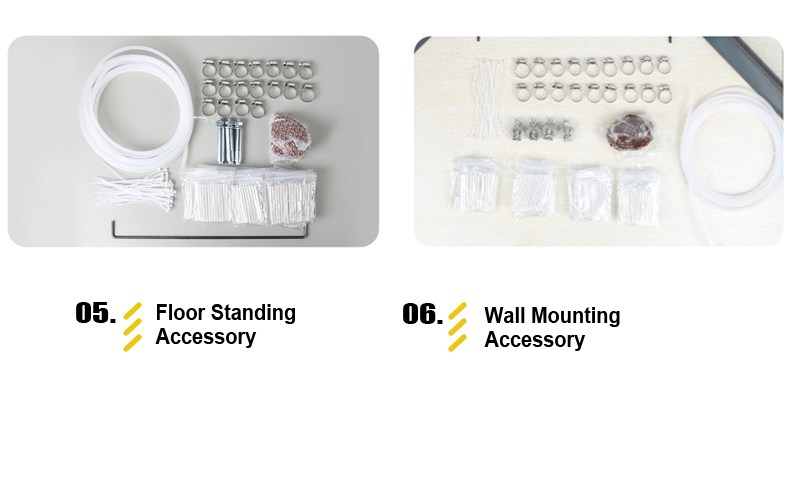

All standard accessories will be loaded with the cross cabinet for mounting, no need special tools or accessories need to buy additionally. If you have special accessory need, please tell us in advance.

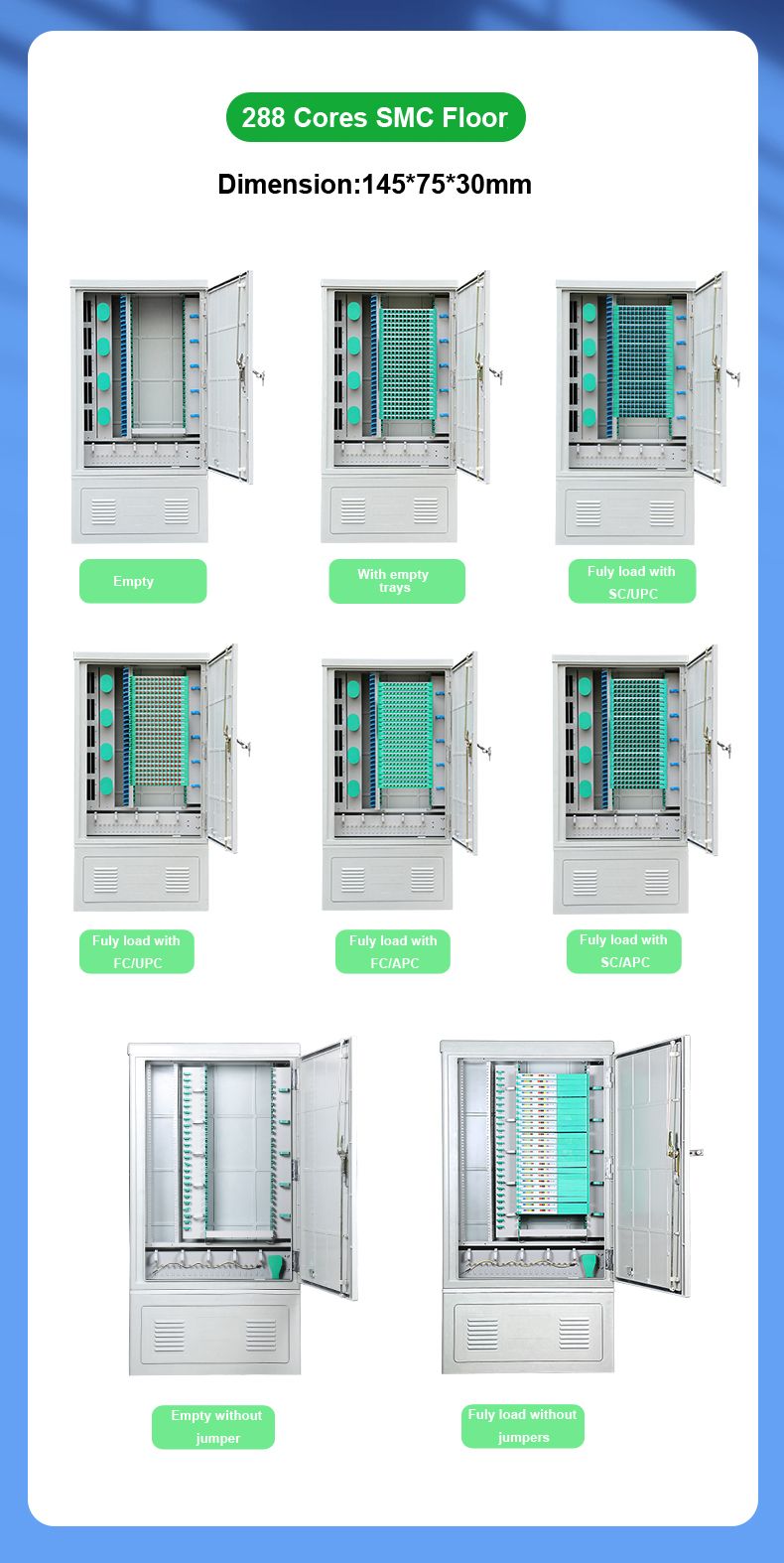

Yingda can offer cross connect cabinet telecom with many different configurations as below, please check if you can find the right one you need. We can offer other small capacity like 96cores, 144cores, or bigger capacity, 560cores, 720cores, 1440cores as well. Please send inquiry for offer.
