SKL-6C Fiber Optic Cleaver, 0-45° Angle Adjustable, for 250-900μm Fibers, 50,000+ Cuts, with Diamond Blade

This fiber cleaver belongs to the precision machinery. Such as knocking and landing (strong impact), may damage the characteristics of cutting knife, or may cause injury on personnel. Please be more careful when you use it.

Description

Precision Fiber Cleaver SKL-6C – Engineered for flawless 0-45° angled cuts on 250-900μm fibers, this tool features a long-life diamond blade rated for 50,000+ cuts. Its ergonomic design ensures consistent splice-ready end faces, ideal for FTTH and data center applications. The adjustable angle mechanism supports APC/UPC connectors, while the durable build minimizes blade wear. A must-have for technicians prioritizing low-loss splicing efficiency.



Fiber Cleaver Features

  • Three in one fiber clamp, capable of cutting bare fiber, pigtail and fiber optic drop cables, with built-in scales and no need for a length gauge;
  • High precision cutting blade, smooth cutting, continuous fiber, can cut 48000 times;
  • 16 tungsten steel cutting end faces, long service life;
  • High quality slide rail, mechanical cover, automatically returns to its original position after opening;
  • Independently packaged, comes with adjustable wrench, English manual, anti drop bag and other tools;
  • Fiber optic cable stripping pliers, red light pens, and other FTTH cold junction kit tools can be configured.



Fiber Cleaver Specification

Model SKL-6C
Dimension (W*D*H) 75*65*57mm
Bare fiber diameter 125um
Cutting angle About 0.80
Application of fiber core number Single core (0.25-0.9) 12core
Cutting length 9-16mm(ø0.25), 10-16mm(ø0.25)
Cutting life 48000 times
Ribbon core ~2.5flexer 18mm
Net weight About 230g
Color Black, green, purple



Fiber Termination Kit Detailed Display

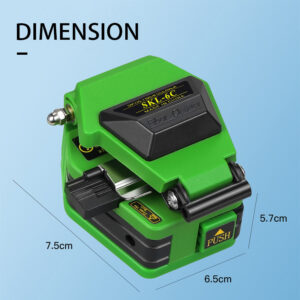

This fiber cleaver, sized 7.5×6.5×5.7cm, features a green and black design, ideal for precise fiber cutting tasks.

skl 6c fiber optic cleaver, 0 45° angle adjustable, for 250 900μm fibers, 50,000+ cuts, with diamond blade

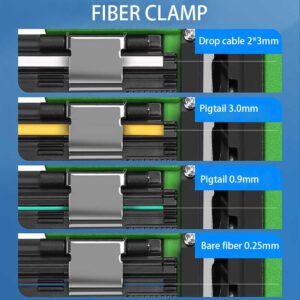

This fiber clamp offers versatile compatibility, securely holding drop cables (2*3mm), 3.0mm & 0.9mm pigtails, and 0.25mm bare fibers. Its precision design ensures stable clamping for various fiber optic termination and splicing tasks, streamlining workflow in fiber network installations.

skl 6c fiber optic cleaver, 0 45° angle adjustable, for 250 900μm fibers, 50,000+ cuts, with diamond blade

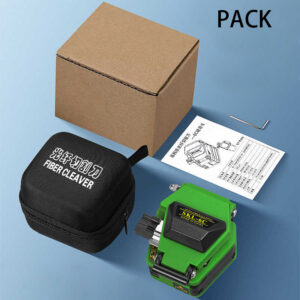

It includes the cleaver, a protective carrying case, an instruction manual, and a small tool. Packed in a sturdy box, it provides all essentials for fiber cutting tasks, ensuring convenience and protection during storage and transport.

skl 6c fiber optic cleaver, 0 45° angle adjustable, for 250 900μm fibers, 50,000+ cuts, with diamond blade
