Description

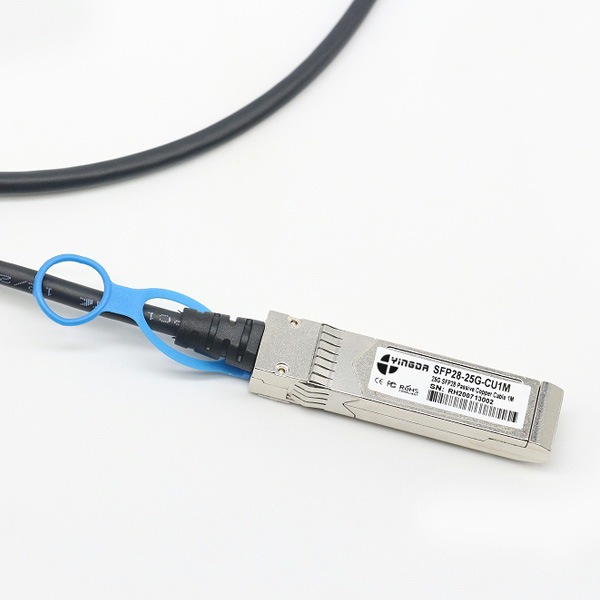

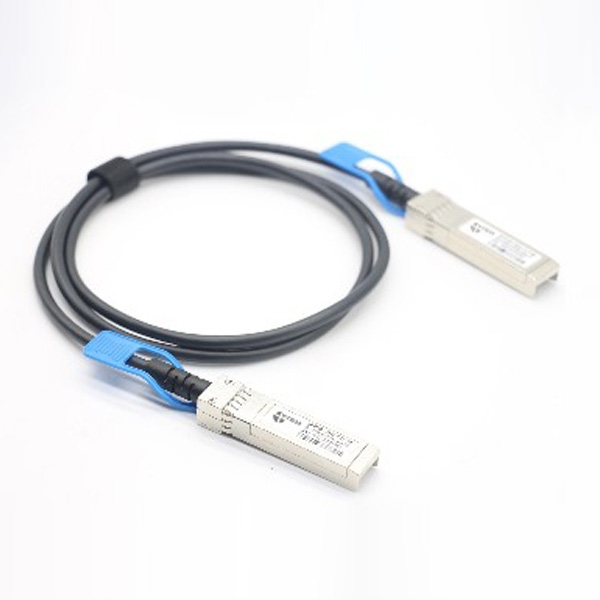

Features of SFP28 DAC
- Supports hot-swappable SFP28 form factor
- Compliant with SFF-8431/SFF-8432
- Compliant with SFP28 MSA and IEEE 802.3by 25GBASE-CR standards
- Maximum rate up to 25.78125Gbps
- Connection length up to 5 meters via passive copper cable
- Enhanced EMI/EMC performance
- Provides cable sizes from 30AWG to 28AWG
- I2C-based two-wire serial interface with customizable EEPROM signature
- Operating temperature: 0~70℃
- Compliant with RoHS 6.0
Technical Parameter
| Part no. | sfp h25gb cu3m | Brand | YINGDA |
| Transmission rate | 25G | Warranty | 3years |
| Transmission distance | 1-5m | Cable material | PVC |
| Packaging form | SFP28 to SFP28 | Operating temperature | 0~70℃ |
| Cable type | 30AWG/24AWG | Power supply voltage | 3.3V |
