Description
SC Attenuator Features
- Adopt high attenuation fiber with the cladding mode suppression design
- Excellent optic performance
- Easy connection with plug-in type structure
- Attenuation precise and high return loss
- In accordance with Bellcore (GR-910-Core) standard
- Wide attenuation 0dB ~ 30 dB
SC Attenuator Technical Data

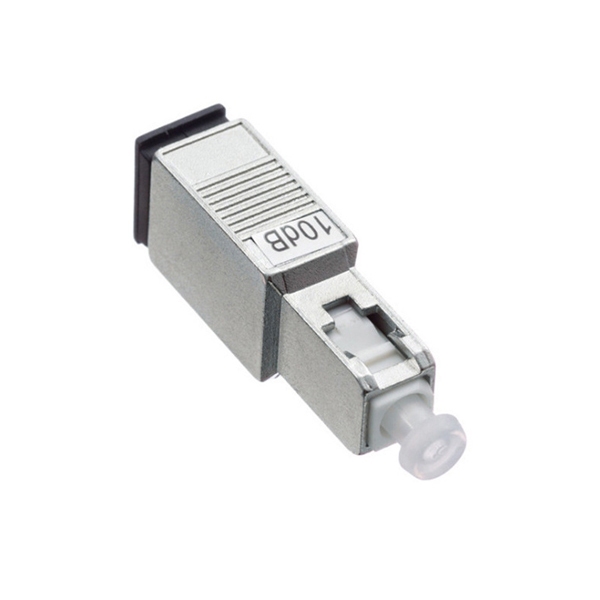

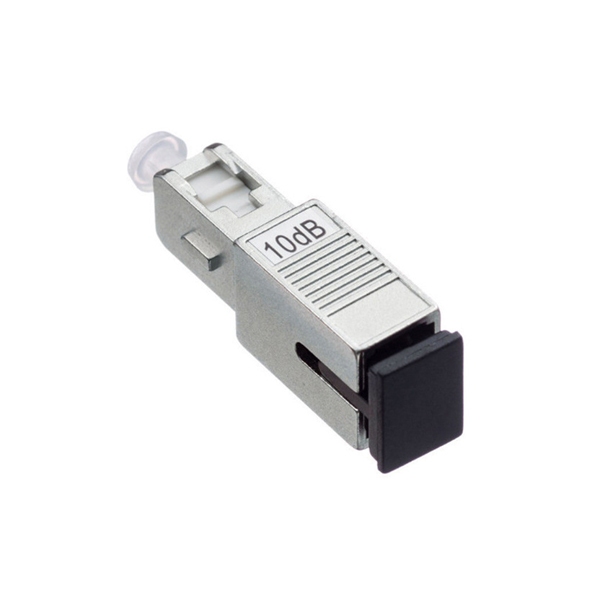

| Product name | SC Build Out Attenuator | |
| Polish method | UPC or APC | PC |
| Fiber type | Single mode (SM 9/125um) | Multi mode (50/125um) Multi mode (62.5/125um) |
| Operating wavelength | 1310&1550nm | 850&1300nm |
| Return loss | UPC≥50dB, APC≥60dB | ≥35dB |
| Material | Plastic , metal | |
| Ferrule | ceramic | |
| Sleeve | Ceramic | |
| Attenuation range | 0-30dB (1 step) | |
| Tolerance | 0-9dB:±0.5dB | |
| 10-20dB:±10% | ||
| Repeatability | ≤0.1dB | |
| Interchangeability | ≤0.2dB | |
| Max optical power | ≤200mW | |
| Working temperature | -40 0C~+750C | |
| Storage temperature | -40 0C~+850C | |

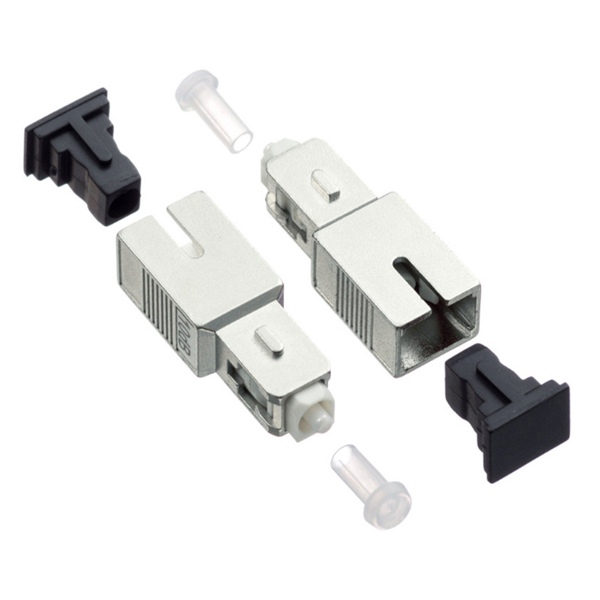

SC Attenuator Details
Advanced Grinding Equipment: We utilize nationally advanced grinding equipment to ensure that technical parameters such as the fiber core grinding offset, fiber end face concavity, absence of scratches or defects on the fiber surface, and the radius of curvature of the ceramic end face meet standard specifications, making your use more convenient.
High Quality Attenautor: This product complies with IEC, RoHS, CE, and UL testing and certification standards. It is exported to various countries and regions worldwide and is highly praised by numerous engineering and cabling companies, making it the best choice for fiber-to-the-home applications.
Low Insertion Loss, High Return Loss: Utilizing imported A-grade ceramic ferrules, it offers higher reliability, better stability, and superior coaxiality and dimensional accuracy, ensuring excellent product quality.
Wide Range of Application: SC fiber optic attenuator are simple structure, easy to install. So it is suitable for various fiber optic local area networks, fiber optic communication systems, instrumentation, network CATV, etc.
