Description
SC To ST Attenuator Features
- SC female to ST female interface
- 0 -30dB range attenution value adjustable
- Attenuated fiber doped with metal ions achieve attenuation effect
- High power resistant light source, high precision, and good stability
- Lightweight and compact in size
- Multiple forms, easy to use
VOA Variable Optical Attenuator Parameters
| Product name | SC-ST MVOA attenuator |
| Attenuation value | 1dB ~ 30dB adjustable |
| Working wavelength | 1310/1490nm/1550nm |
| Ferrule material | Ceramic |
| Attenuation accuracy | 1~5dB:≤+0.5 (dB) 5~30dB:≤+10% (dB) |
| Polarization Dependent Loss | ≤0.2dB |
| Return loss | UPC≥55dB, APC≥60dB |
| Humidity | 95%RH |
| Working temperature | -40~+75℃ |
| Storage temperature | -40~+85℃ |

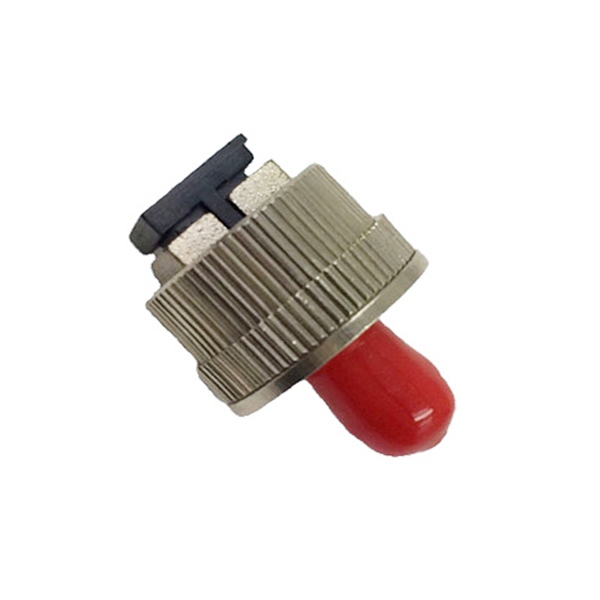

VOA Variable Optical Attenuator SC to ST Details
SC to ST Variable optical attenuator is a mechanical variable attenuator, the attenuation value is adjustable from 0dB to 30dB by manual. The whole box is metal zinc alloy material, 2.5mm ceramic ferrule and sleeve ensure low insertion loss, high return loss, good repeatability and stability, high attenuation accuracy, it is the best fiber optic attenuators from China.
The voa attenuator is manufactured by attenuation fibers doped with metal ions, allowing the optical power to be adjusted to the required standard. Using a flange design, it offers various connector types, including FC, LC, SC, and ST, for customers to choose from, ensuring easy installation and a simple structure.
