Description
The MTRJ is collectively referred to as the MT series connector, and the MT series connectors are connected to the guide pins (also known as PIN pins) through two guide holes with a diameter of 0.7mm on the left and right sides of the plug end face. MT-RJ is generally a two core design, with a compact design that allows for a large number of cores and a small volume. It is widely used in environments that require high-density integrated fiber optic circuits during the wiring process, as well as in the internal connection applications of FTTX, 40G 100G SFP, SFP+ and other transceiver equipment.
Multimode Fiber Patch Cable Features
- MT-RJ connector can be male and female, easy to install, male is with pin, female with hole
- Using precision formed MTRJ ferrule
- Material meets UL 94V-0 standard
- Compliant with ROHS
- Precision guide needle design with extremely high alignment
- MTRJ patch cords complies with TIA, EIA, Telcodia, and IEC standards
Specification
| Connector type | MTRJ (MT-RJ) to SC PC UPC APC | |
| Cable diameter | ￠0.9mm、￠2.0mm、￠3.0mm | |
| Fiber type | Single mode, multi-mode | |
| Fiber count | 2 cores | |
| Insertion loss | SM≤0.20dB, MM≤0.30dB | |
| Return loss | SM PC≥40dB, MM–NA | |
| Working temperature | -40℃to +75℃ | |
| Mechanical performance | Insertion and removal times: 500 | <0.2dB change |
| Vibration test | Frequency range: 10-55Hz, 0.75 amplitude | <0.2dB change |
| Drop test
| Fall height; 1m, number of drops: 5 times | <0.2dB change |
| Cable tension | 90N | <0.2dB change |
| Optical cable torsion | 2.0-3.0 diameter optical cable: 1.5kg-2.5kg | <0.2dB change |
| High and low temperature test | -40 ℃ to+75 ℃, 12 cycles | <0.2dB change |
| Low temperature test | -40 ℃ for 96 hours | <0.2dB change |
| High temperature test | +70 ℃ for 96 hours | <0.2dB change |

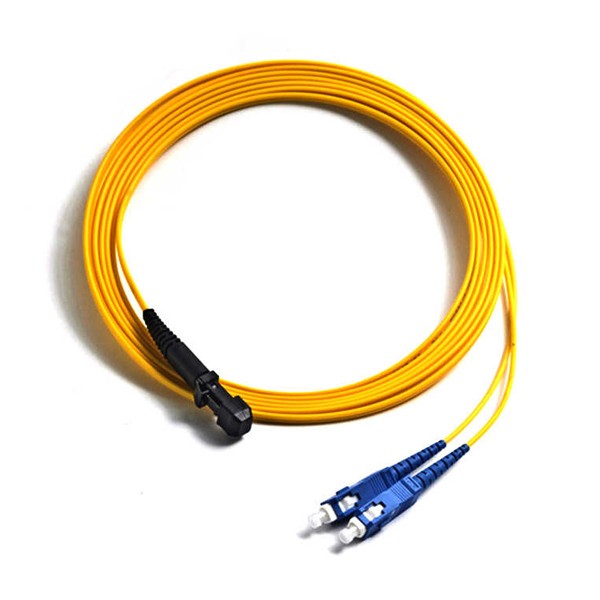

Detailed Display of Multimode Fiber Patch Cable

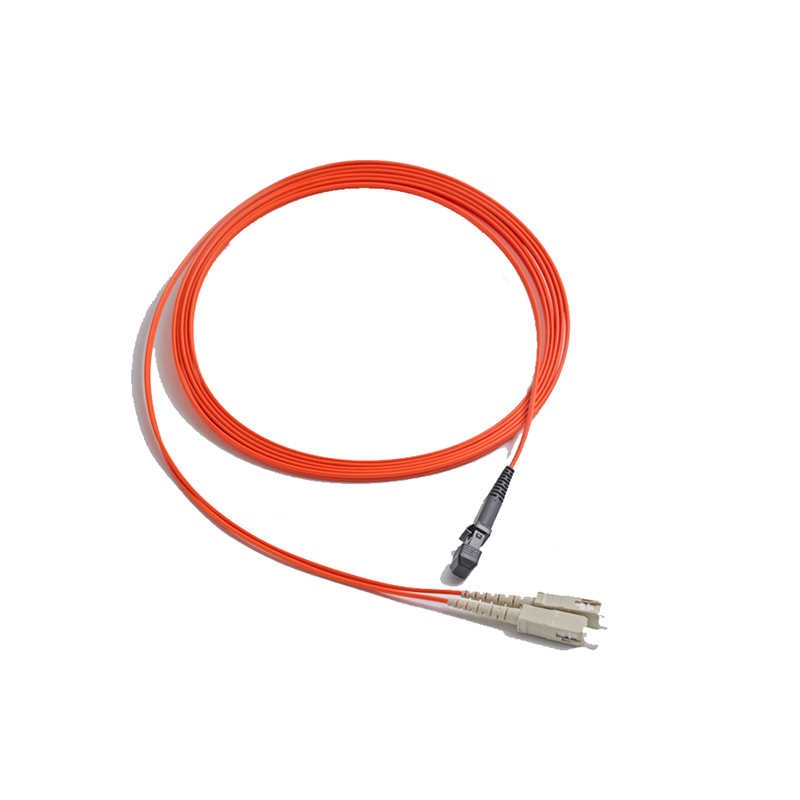

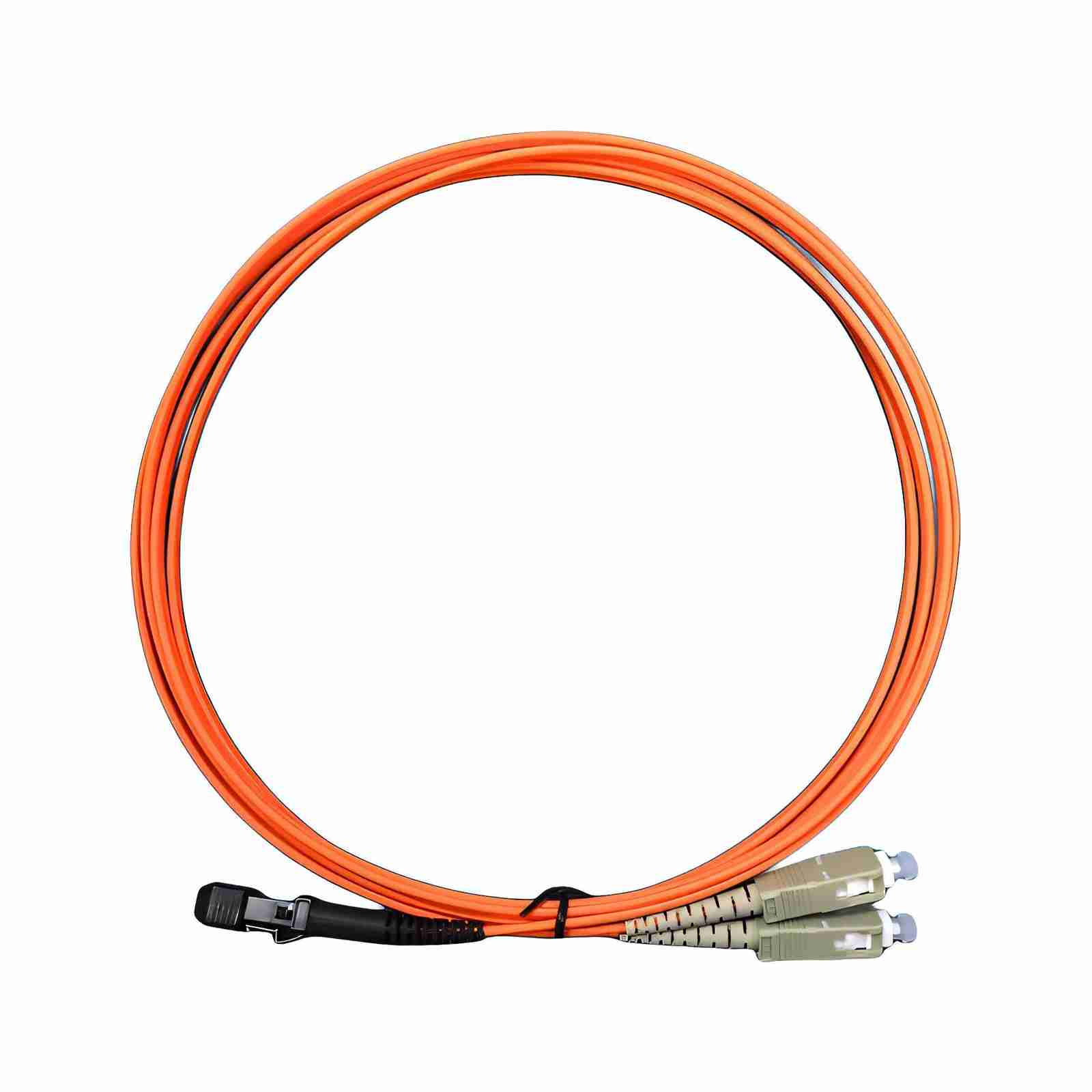

This is a multimode fiber cable, identifiable by the orange jacket. Multimode fiber is commonly used for shorter-distance data transmission within buildings or campuses. The cable has a durable outer jacket that protects the internal optical fibers. The fibers inside are designed to transmit multiple light modes, allowing for relatively high bandwidth over short distances.

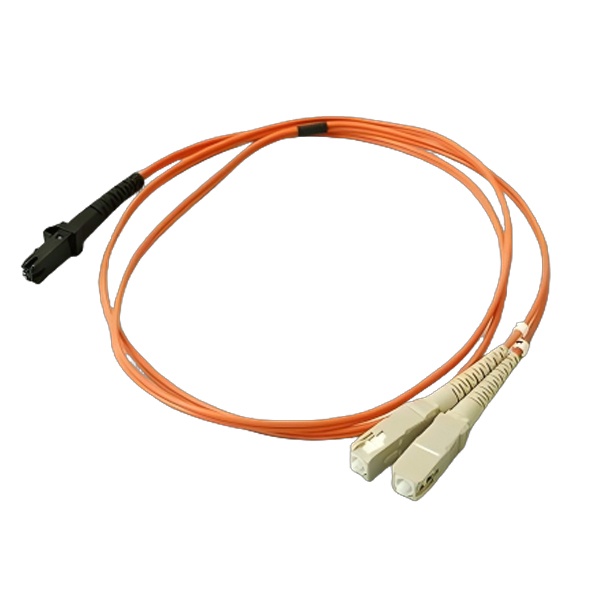

It features two different connectors. One end is an SC connector, which is a push-pull type, duplex (with two connectors side by side), and has a beige color, typical of multimode fiber connectors. The other end is an MTRJ connector, which is a small form-factor, duplex connector with a black latch mechanism for secure connection.
