Description

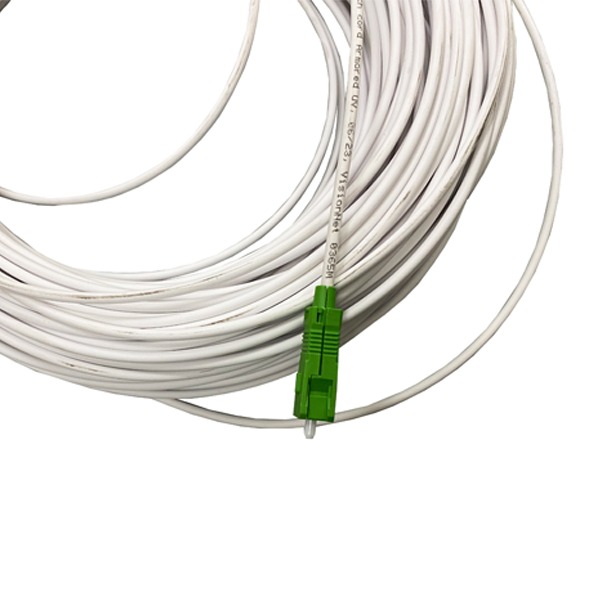

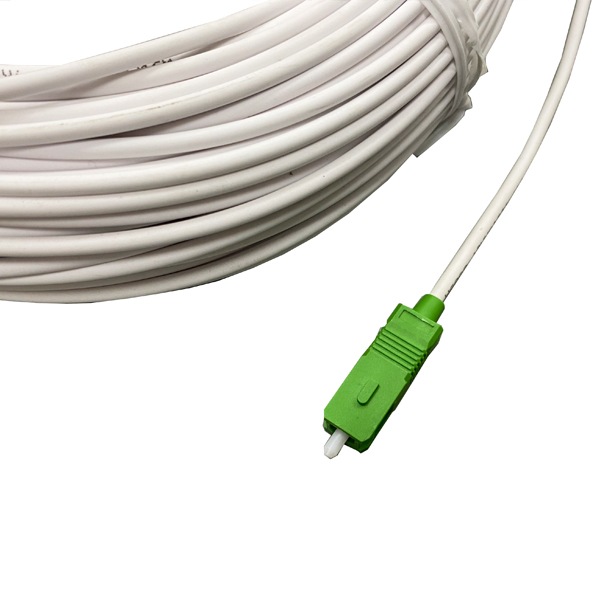

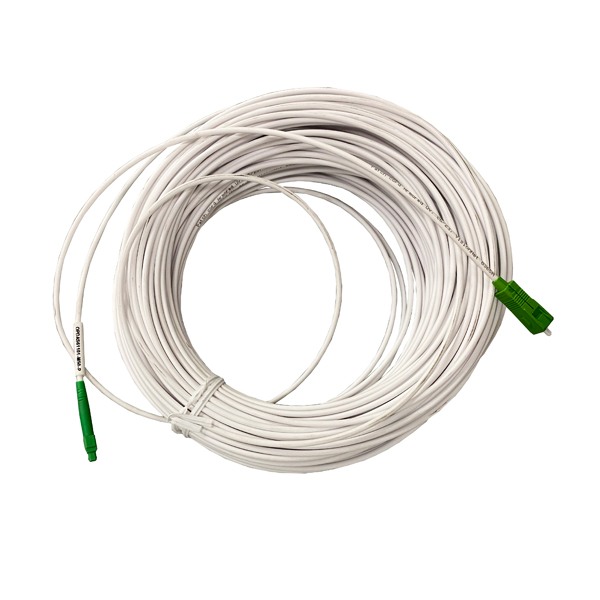

SC to LC Fiber Patch Cord Features
- Overall plastic shell, can be opened and assembled manually;
- Pushable connector with holes for duct, conduit, pipeline application;
- Good mechanical and environmental characteristics;
- Soft, flexible, solid, easy to splice, especially applied to optical long-distance, field, building wiring, trunking connectors;
- Flame retardant characteristics and the meet the requirements of relevant standards;
- Can be use for all kinds of optical connectors SC LC ST FC etc. ;
- Single mode fiber, multimode fiber both ok;
- Widely used in optical communication equipment rooms and optical distribution frames.
Specification
| Connector | SC/APC-SC/APC |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A1,G657A2,G657B3 |
| Cable jacket | LSZH |
| Cable type | Simplex Φ3mm |
| Polish manner | APC（8°） |
| Cable color | White |
| Fiber radius of curvature | ≥ 30 mm (G.652D); ≥ 15 mm (G.657A1) |
| Insertion Loss | ≤ 0.3dB (Standard) |
| Return Loss | APC ≥ 60dB (typ.65dB)–Single mode |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |

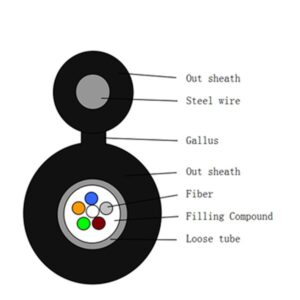

LC to SC Patch Cord Cable Specification
| Cable Type | GYXTC8Y | |
| Number of fiber | 2~12core | |
| Moisture Barrier | Water blocking system | |
| Central strength member | material | FRP |
| diameter | 1.4mm | |
| Mental strength member | material | Galvanized steel wire |
| diameter | 1.2 mm | |
| Loose tube | material | PBT |
| diameter | Ф2.0mm | |
| Cable filling | material | Cable filling compound |
| Outer sheath | material | PE |
| diameter | 1.70±0.2mm | |
