Adapter sc apc simplex single mode SM 9/125um

Description

SC APC Adapter Features

• Brand new plastic material, long time use
• 100% qualified test before delivery
• Low insertion loss, high precise ceramic sleeve simplex, duplex can be optional with different color
• Customer logo can be print
• Dust cap type can be customize

SC APC Adapter Specification

SC Adapter Details

Yingda provide all series of SC simplex adapters, with flange or without flange, one piece body or welding body, all ok. And all products undergo strict quality control and tested, only qualified 100% can be delivered.

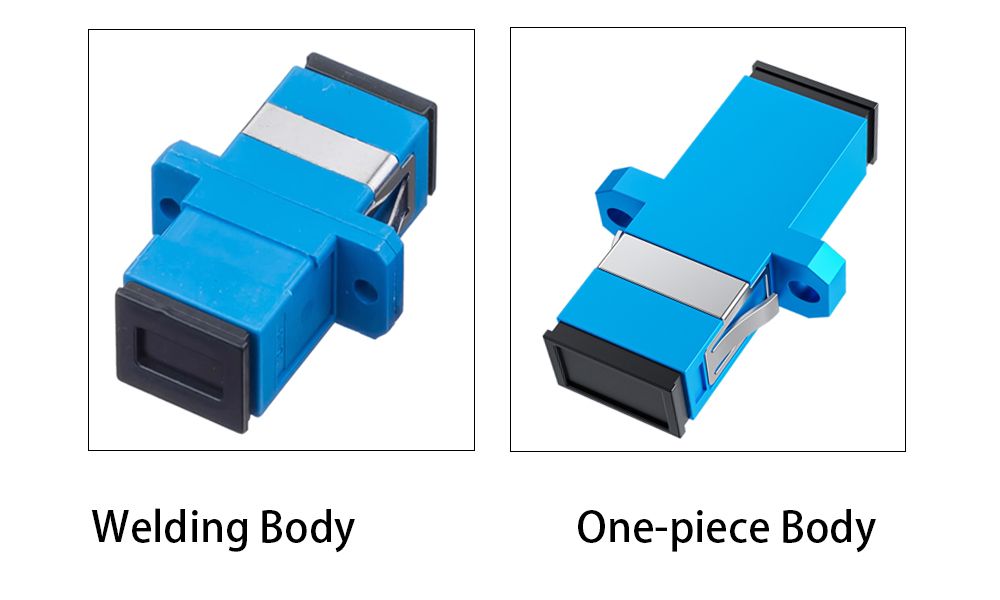

SC adapter main body can be welding type or one piece by plastic injection machine, the welding type is old design, which need the crimping machine to press both half couplers to be one set, while the one-piece body is an integrated injection molding machine, and no additional crimping process is required. It is faster and more efficient.

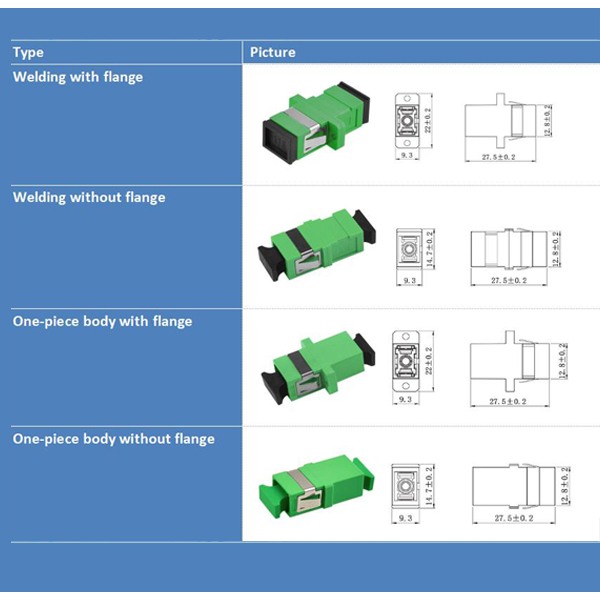

Except the body difference, SC adapter can be with flange or without flange. With flange, there is holes on both sides to hold the adapter into the adapter patch panel better with screws except the spring buckles at both sides,to avoid loose. However, there are fiber boxes are with limited space, should use sc adapter without flange, it is short ears at both sides.

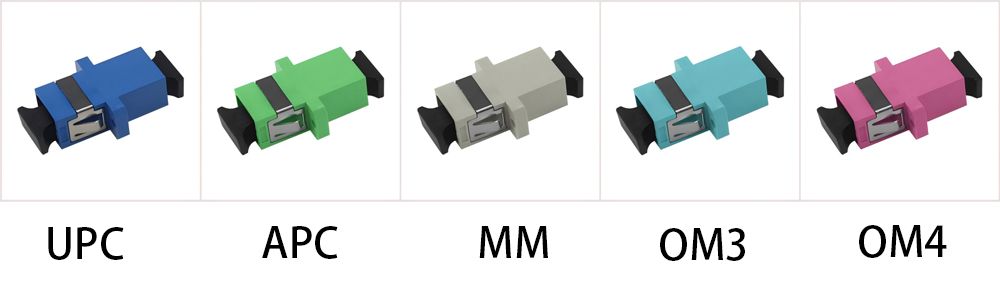

According to different fiber optic connectors with different fiber types, will make different color to make them uniform system. The color refer to international standard:

• single mode UPC:blue, APC:green
• multimode OM1 OM2: gray(beige), OM3:aqua, OM4: rose red (violet)

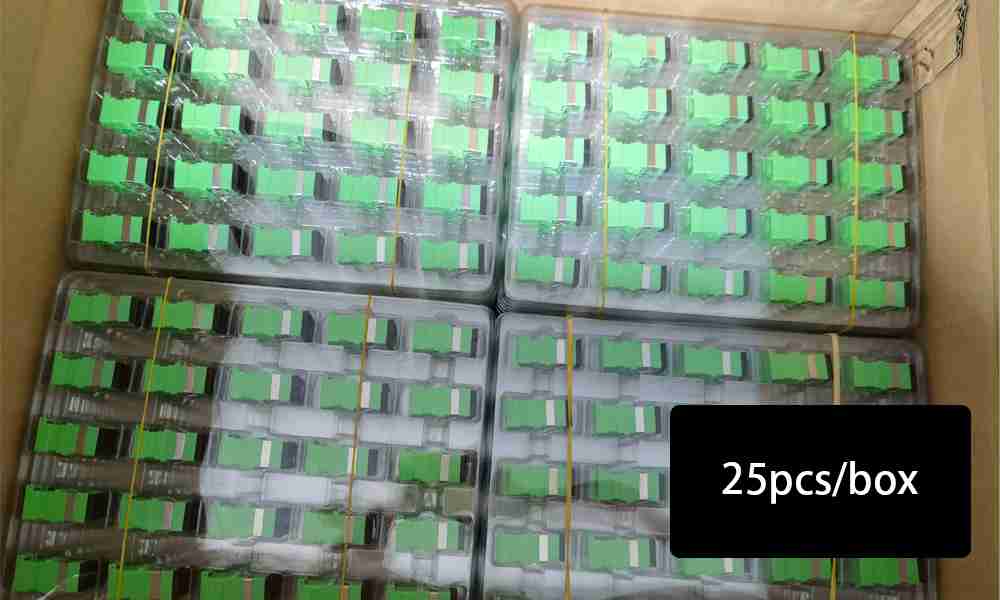

Yingda provide custom package for the sc adapters, it can blister box or plastic bag. If customer not specify, we will pack 25pcs/box, or 50pcs/box.

If customer need cost effective items, will use 1000pcs/bag, or others on customer request.

SC Adapter Order Information
