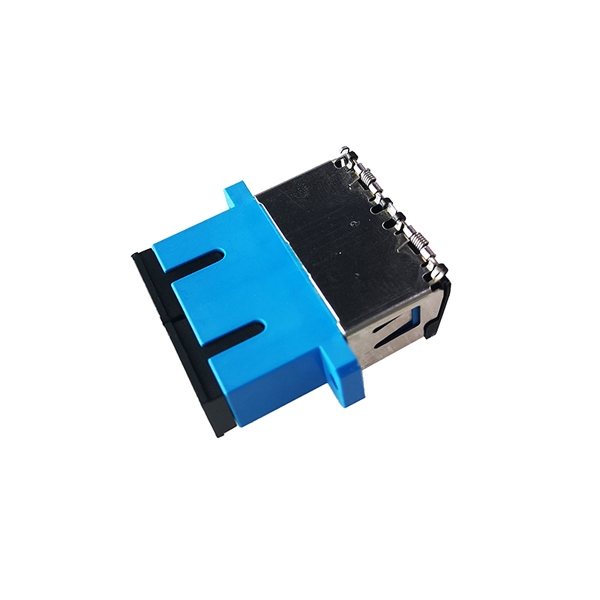

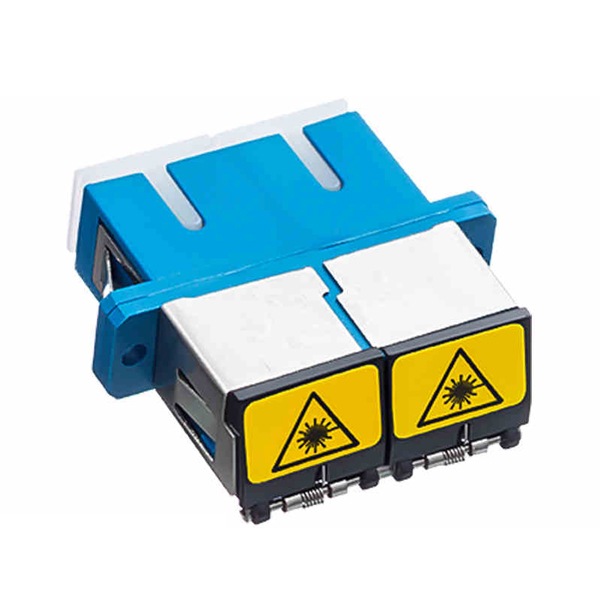

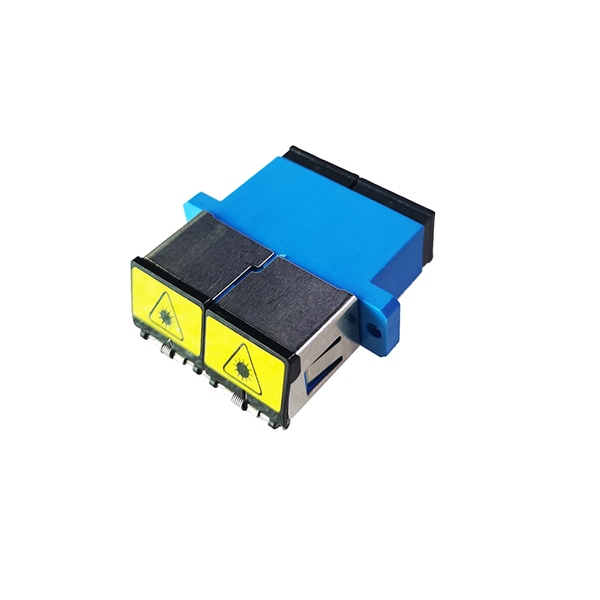

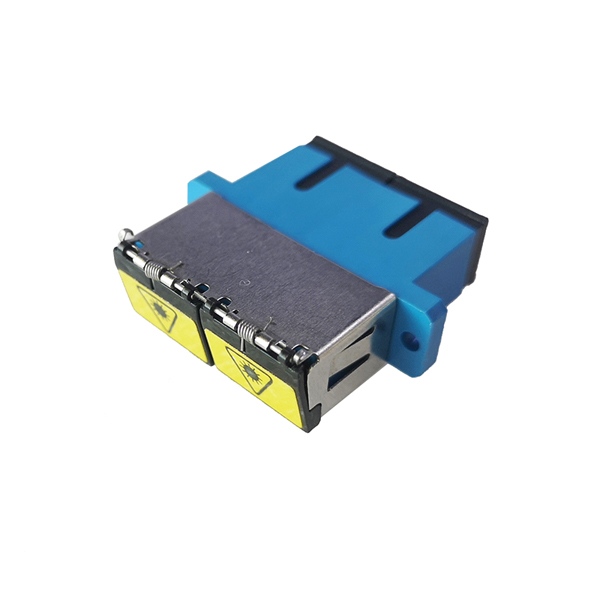

SC Duplex Adapter With Metal Cover and front shutter, dust-proof for fiber optic cable

The SC duplex adapter with metal cover is a common duplex adapter with 2 automatically closed rear dust caps, which can prevent dust and protect the fiber when the coupling port is not used. The SC duplex fiber optic adapter can precisely connect the two sections of the fiber, so that the light energy output by the transmitting fiber can be coupled to the receiving fiber to the maximum extent, and the impact on the system caused by its involvement in the optical link can be minimized.

Description

SC Duplex Adapter Features

  • Simplex 1 core 2.5mm ceramic ferrule
  • Automatically close after no use, dust-proof
  • Laser mark on shutter cover for reminding of the light
  • Blister box package for better protection
  • High quality ceramic sleeve, high precise and good quality
  • The body can be with flange to fix with screws or without flange for high density applications



SC Adapter Specification

ItemSC Adapter With Metal Cover
TypeUPC APC PC
Fiber countDuplex
Working wavelength1200-1600nm
Insertion loss≤0.2dB
Repeatability≤0.1dB
Interchangeability≤0.2dB
Sleeve materialCeramic
working temperature-40 ~+75℃
Storage temperature-40 ~+85℃
Mating times>1000
Temperature and humidity agingTemperature 85 ℃, 85% relative humidity, 14 days
Temperature cycleTemperature -40~+75℃, relative humidity of 10% -80%, 42 cycles, 14 days
Immersion in waterTemperature 43 ℃, pH 5.5, 7 days
VibrationAmplitude 1.52mm, frequency 10Hz-55Hz, 2 hours in each of the X, Y, and Z directions
StandardsYD/T 1272.1-2003
Package25 pcs / box
