Description

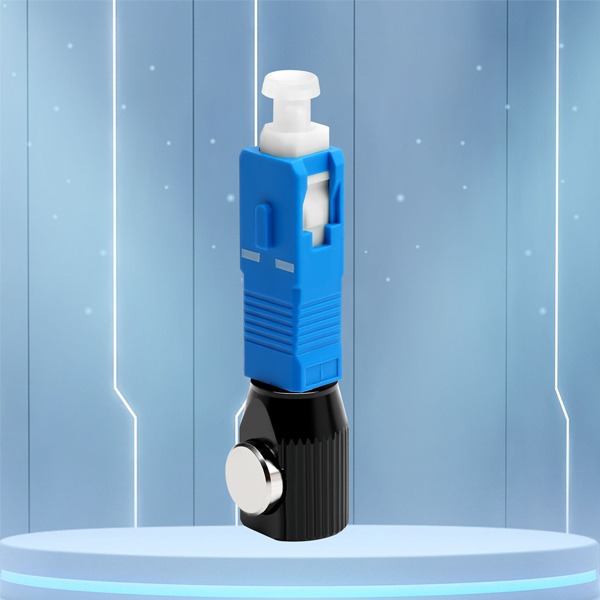

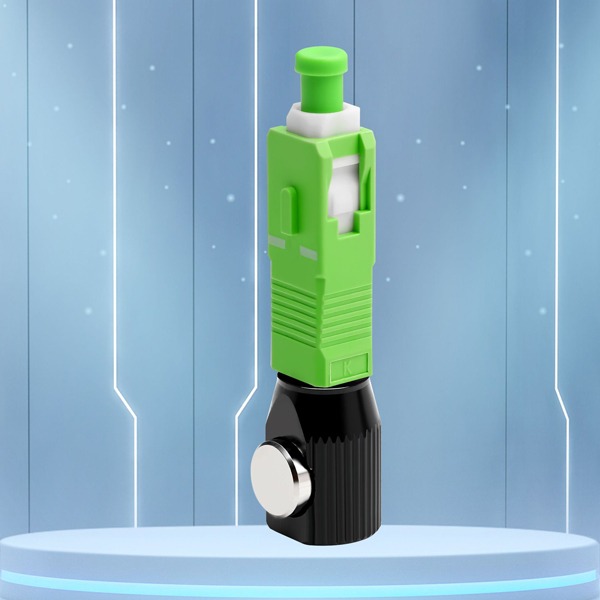

Bare Fiber Adapter SC Features
- Good repeatability, good wear resistance, and good temperature stability.
- The average additional loss value is less than 0.2dB, with high return loss and more than 1000 insertions and removals.
- Sufficient production capacity, 5S standardization, scientific management, and faster delivery while ensuring quality.
- 100% strict testing is conducted before leaving the factory to ensure that each product can be used normally.
- Advanced grinding equipment ensures fiber center offset.
- Substitute high temperature, acid, and alkali resistant cobalt oxide sleeves with excellent optical and mechanical properties.
- It can effectively suppress the noise of the grounding circuit, eliminate interference, and effectively isolate the signal field from the main control terminal electrically, avoiding accidental damage to the main control terminal.
- Various types of connectors such as SC LC ST FC SMA can be selected, including circular and square ones.
- Easy and intuitive operation, can be observed with the naked eye.
- Suitable for emergency repair and temporary splicing of optical fibers.
Bare Fiber SC Adapter Technical Specification
| Connector type | LC SC FC ST SMA |
| SConnector shape | Round |
| Applicable fiber cladding diameter | 125um ~127um |
| Insertion Loss | ≤0.2dB |
| Return loss | ≥55dB |
| Ferrule type | Ceramic |
| Wavelength | Single mode 1310,1550nm |
| Repeatability | ≤0.1dB |
| Changeability | ≤0.2dB |
| Mating time | ≥1000 times, loss change≤0.2dB |
| Working temperature | -40~+80℃ |
| Storage temperature | -55~+85℃ |
| Ambient humidity | 95RH |
| Package | 1pc/bag |
| Net weight | 12g |
