Description

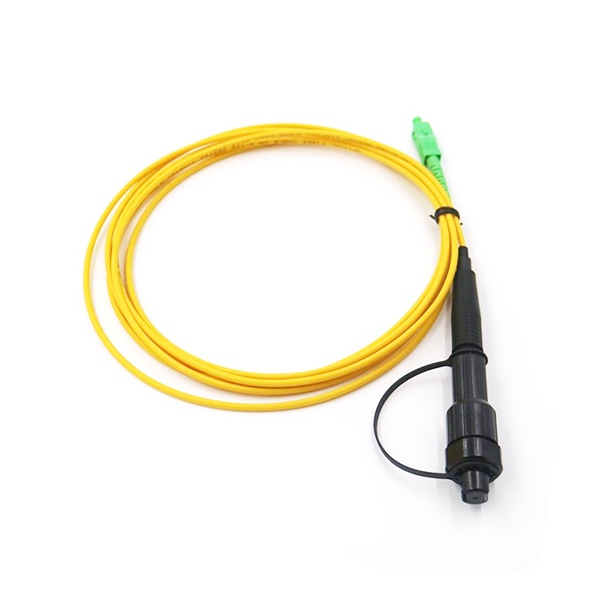

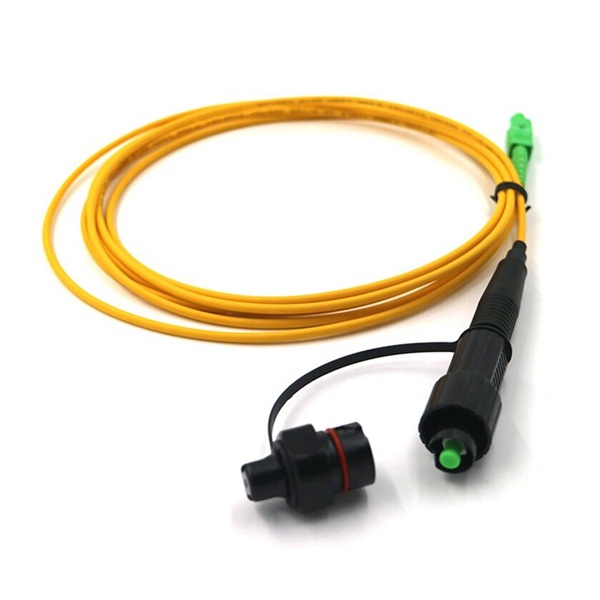

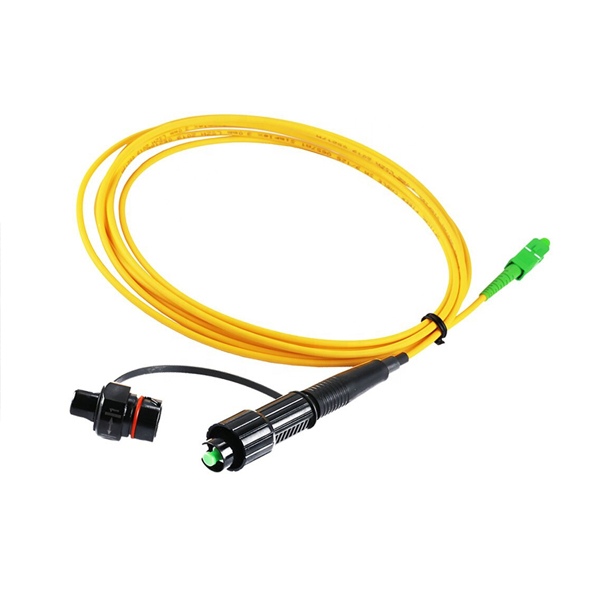

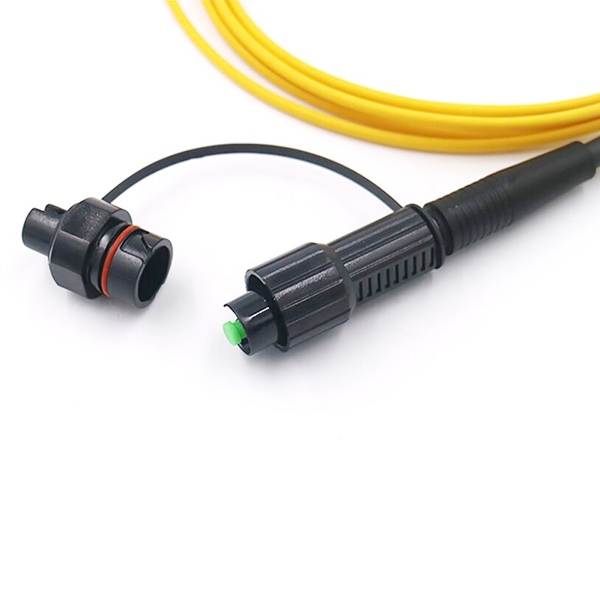

SC SC Single Mode Patch Cord Features
- Spiral clamping mechanism ensures long-term reliable connection
- Guide mechanism, can be blinded with one hand, simple and quick, connect and install
- Seal design: It is waterproof, dust-proof, anti-corrosion, anti-UVand so on
- Mechanical performance: IEC 61754-4 standard, material ROHS, REACH compliant.
- Compact size, easy to operate, durable
- Through the wall seal design
- Reduce welding, connect directly to achieve interconnection
SC SC Single Mode Patch Cord Application
- Fiber optic communications in harsh outdoor environments
- Outdoor communication equipment connection
- Huawei waterproof fiber equipment SC port
- Remote wireless base station
- FTTx wiring project

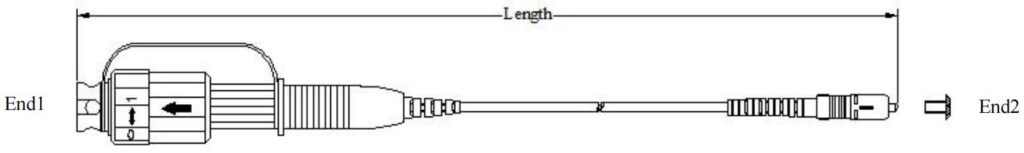

Patch Cord Strcutre

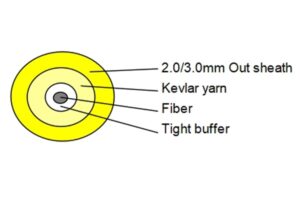

Indoor Soft Fiber Optic Cable GJFJV 3mm
| Cable count | Out sheath diameter (mm) | Weight(kg) | Min. Allowable tensile strength (N) | Min. Allowable crush load (N/100mm) | Min. Bending radius (mm) | Storage temperature(0C)
| |||
| Short term | Long term | Short term | Long term | Short term | Long term | ||||
| 1 | 3.0±0.1 | 6.5 | 450 | 200 | 500 | 100 | 20D | 10D | -20~+60 |
Optical Connector Characteristics
| Item | Single mode | Multi mode | Reference | ||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Typical ≤0.3dB Max. ≤0.7dB | Typical ≤0.15dB Max. ≤0.35dB | Typical ≤0.5dB Max. ≤0.25dB | Typical ≤0.10dB Max. ≤0.35dB | IEC61300-3-34 |
| Return loss | ≥50dB(PC) ≥60dB(APC) | ≥55dB(PC) ≥65dB(APC) | ≥30dB(PC) | ≥30dB(PC) | IEC61300-3-6 |
Single Mode Connector End-Face Geometry
| Item | UPC (Ref: IEC 61755-3-1) | APC (Ref: IEC 61755-3-2) |
| Radius of curvature (mm) | 10 to 25 | 5 to 12 |
| Fiber height (nm) | -100 to 100 | -100 to 100 |
| Apex offset (μm) | 0 to 50 | 0 to 50 |
| APC angle (°) | / | 8° ±0.2° |
| Key error (°) | / | 0.2° max |
Single Mode Connector End-Face Quality
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
