Description
1×32 Optical Splitter Features
- Applicable in the termination and 19” standard structure
- Cold rolled steel sheet SPCC, with electrostatic spraying, steel thickness 1.0mm,
- Front adapter plate with number mark, easy for operation
- Suitable for all kinds of interface like FC,SC,ST,LC,E2000, etc.
- Black, gray or white color available.
1×32 Optical Splitter order information
| Model | Split ratio | Dimension (mm) |
| FSM-102/SC | 1PC 1X2 SC | 482*250*1U |
| FSM-202/SC | 1PC 2X2 SC | 482*250*1U |
| FSM-104/SC | 1PC 1X4 SC | 482*250*1U |
| FSM-204/SC | 1PC 2X4 SC | 482*250*1U |
| FSM-108/SC | 1PC 1X8 SC | 482*250*1U |
| FSM-208/SC | 1PC 2X8 SC | 482*250*1U |
| FSM-116/SC | 1PC 1X16 SC | 482*250*1U |
| FSM-216/SC | 1PC 2X16 SC | 482*250*1U |
| FSM-132/SC | 1PC 1X32 SC | 482*250*1U |
| FSM-232/SC | 1PC 2X32 SC | 482*250*1U |
| FSM-164/SC | 1PC 1X64 SC | 482*250*2U |
| FSM-264/SC | 1PC 2X64 SC | 482*250*2U |
1×32 Optical Splitter Details

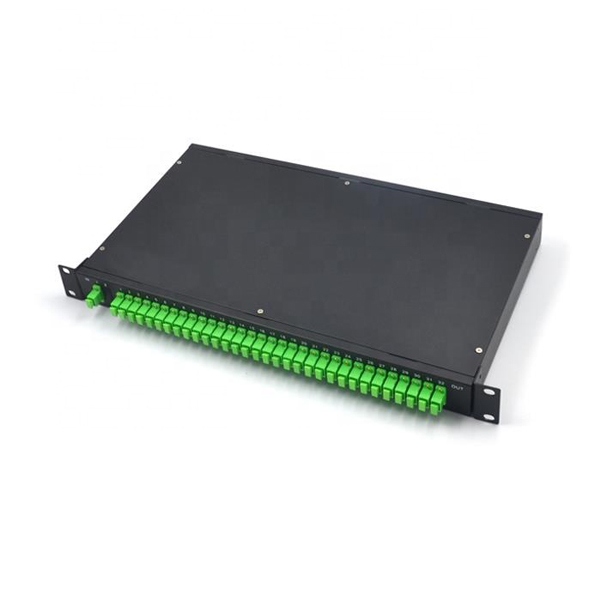

Optical Splitter 1×32 has a robust, rack-mountable metal enclosure. The black color of the enclosure not only gives it a professional appearance but also provides good protection against physical damage and electromagnetic interference.

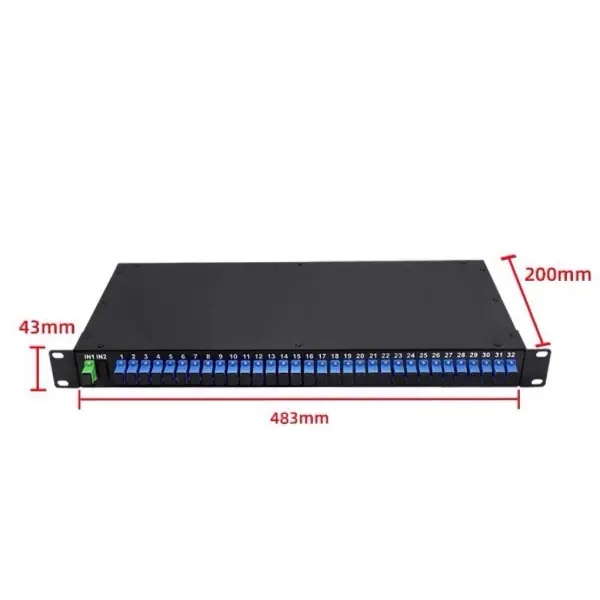

The dimensions are 483mm in length, 200mm in depth, and 43mm in height, conforming to standard 19-inch rack-mount specifications, which allows for easy integration into existing fiber optic network cabinets.

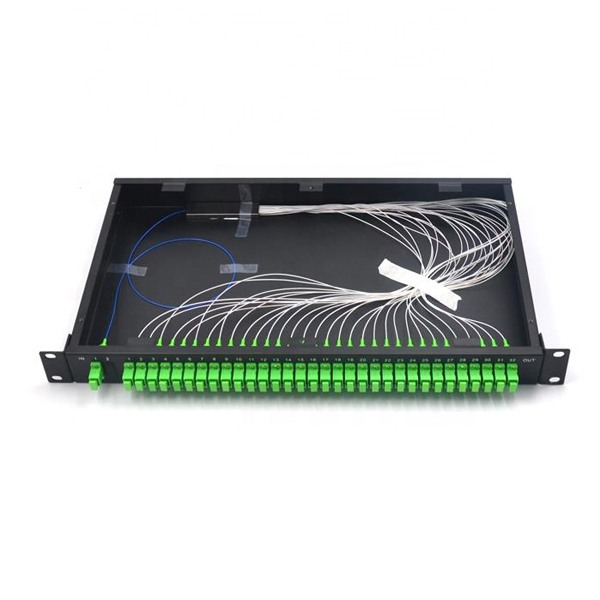

The internal wiring consists of neatly arranged optical fibers. The incoming optical signal at the input port is split into 32 separate output signals through a precise optical splitting mechanism. The fibers are carefully managed, with proper bundling and fixing to avoid signal loss due to bending or tangling. This internal design ensures uniform splitting of the optical power among the 32 output ports, which is crucial for maintaining consistent signal quality across all connected fiber optic links.

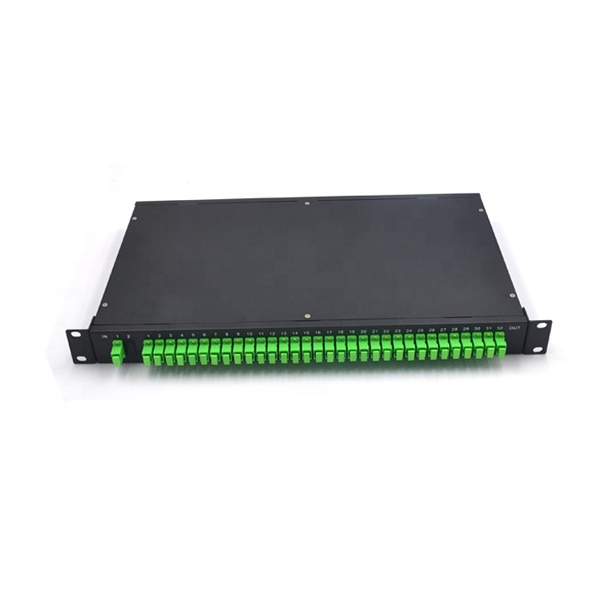

These SC/APC connectors ensure stable and low-loss optical connections. The green color helps in quick identification and proper port management during installation and maintenance.
