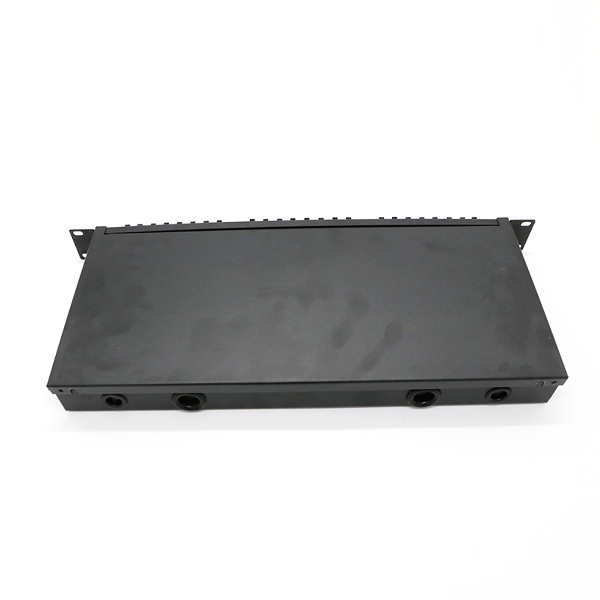

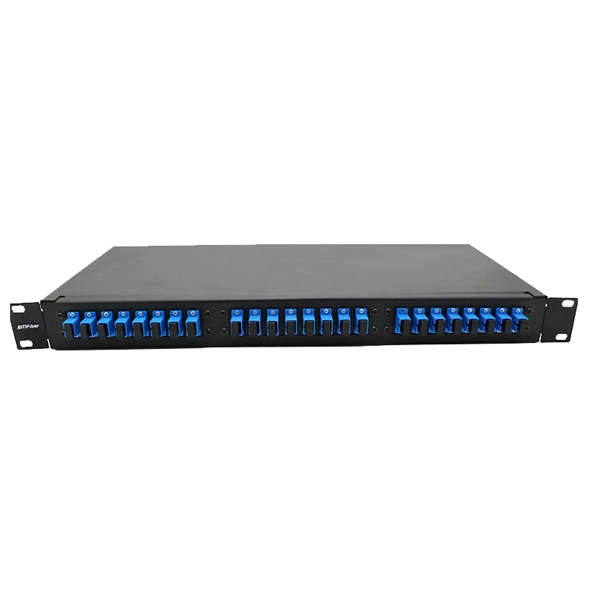

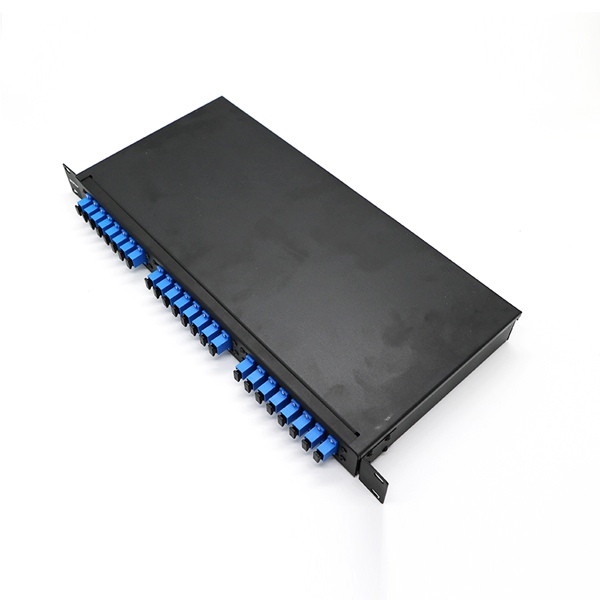

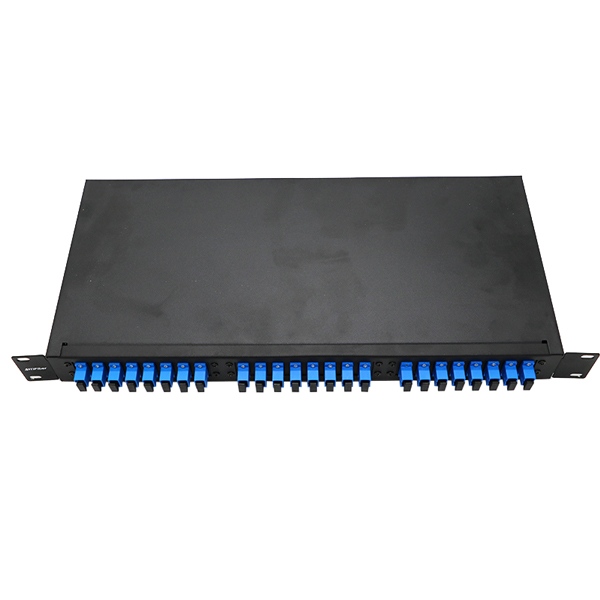

Rack Mount Fiber Patch Panel, ODF SC 24 Cores, 1U Metal Housing, for Data Centers

Slding Drawer Type Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical fiber transmission communication network, which is suitable for indoor optical cable splice directly and branch connection, and protective the fiber.

Description

Features

  • Applicable in the termination and 19” standard structure,
  • Metal sliding design
  • rack mount in optical distribution frame ODF
  • Suitable for FC,SC,ST,LC,E2000 adapters
  • Cold rolled steel sheet, with electrostatic spraying
  • Box size: 430*250*1U available,for cost save



Specification

Type Dimension

(mm)

Max capacity

(core)

Carton size

(mm)

Qty/

carton

(pc)

G.w

(kg)

GPSM-1U-SC12 430*300*1U 12 485*420*350 5 29
GPSM-1U-FC24 24 485*420*350 5 29
GPSM-1U-2SC24 48 485*420*350 5 29
GPSM-2U-FC48 430*300*2U 48 500*355*550 4 26.5
GPSM-4U 130*300*4U 192 500*350*540 1 18.9



Environmental requirements:

Not suitable outdoor use, if need to use, should take protective measures.

Working temperature: -25 to +40 °C

Storage temperature: -25 to +55 °C

Relative humidity: ≤85% (30°C)

Atmospheric pressure: 70 ~ 106kPa

Service life: 20 years
