Description

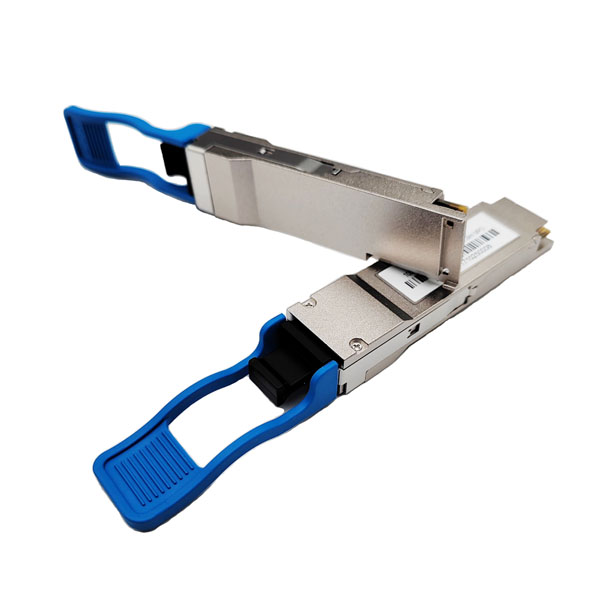

Features of 100G QSFP28 Transceiver
- Supports 103Gbps aggregate bit rates
- 78Gbps 1310nm DFB transmitter
- High-sensitivity PIN-TIA receiver
- Up to 2km on SMF
- Single MPO receptacles
- Hot pluggableQSFP28 form factor
- All-metal housing for superior EMI performance
- RoHS6 compliant (lead free)
- Operating case temperature: Commercial: 0ºC to +70°C
100G PSM4 SMA Application
- 100G Ethernet links
- InfiniBand QDR and DDR interconnects
- Data center and Enterprise networking
Transceiver Standards
- Compliant with QSFP28 MSA
- Compliant with SFF-8636
- Compatible with IEEE802.3bm 100GBASE PSM4
100G QSFP28 Transceiver Optical Parameters
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section | ||||||
| Lane Centre Wavelength (range) | λ | 1295 | 1310 | 1325 | nm | |
| Spectral Width (-20dB) | Δλ | 1 | nm | |||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||
| Average Optical Power per Lane | Pout | -5.5 | +2.0 | dBm | 1 | |
| OMA Power per Lane | OMA | -3.5 | 2.2 | dBm | 1 | |
| Laser Off Power per Lane | Poff | – | – | -30 | dBm | |
| Extinction Ratio | ER | 3.5 | – | – | dB | 2 |
| Transmitter Reflectance | RT | – | – | -12 | dB | |
| Optical Return Loss Tolerance | – | – | 20 | dB | ||
| Transmitter eye mask definition
{X1, X2, X3, Y1, Y2, Y3} |
{0.31, 0.4, 0.45, 0.34, 038, 0.4} | 2 | ||||
| Receiver Section | ||||||
| Lane Center Wavelength (range) | λ | 1295 | 1325 | nm | ||
| Average Receiver Power per Lane | RXPX | -10.2 | 2.0 | dBm | 3 | |
| OMA Sensitivity per Lane | RXsens1 | -9.0 | dBm | 3 | ||
| OMA Sensitivity per Lane | RXsens2 | -11.35 | dBm | 4 | ||
| Los Assert | LOSA | -30 | – | – | dBm | |
| Los Dessert | LOSD | – | – | -12 | dBm | |
| Los Hysteresis | LOSH | 0.5 | – | 5 | dB | |
| Overload per Lane | Pin-max | – | – | 2.0 | dBm | 3 |
| Receiver Reflectance | – | – | -12 | dB | ||
| Damage Threshold per Lane | – | – | 3.5 | dBm | ||
Mechanical Dimension
QSFP-40G-SR4 Ordering Information
| Part Number | Product Description |
| YDQ21H-P312LM2 | 100Gbps QSFP28 PSM4, 2km on SMF, MPO receptacle, 0ºC ~ +70ºC, With DDM. |
