Description
The MTRJ is collectively referred to as the MT series connector, and the MT series connectors are connected to the guide pins (also known as PIN pins) through two guide holes with a diameter of 0.7mm on the left and right sides of the plug end face. MT-RJ is generally a two core design, with a compact design that allows for a large number of cores and a small volume. It is widely used in environments that require high-density integrated fiber optic circuits during the wiring process, as well as in the internal connection applications of FTTX, 40G 100G SFP, SFP+ and other transceiver equipment.
Features of Fiber Optic Cable With MTRJ Connector
- MT-RJ connector can be male and female, easy to install, male is with pin, female with hole
- Using precision formed MTRJ ferrule
- Material meets UL 94V-0 standard
- Compliant with ROHS
- Precision guide needle design with extremely high alignment
- MTRJ patch cords complies with TIA, EIA, Telcodia, and IEC standards
Specification
| Connector type | MTRJ (MT-RJ) | |
| Cable diameter | ￠0.9mm、￠2.0mm、￠3.0mm | |
| Fiber type | Single mode, multi-mode | |
| Fiber count | 2 cores | |
| Insertion loss | SM≤0.20dB, MM≤0.30dB | |
| Return loss | SM PC≥40dB, MM–NA | |
| Working temperature | -40℃to +75℃ | |
| Mechanical performance | Insertion and removal times: 500 | <0.2dB change |
| Vibration test | Frequency range: 10-55Hz, 0.75 amplitude | <0.2dB change |
| Drop test
| Fall height; 1m, number of drops: 5 times | <0.2dB change |
| Cable tension | 90N | <0.2dB change |
| Optical cable torsion | 2.0-3.0 diameter optical cable: 1.5kg-2.5kg | <0.2dB change |
| High and low temperature test | -40 ℃ to+75 ℃, 12 cycles | <0.2dB change |
| Low temperature test | -40 ℃ for 96 hours | <0.2dB change |
| High temperature test | +70 ℃ for 96 hours | <0.2dB change |
Detailed Display of Fiber Optic Cable With MTRJ Connector

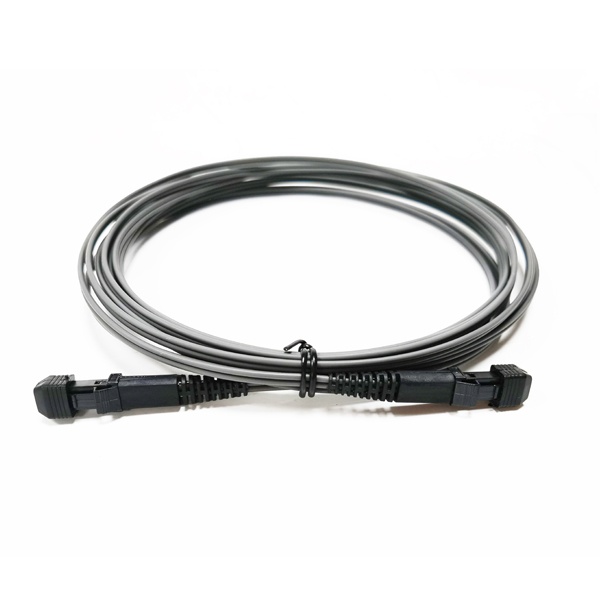

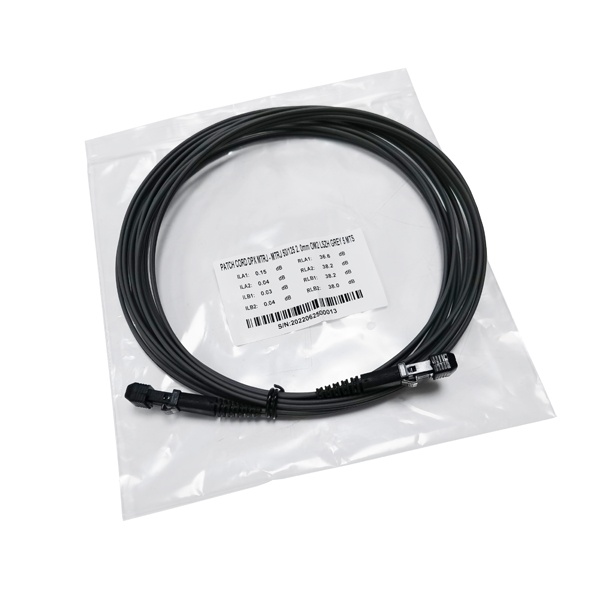

The cable is gray, flexible, and comes in a coiled form, which is convenient for storage and deployment. It is packaged in a transparent plastic bag, ensuring protection during transportation and storage.

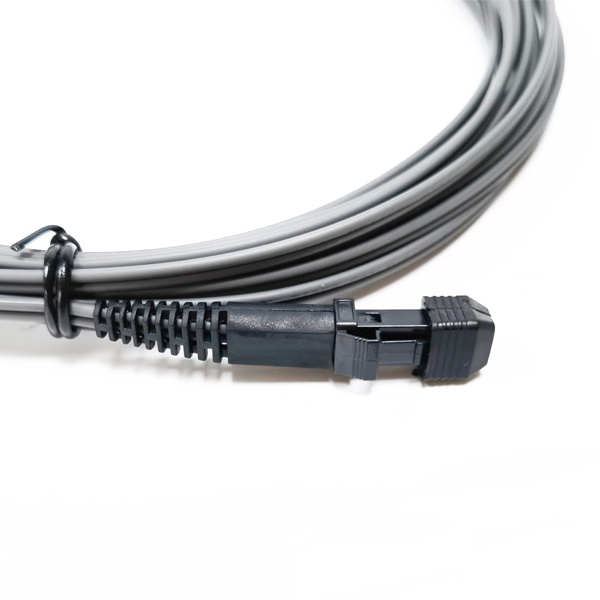

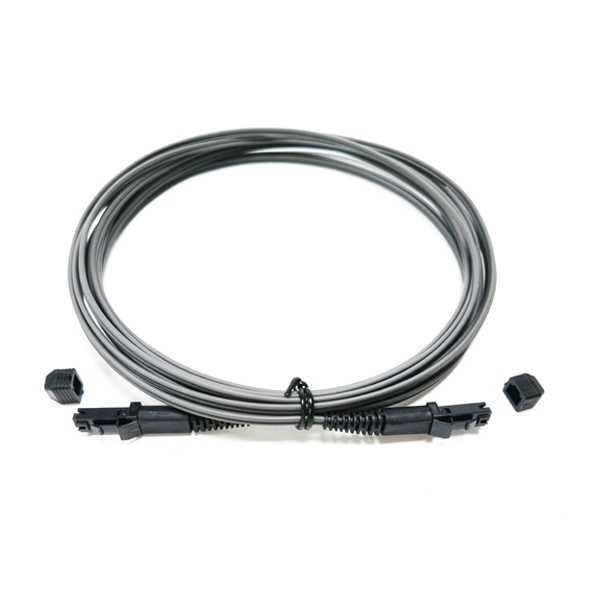

It is equipped with MTRJ connectors at both ends. The MTRJ connector is a small-form-factor (SFF) fiber optic connector, characterized by its compact design. The connectors are black, with a rectangular shape and a latch mechanism for secure connection. Each MTRJ connector is accompanied by a black dust cap, which is used to protect the connector ferrule from dust, dirt, and damage when the cable is not in use.
This type of fiber optic cable with MTRJ connectors is commonly used in high-density fiber optic environments, such as data centers, telecommunications networks, and enterprise networking, where space-saving and reliable fiber optic connections are required.
