Description
The indestructible handheld all plastic cable reel frame independently designed and developed by Yingda is very suitable for the rapid retraction and release of various long distance fiber optic cables. The support frame is made of imported high-strength polycarbonate (PC) injection molding, and the wire reel uses a high toughness composite material. It has an integrated handle and brake design, and is equipped with a detachable output shaft. It has the advantages of being lightweight, durable, resistant to pressure, impact, not easily deformed, resistant to oil stains, and resistant to ultraviolet rays.
This fiber optic cable reel car is designed for multiple deployments for field production in outside marine environment and port application, rental facilities and more. The highly flexible tight-buffered cable with internal spiral metal strength member for crush-resistance in high-traffic areas and a flexible metallic tube construction is designed to withstand crushing by outside vehicles.TPU, PE or LSZH outer jacket ensures insulation is made with materials that produce low limited smoke and non-toxic halogens when exposed to fire or high temperatures. All assemblies are multi-stage machine-polished.
Portable Cable Reel Car Features
- Broadcast deploy Cable on Reel
- Wide temperature range
- Excellent crush and impact resistance due to the polyurethane core-locked outer jacket
- Designed to withstand crush and impact after deployment.
- Strong, lightweight, and extremely durable cable
Portable Cable Reel Types
Yingda offer mainly 3 types of cable reel like below, different reel size with different length to meet different real project and cost budget.

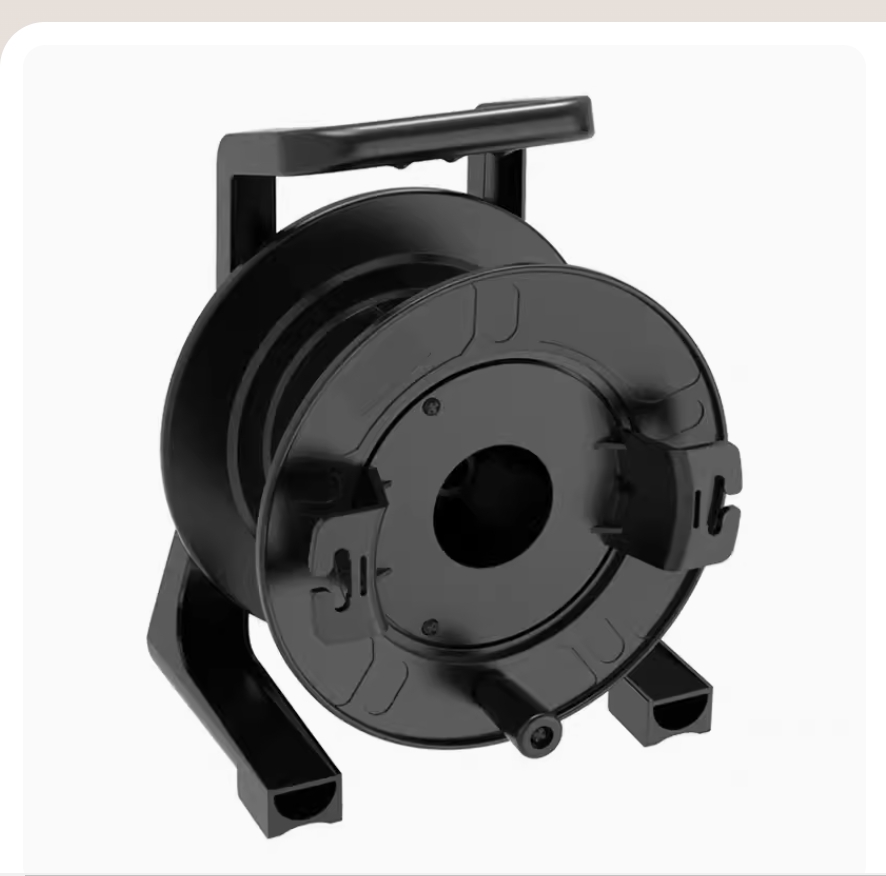

PCD235 Cable Reel (Ø 235mm Anti Drop Plastic Winding Coil With Winding Shaft)
Cable Length Reference with different outer diameters
| Cable diameter | Cable coil length |
| ∅3.0mm | 269m |
| ∅5.0mm | 97m |
| ∅6.0mm | 67m |
| ∅6.5mm | 57m |
| ∅7.0mm | 49m |
| ∅8.0mm | 38m |
PCD235 Cable Reel Drawing
PCD310 Cable Reel (Ø 310mm Anti Drop Plastic Winding Coil With Winding Shaft)
Cable Length Reference with different outer diameters
| Cable diameter | Cable coil length |
| ∅3.0mm | 628m |
| ∅5.0mm | 226m |
| ∅6.0mm | 157m |
| ∅6.5mm | 134m |
| ∅7.0mm | 115m |
| ∅8.0mm | 88m |
| ∅9.0mm | 70m |
| ∅10.0mm | 57m |
| ∅11.0mm | 47m |
| ∅14.0mm | 29m |
PCD310 Cable Reel Drawing
PCD380 Cable Reel (Ø 380mm Anti Drop Plastic Winding Coil With Winding Shaft)
Cable Length Reference with different outer diameters
| Cable Diameter | Cable Coil Length |
| ∅6.0mm | 304m |
| ∅7.0mm | 223m |
| ∅8.0mm | 171m |
| ∅9.0mm | 135m |
| ∅10.0mm | 109m |
| ∅11.0mm | 90m |
| ∅14.0mm | 56m |
| ∅15.0mm | 49m |
| ∅16.5mm | 40m |
| ∅18.0mm | 34m |
PCD380 Cable Reel Drawing
Optical Fiber Connector Parameters
| Connector | Unit | LC SC FC ST… | ||||
| SM | MM | |||||
| Fiber Diameter | um | 9/125 | 65.5/125 | 50/125 | ||
| Polishing | PC | UPC | APC | PC | PC | |
| Insertion Loss | dB | ≤0.2 | ≤0.15 | ≤0.2 | ≤0.1 | ≤0.1 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | – | – |
| Insert-pull Test | dB | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.15 | ≤0.15 |
| Interchangeability | dB | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.1 | ≤0.1 |
| Temperature Range | ℃ | -40~+80 | ||||
| Durability | times | ≥500 | ||||
| Tensile Strength | N | ≥90 (Φ3.0); ≥70 (Φ2.0) | ||||
