PON splitter 2×8 with ribbon bare fiber 250um, input and output 1.5m, multimode fiber splitter can be cusotmize

The PON Splitter 2×8 is designed to take optical signals from two input ports and split them into eight output ports. It operates within specific wavelength ranges suitable for PON systems, ensuring low insertion loss and high splitting uniformity. This allows for efficient distribution of optical signals in FTTH and similar network deployments, enabling multiple end-users to access high-speed data, voice, and video services.

SKU YDPLC-BM-208-NNNN Category Tags , Brand:

Description

PON Splitter 2×8 Features

  • Low Insertion loss
  • Low PDL
  • High Return Loss
  • Uniform Power Splitting
  • Compact Design
  • Wide Operating Wavelength
  • Wide Operating Temperature
  • Excellent Environmental & Mechanical Stability
  • Qualified Under Telcordia GR-1221 and GR-1209



PON Splitter 2×8 Specification

Split ratio 2×8
Operating Wavelength (nm) 1260-1650nm
Fiber Type G657A1 or customer specified
Insertion Loss (dB)S Grade 11
Insertion Loss (dB) P Grade 10.8
Loss Uniformity(dB) 1.2
PDL(dB) 0.3
Return Loss (dB) 55
Directivity (dB) 55
Wavelength Dependent Loss(dB) 1.2
Operating Temperature -40- +85℃



Details of PON Splitter 2×8

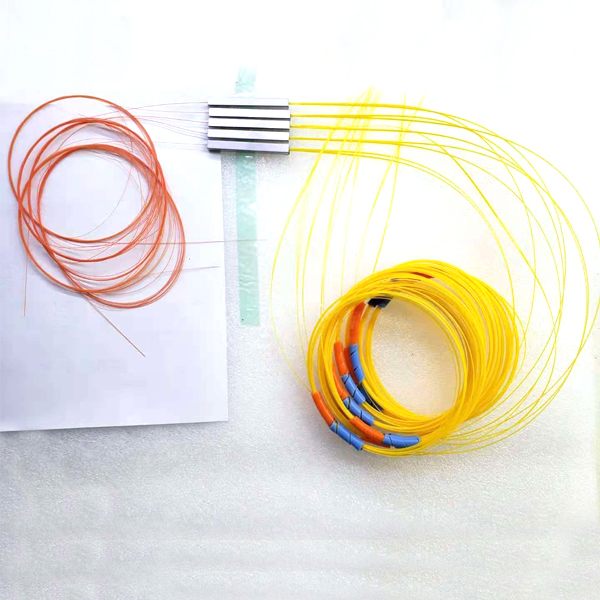

The central part of the product is a rectangular, multi-layered metal enclosure. This enclosure safeguards the internal planar lightwave circuit (PLC) structure, which is crucial for splitting optical signals. The enclosure protects the delicate internal components from physical damage, dust, and moisture, ensuring the stable operation of the splitter.

pon splitter 2x8 with ribbon bare fiber 250um, input and output 1.5m, multimode fiber splitter can be cusotmize

There are two input fibers, distinguishable by their orange-sheathed coating. These fibers are responsible for carrying incoming optical signals into the splitter module. The orange color helps technicians quickly identify the input ports during installation and maintenance.

Eight output fibers, covered with yellow-sheathed coating, extend from the other side of the splitter module. These fibers distribute the split optical signals to various destinations within the PON network. Additionally, blue and orange plastic wraps are used to organize and manage the output fibers. These wraps prevent the fibers from tangling, provide strain relief at the connection points, and make it easier to route the fibers neatly in fiber optic enclosures or distribution boxes.
